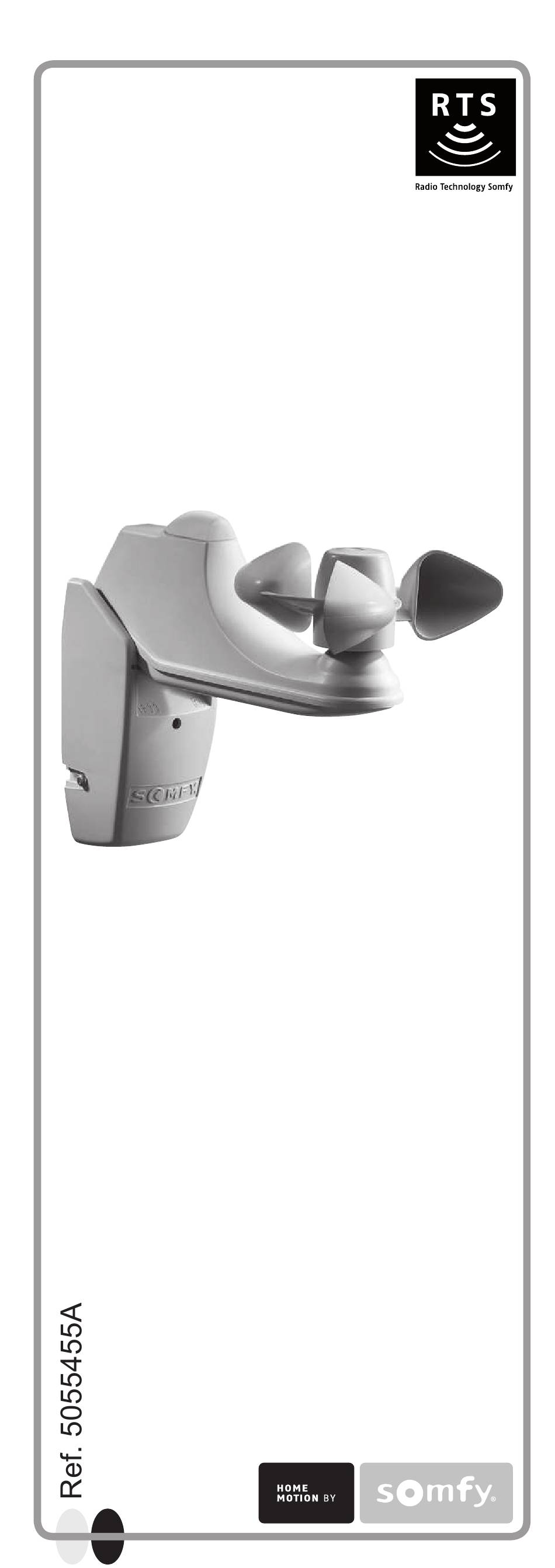

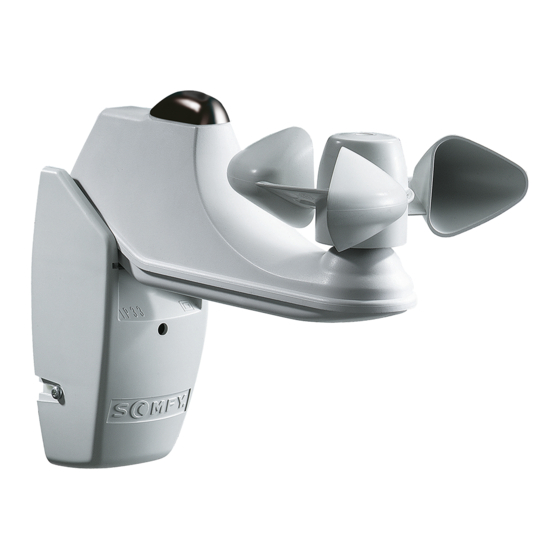

- Page 1 Eolis Sensor RTS Soliris Sensor RTS EN - Installation instructions ES - Guía de instalación PT - Guia de instalação EL - Οδηγό̋ εγκατάσταση̋...
- Page 3 PROG. PROG.
- Page 4 2 min.
- Page 5 15-30 min. 12 min. PROG. PROG. PROG. PROG.
- Page 6 2. Safety - Important information 2.1 General information Before installing and using the product, please read the installation guide carefully. This Somfy product must be installed by a professional motorisation installer, for whom these instructions are intended. Never begin installing without first checking the compatibility of this product with the asso- ciated equipment and accessories.
-
Page 7: Tools Required
centre to ensure they are recycled correctly. 3. Contents of the kit and tools required 3.1 Contents of the kit Before beginning installation and commissio- ning of the sensor, check that all parts listed in the table below are present in the correct quantity (Q): Components 1 Eolis RTS Sensor or Soliris RTS Sensor... - Page 8 Install the sensor near the product which it controls. Never install the sensor under an awning or under artificial lighting. Caution: The articulated structure of the Eolis RTS sensor enables it to be mounted on walls or roofs with an incline of up to 15°. Always fit the sensor with the anemometer (a) on top! See Picture B...
- Page 9 6. Commissioning 6.1 Recording the sensor Find an RTS control point (A) programmed in the motor. Press the PROG button on the RTS control point (A) until the motor makes an up and down movement: The programming function is activated for ►...
- Page 10 the Green LED (c) is permanently lit red: The wind sensor’s sensitivity threshold ► is set according to the current level of wind. Caution: • Wind LED off: the sensitivity threshold set has not been reached, the wind is blowing below the set threshold: the awning does not move.
-
Page 11: Use And Operation
6.4 Setting the sun sensitivity threshold The sensitivity threshold setting can be changed according to the actual weather conditions and requirements. Turn the Sun potentiometer until the Sun LED (h) is permanently lit green: The sun sensor’s sensitivity threshold is set ►... - Page 12 The Wind LED is off, ► The Sun LED is permanently lit green, ► The sensor will automatically lower the awning ► after 2 minutes, or The awning can be controlled manually using ► the remote control. See Picture K ►...
-
Page 13: Tips And Recommendations
sensitivity threshold set: The Wind LED remains off, ► The Sun LED goes off, ► The sensor will automatically raise the awning ► after a delay of 15 to 30 minutes, or The awning can be controlled manually using ► the remote control. - Page 14 Possible Problems Solutions causes External radio Turn off all radio equipment equipment nearby. is interfering with the radio reception (e.g. Hi-Fi radio headphones) On the remote The Sun func- The awning does not react tion cannot be control, activate the when the Sun function - refer activated using...
-
Page 15: Technical Specifications
movement to indicate that the sensor (B) is deleted from the motor. See Picture N ► 8.3 Deleting all the sensors. Find an RTS control point (A) programmed in the motor. Press the PROG button on the RTS control point (A) until the motor makes an up and down movement: The programming function is activated for ►...
