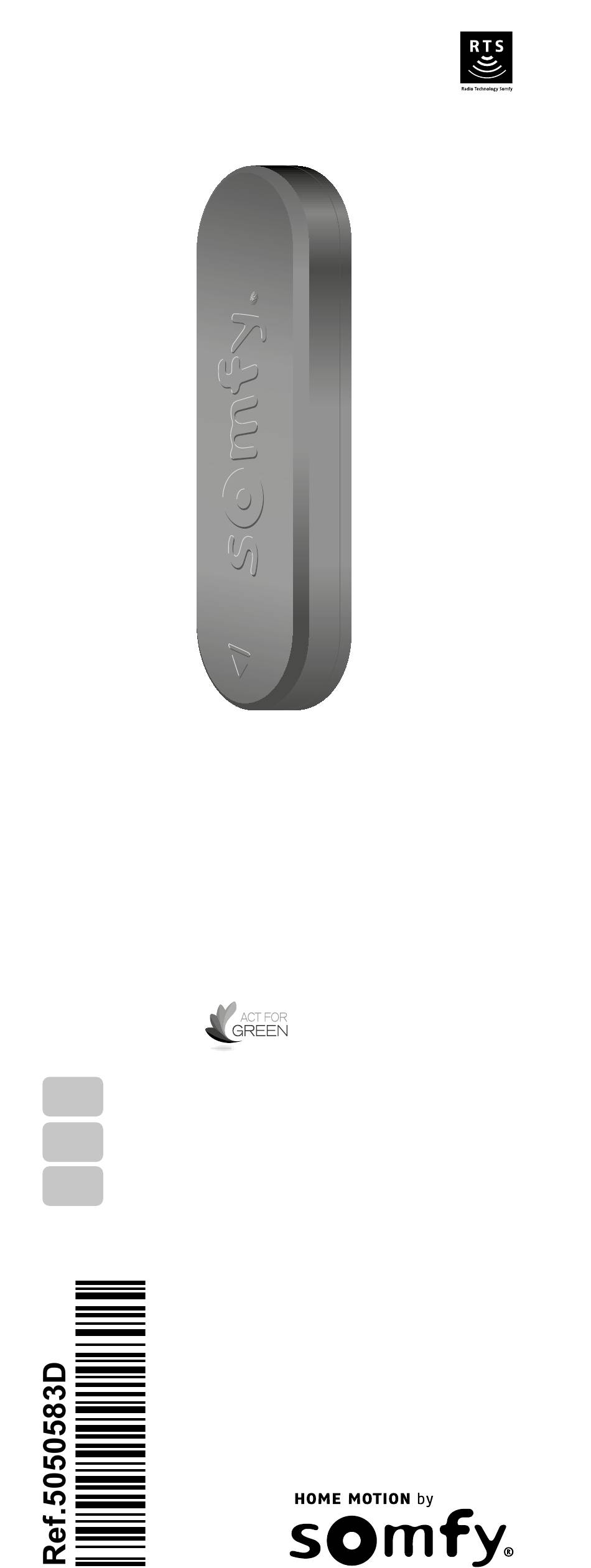

- Page 1 w ww.s om f y. co m Eolis 3D Wirefree™ RTS For Awnings Notice Installateur Installationsanleitung Installer Manual...
- Page 2 Any use outside the fi PROG. 0.5 s patio awnings. The Eolis 3D WireFree RTS is of application specified by Somfy is forbidden. T compatible with the current range of RTS motors, G.
- Page 3 überschreiten, fährt die Markise automatisch ein. sur le store pour simuler le vent et provoquer la remontée du - das Einfahren der Markise zu verhindern. lée, Somfy conseille de désactiver la fonction « Soleil » 6.3. Individueller Grenzwert Le capteur régulière...
- Page 4 Données techniques Technische Daten Technical data Bandes de fréquence et Frequenzband und maximale Frequency range and max Puissance maximale utilisée: leistung: power used: 433,050 MHz - 434,790 MHz 433.050 MHz - 434.790 MHz 433.050 MHz - 434.790 MHz e.r.p. < 10 mW ou e.r.p. < 63 µW e.r.p.
- Page 5 The Eolis 3D WireFree™ RTS is designed only for roller, encased or cassette type folding arm patio awnings. The Eolis 3D WireFree RTS is compatible with the current range of RTS motors, RTS remote controls and RTS Somfy sensors.
- Page 6 Any use outside the field of application specified by Somfy is forbidden. This invalidates the warranty and discharges Somfy of all liability, as does any failure to comply with the instructions given herein.
- Page 7 3. Contents Figure A Description Eolis 3D WireFree™ RTS Bracket Double-sided adhesive AAA (LR03) 1.5 V batteries 4. Eolis 3D RTS in detail Figure B e. Casing f. Sensor g. Bracket h. Potentiometer i. Red indicator light j. Green indicator light k.
- Page 8 The adhesive supplied is only to be used for this operation. Always use the adhe- sive provided by Somfy. The use of any other adhesive is prohibited. Choose a location on the inner or outer face of the front bar. The surface must be flat and suitable for the bracket to be attaches.
- Page 9 2 x ø 4 mm countersunk screws, or 2 x ø 4 mm pop rivets, or 2 Somfy mounting accessories (fixings not supplied). Choose a location on the inner or outer face of the front bar. If the position is on the inner face of the front...
- Page 10 battery level is insufficient. Leave the sensor open to continue the set up. 6. Set up Figure B After set up, make sure that the threshold set enables the awning to be raised. The Eolis 3D WireFree™ RTS will only ...
- Page 11 This setting corresponds to vibration detection of the awning according to pre-set values. This sensitivity is sufficient to provide protection for the majority of applications. Setting “Pre-defined threshold” Figure H Set the potentiometer (h) to the required threshold using a flat blade screwdriver: Threshold 1: light vibration will trigger the retraction of the awning.
- Page 12 After the threshold is set, the sensor will switch to demonstration mode for the first two cycles. This mode enables users to easily modify the selected setting. Pressing the STOP/My button once will stop the awning retracting and allow the user to modify the sensitivity threshold by manually shaking the awning.
- Page 13 If the Eolis 3D is connected to a sun sensor and the sun comes out, then the awning will extend after 12 mins. On gusty, sunny days, Somfy recommends that the «Sun» function be deactivated to better protect your awning.
- Page 14 8. Additional settings 8.1. Battery replacement Figure F When the batteries are replaced, the sensor settings will remain memorised. Never use rechargeable batteries for the Eolis 3D sensor! Remove the sensor (f) / cover assembly (e) from the bracket (g) and follow the procedure in section 5.4. “Fitting the batteries”. Refit the sensor (f) in the cover (e) and slide the assembly onto the bracket (g) until it reaches the stop.
- Page 15 9. Tips and recommendations 9.1. Questions on the Eolis 3D? Possible Observations Solutions causes None of the LEDs The batteries Check the direction in which come on after the are incorrectly the batteries are inserted into batteries are fitted. fitted. the sensor.
- Page 16 Possible Observations Solutions causes External radio The awning does equipment Turn off all radio equipment not automatically is interfering retract when the nearby. with the radio wind increases. reception The batteries Replace the sensor batteries, are low. see section 8.1. The sensor Engage the sensor in the is incorrectly...
- Page 17 Veiller à séparer les piles et batteries des autres types de déchets et à les recycler via votre système local de collecte. Die Batterien und Akkus von den restlichen Haushaltsabfällen trennen und entsprechend den geltenden Vorschriften im Handel oder den kommunalen Sammelstellen entsorgen. Ensure batteries are separated from other types of waste and are recycled via your local recycling centre.
- Page 18 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: - this device may not cause harmful interference, and - this device must accept any interference received, inclu- ding interference that may cause undesired operation. Warning ! Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate...
- Page 19 SOMFY ACTIVITES SA, 50 avenue du Nouveau Monde FRANCE-74300 CLUSES www.somfy.com Copyright © 2015 - 2016 SOMFY ACTIVITES SA. All rights reserved. SOMFY ACTIVITES SA, capital 35.000.000 Euros, RCS Annecy 303.970.230...
