Kohler Components EX28096K-4 Installation Instructions

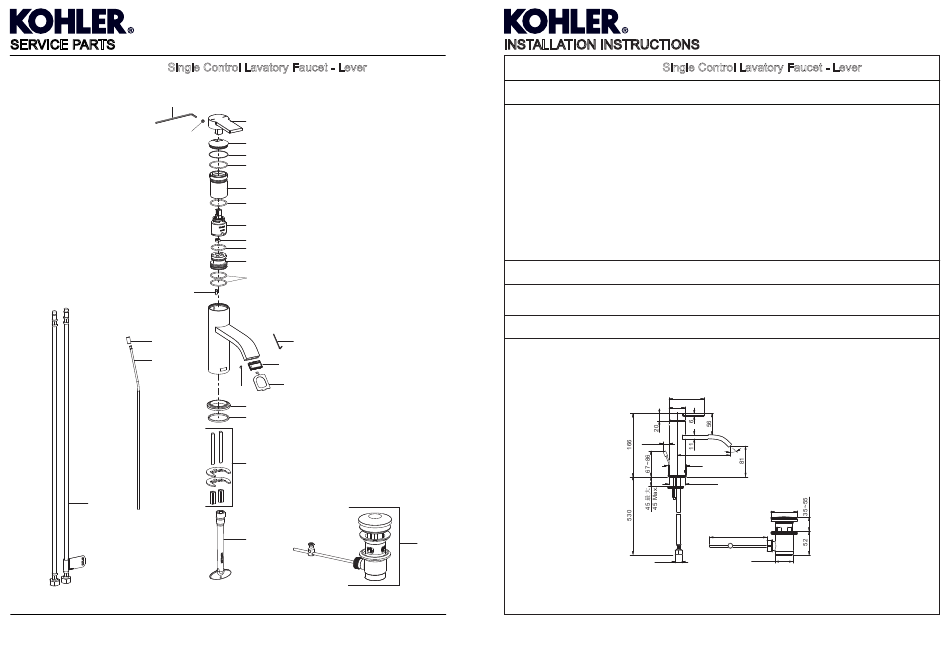

SERVICE PARTS
EX28096K-4
Single Control Lavatory Faucet - Lever
833730
1249005
1258880
1477827**
3002558
3009021
**Color code must be specified when ordering.
1483418-H2-A
COMPONENTS
1477834**
1477840**
1477841
65874
1477842
1483414
1292073
1151264
1167318
1477843
1016869
1115710
1483463
1115726
1115706
1477826**
3016159
834704
1228834
INSTALLATION INSTRUCTIONS
EX28096K-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves the
right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. If possible, install this faucet before installing the lavatory.
3. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
837056**
4
1483418-H2-A
COMPONENTS
Single Control Lavatory Faucet - Lever
93
Ø42
15~24
46°
140
Ø48
Ø32~Ø38
Ø63
146
G3/8˝ G1˝ 1/4
1
