Metra Electronics 99-7510 Installation Instructions Manual

Mazda rx-8 2004-08
Hide thumbs

Advertisement

Table of Contents

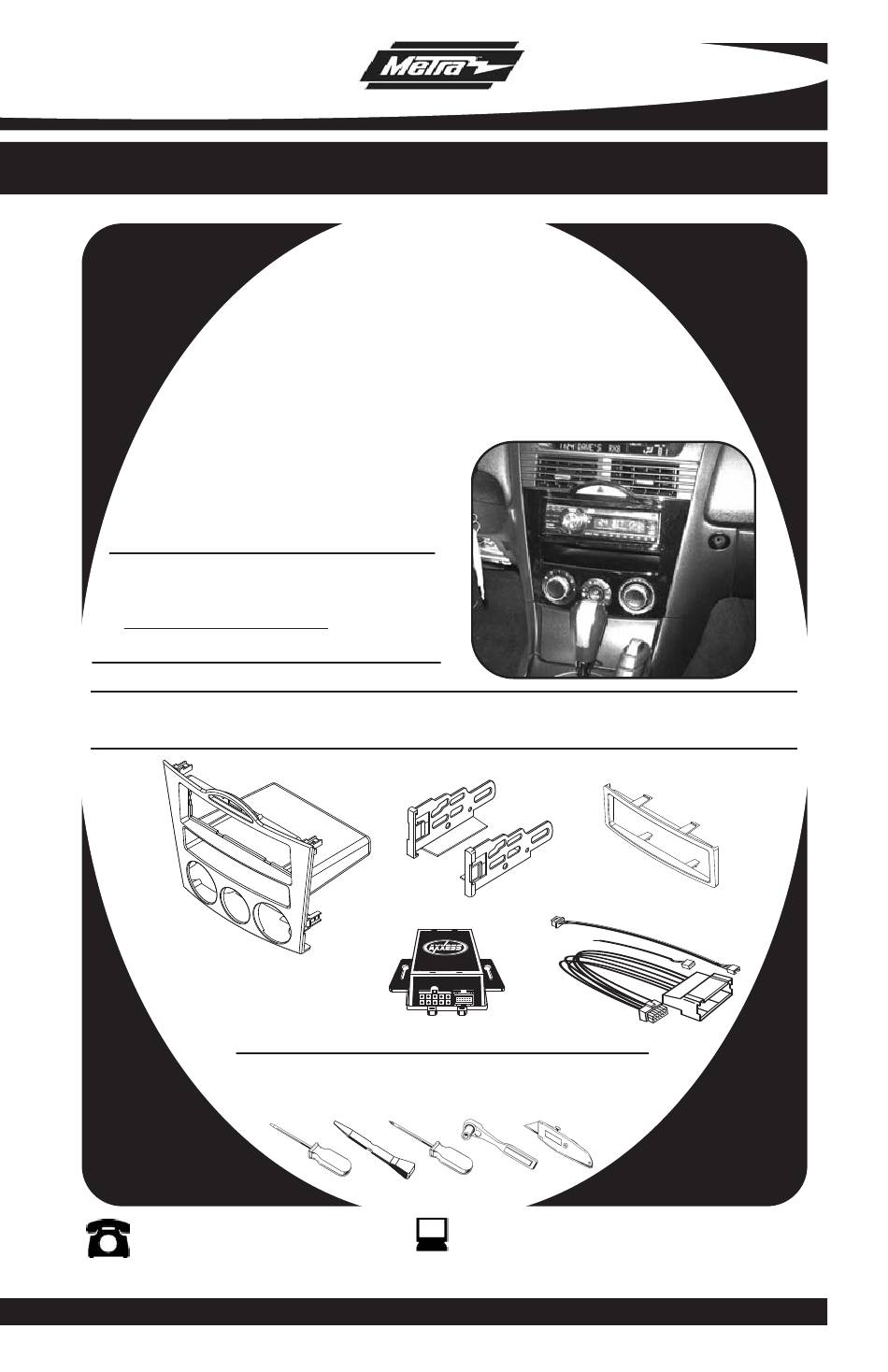

INSTALLATION INSTRUCTIONS FOR PART 99-7510
99-7510/
99-7510HG
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• TWO FINISHES AVAILABLE:
99-7510=BLACK, 99-7510HG=GLOSS BLACK
KIT COMPONENTS
• A) Radio / Climate Control Housing • B) ISO Brackets • C) ISO Trim Plate
• D) Interface • E) Wiring Harnesses
A
1-800-221-0932
© COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION
APPLICATIONS
Mazda RX-8 2004-08
B
D
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set • Cutting Tool
C
E
www.metraonline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-7510 and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 99-7510

Summary of Contents for Metra Electronics 99-7510

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7510 APPLICATIONS Mazda RX-8 2004-08 99-7510/ 99-7510HG KIT FEATURES • DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket • TWO FINISHES AVAILABLE: 99-7510=BLACK, 99-7510HG=GLOSS BLACK KIT COMPONENTS • A) Radio / Climate Control Housing • B) ISO Brackets • C) ISO Trim Plate •...

  • Page 2: Table Of Contents

    99-7510 T ABLE OF CONTENTS Dash Disassembly - Mazda RX-8 2004-2008 ......1,2,3 Kit Preparation ......... . . 4 Kit Assembly - DIN Radio Provision with Pocket .

  • Page 3: Mazda Rx-8 2004-2008

    99-7510 DASH DISASSEMBL Y MAZDA RX-8 2004-2008 Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unscrew the shift knob counter clock- wise to remove. (Figure A) Unclip and remove the shifter trim panel. (Figure B) Remove (2) Phillips screws from the bottom of the ashtray assembly then unclip and remove the assembly.

  • Page 4: Kit Assembly

    99-7510 DASH DISASSEMBL Y MAZDA RX-8 2004-2008 Remove (2) Phillips screws from the bottom of the radio/climate control panel. (Figure F) Unsnap radio/climate control panel including radio chassis. Unplug and remove panel and chassis. (Figure G) Remove (3) Phillips screws securing the factory display harness to the radio chassis.
  • Page 5 Unplug and remove hazard switch. (Retain the screws and hazard switch for re-use during kit assem- bly.) (Figure L) 13 Trim the sub dash to allow clearance REMOVE (2) SCREWS PER SIDE for the 99-7510 interface. (Figure M) Continue to kit assembly.
  • Page 6 99-7510 KIT PREPARATION MAZDA RX-8 2004-2008 Note: Refer also to the instructions included with the aftermarket radio. Cut the top (2) mounting locations off of the climate controls to provide clearance for the aftermarket radio. (Figure A) Secure the climate control to the...

  • Page 7: Din Radio Provision With Pocket

    99-7510 KIT ASSEMBL Y DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio/Climate Control Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place.

  • Page 8: Final Assembly

    99-7510 FINAL ASSEMBL Y FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape 1 Locate the factory wiring harness in the dash. Use the supplied wire harnesses and make the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit).
  • Page 9 99-7510 FINAL ASSEMBL Y Continued from Page 6 WARNING! FAILURE TO INSERT THE HVAC CABLES INTO THE CORRECT LOCATION WILL CAUSE DAMAGE TO THE INTERFACE AND MAKE THE DISPLA Y AND HVAC CONTROLS NOT FUNCTION PROPERL Y Plug the Temperature Control cable from the factory climate control into the port on the interface that reads “TEMP”.
  • Page 10 99-7510 FINAL ASSEMBL Y Continued from Page 7 OBDII CONNECTOR FACE VIEW PINK WIRE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 BLUE/PINK WIRE When using the Nav features of the interface you will need to connect the 2 pin harness and run the 2 wires to the OBDII connector and connect them in the position shown.

  • Page 11: Display Customization

    OPEN TILT 99-7510 DISPLAY OPTIMIZATION DISPLAY CUSTOMIZATION Note: Refer also to the instructions included with the aftermarket radio. OPEN TILT MODE Press and hold the A/C Mode button to scroll through the various kit options (AMB TEMP ON or OFF, AMB TEMP C or F, SET TIME 12/24H, and SET TEXT).
  • Page 12 99-7510 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 10/23/08 © COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION INST99-7510...
