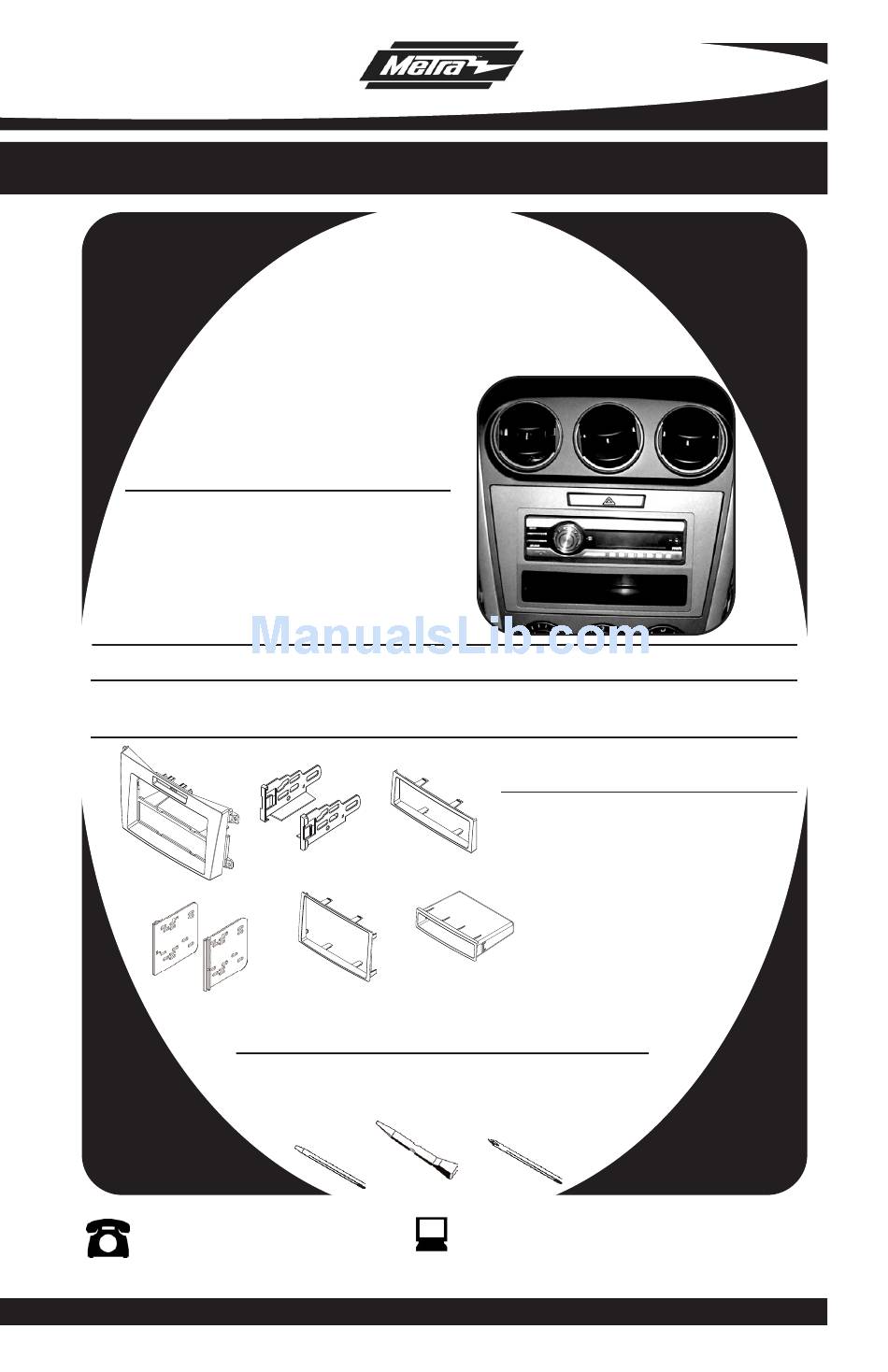

INSTALLATION INSTRUCTIONS FOR PART 99-7508
Mazda CX7 2007-09
99-7508
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Mount Radio Provision
• Stacked ISO Mount Units Provision
• Painted Matte Black to Match Factory

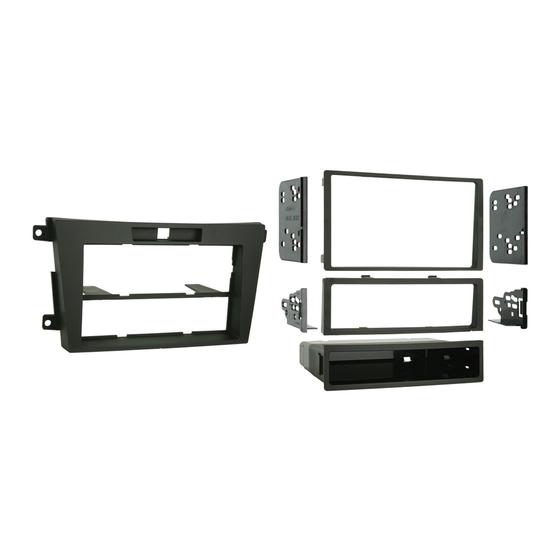

KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
A
D
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
C
B
F
E
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
Wiring & Antenna Connections (sold separately)
• 70-7903T - Mazda Service Harness 07-up
www.metraonline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAZDA CX7 2007-09 99-7508 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metra Electronics MAZDA CX7 2007-09 99-7508

  • Page 1 • A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets • E) Double DIN Trim Plate • F) Pocket Small Flat Blade Screwdriver/ Panel Removal Tool 1-800-221-0932 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION APPLICATIONS Wiring & Antenna Connections (sold separately) • 70-7903T - Mazda Service Harness 07-up TOOLS REQUIRED: •...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Dash Disassembly - Mazda CX7 2007 -2009....... 1 Kit Preparation .
  • Page 3: Mazda Cx7 2007-2009

    MAZDA CX7 2007-2009 Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the trim panel sur- rounding the radio and climate con- trols. (Figure A) Remove (4) Phillips screws securing the radio. Unplug and remove radio. (Figure B) Remove (2) Phillips screws securing the hazard switch to the factory radio...
  • Page 4: Kit Assembly

    99-7508 KIT PREPARATION MAZDA CX7 2007-2009 1 Secure the hazard switch into the 99-7508 radio housing using the factory hardware. Continue to kit assembly...
  • Page 5: Din Radio Provision With Pocket

    99-7508 KIT ASSEMBLY DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the DIN cage until it snaps into place.
  • Page 6: Iso Mount Radio Provision With Pocket

    ISO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio using the screws supplied with the radio. (Figure A) Slide the radio into the radio housing until it snaps into place.
  • Page 7: Double Din Radio Provision

    STACKED ISO MOUNT UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. Cut and remove the center bar from the Radio Housing. (Figure A) Snap the Double DIN brackets to the inside edge of the Radio Housing. (Figure B) Slide the Double DIN or stacked ISO mount units into the bracket/radio...
  • Page 8: Final Assembly

    FINAL ASSEMBLY Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation. Reassemble radio and dash assemblies in reverse order of disassembly.
  • Page 9 99-7508 NOTES...
  • Page 10 99-7508 NOTES...
  • Page 11 99-7508 NOTES...
  • Page 12 99-7508 INSTRUCTIONS 1-800-221-0932 www.metraonline.com Rev. 04/21/10 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION NST99-7508...
