6

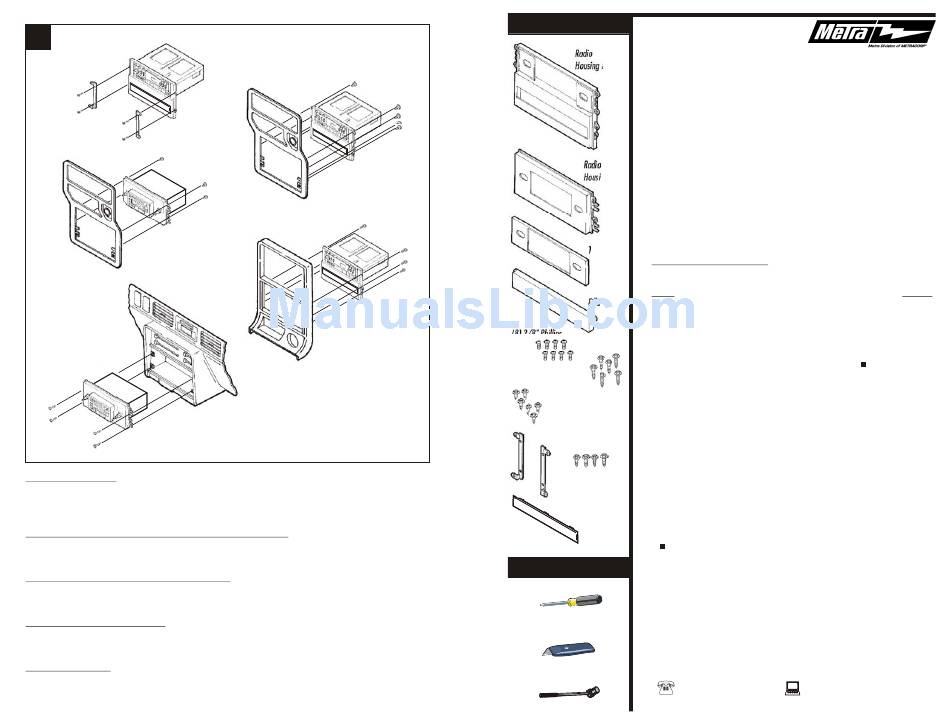

Fig. A
Fig. B
Fig. D
B-SERIES PICKUP: Re-connect the battery terminal and test the unit for proper operation.
Mount Bracket Set #1 to the Housing with (4) ½" Hex-head Screws supplied. Mount the
head unit/kit assembly to the back of the dash trim bezel with (4) screws removed in step #1
and re-attach the bezel. (see Fig. A)
323 1986-89, 626 / MX6 (models using Radio Housing #2): Re-connect the battery terminal
and test the unit for proper operation. Mount the head unit/kit assembly to the back of the dash
trim bezel with (4) 3/8" Phillips Screws supplied and re-attach the bezel. (see Fig. B)
626 / MX6 (models using Radio Housing #1: Re-connect the battery terminal and test the
unit for proper operation. Mount the head unit/kit assembly to the back of the dash trim bezel
with (8) 3/8" Phillips Screws supplied and re-attach the bezel. (see Fig. C)
323 1990-94, MPV, PROTEGE: Re-connect the battery terminal and test the unit for proper
operation. Mount the head unit/kit assembly to the sub-dash with (4) ¾" Hex-head Screws
supplied. (see Fig. D)
929, MIATA, RX-7: Re-connect the battery terminal and test the unit for proper operation.
Mount the head unit/kit assembly to the back of the dash trim bezel with (6) 3/8" Hex-head
Screws supplied and re-attach the bezel. (see Fig. E)
7
Fig. C
Fig. E
rev. 300801
KIT COMPONENTS
Radio
Housing #1
99-7500
DW-7501
INSTALLATION
Radio
Housing #2
INSTRUCTIONS
Trimplate
APPLICATIONS
CAR
Filler Bar
MAZDA
323 1986-89*...............................................................................1
(8) 3/8" Phillips
323 1990-94*...............................................................................1
Screws
626 (models w/factory receiver/tape deck/eq/pocket) 1986-92....2
626 (models w/factory receiver/pocket) 1986-92* ...................... 2
(6) ¾" Hex-head Screws
929 1988-91.................................................................................3
B-Series Pickup 1986-93................................................................3
(6) 3/8" Hex-head Screws
Miata 1990-99.............................................................................. 4
MPV 1989-95*.............................................................................. 4
(4) ½" Hex-head
MX6 (models w/factory receiver/tape deck/eq/pocket) 1986-92... 2
Screws
MX6 (models w/factory receiver/pocket) 1986-92*....................... 2
Protege 1990-94*......................................................................... 1
RX-7 1986-91............................................................................... 5
Bracket Set #1
Equalizer
Dummy
* For aftermarket DIN head unit installations, order Metra's 99-7501
Plate
For models with pockets 3¾" or taller, order Metra' s 99-7501
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
1-800-221-0932
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
Socket wrench
INST 7500
PAGE
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 99-7500
Summary of Contents for Metra Electronics 99-7500
-
Page 1: Installation Instructions
Dummy * For aftermarket DIN head unit installations, order Metra's 99-7501 Plate For models with pockets 3¾" or taller, order Metra' s 99-7501 Phillips screwdriver Cutting tool 1-800-221-0932 © COPYRIGHT 2001 METRA ELECTRONICS CORPORATION Socket wrench INST 7500 PAGE www.metraonline.com... - Page 2 MAZDA 323 1986-89 "E" Disconnect the negative battery terminal to Cut and remove all mounting tabs on Radio prevent an accidental short circuit. Remove Housing #2 EXCEPT tabs "E". the ashtray and (2) screws exposed in the mounting tabs can be identified by the ashtray cavity.
- Page 3 MAZDA RX-7 1986-91 Disconnect the negative battery terminal to Cut and remove all mounting tabs on Radio prevent an accidental short circuit. Remove the ashtray and (2) screws exposed in the Housing #1 EXCEPT tabs "A". mounting tabs can be identified by the ashtray cavity.
- Page 4 MAZDA 929 1988-91 Disconnect the negative battery terminal to Cut and remove all mounting tabs on Radio prevent an accidental short circuit. Reach Housing #1 EXCEPT tabs "A". behind the console and remove (2) nuts mounting tabs can be identified by the supporting the head unit carrier.
