Delta Ultron IPT Series User Manual

Delta Ultron IPT Series User Manual

Three-phase, 380/ 400/ 415 vac 40/ 50/ 100/ 120 kva
Hide thumbs

Advertisement

Quick Links

Download this manual
The power behind competitiveness
Delta UPS Ultron Family
IPT Series, Three-Phase, 380/ 400/ 415 Vac
40/ 50/ 100/ 120 kVA
User Manual
www.deltaww.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultron IPT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Ultron IPT Series

Summary of Contents for Delta Ultron IPT Series

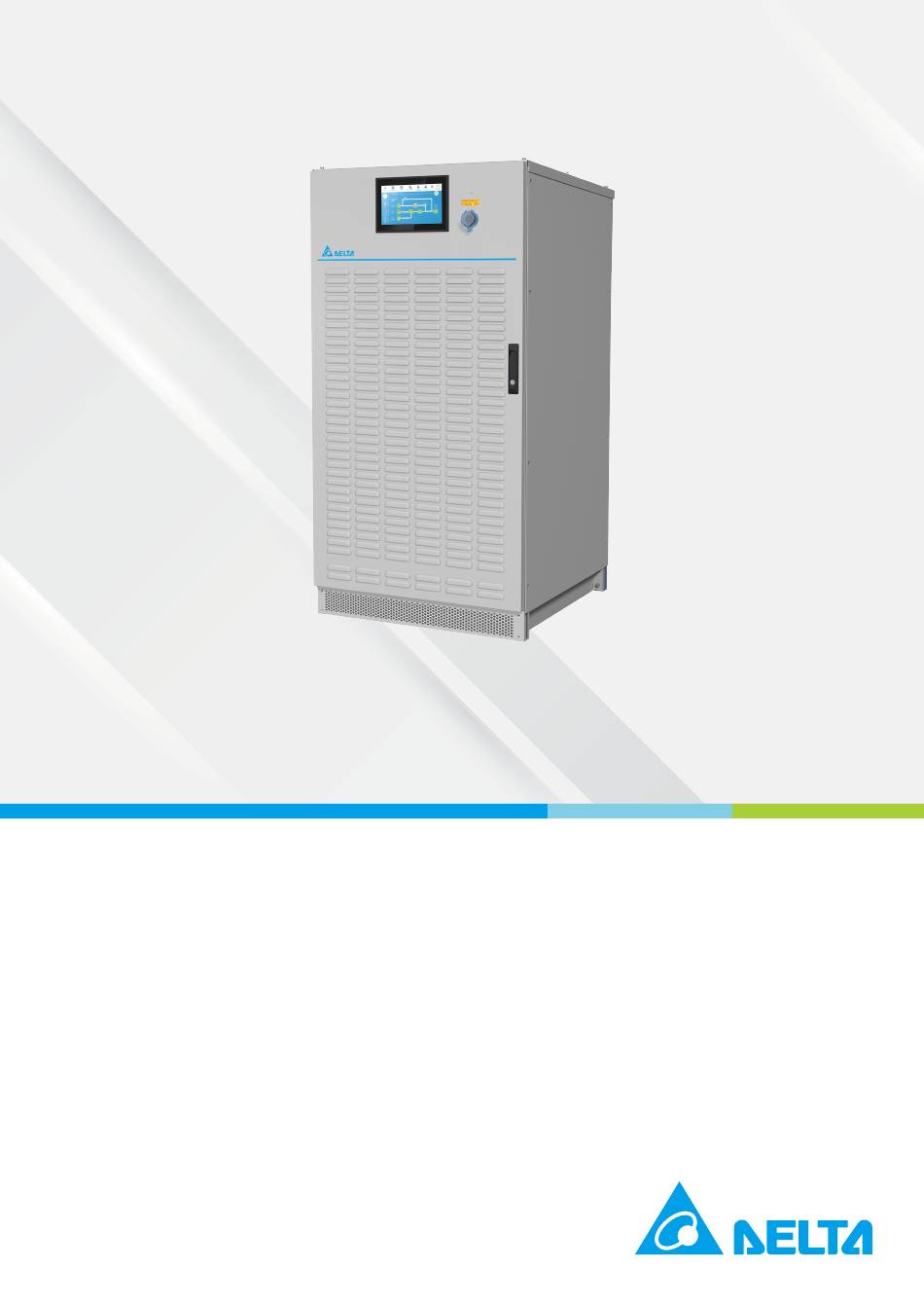

  • Page 1 The power behind competitiveness Delta UPS Ultron Family IPT Series, Three-Phase, 380/ 400/ 415 Vac 40/ 50/ 100/ 120 kVA User Manual www.deltaww.com...
