OPERATOR'S MANUAL - DRAFT
AutoElite Thrombectomy System Console
DEVICE DESCRIPTION
The AutoElite Thrombectomy System (AutoElite System or System) allows for percutaneous removal of
thrombus located in peripheral arteries and veins, saphenous vein bypass grafts, native coronary arteries,
and native or synthetic AV access conduits. Thrombectomy is accomplished using high-pressure saline
jets contained in the catheter shaft. The saline jets create a low-pressure effect to draw thrombus into the
catheter, fragment the thrombus, and remove the thrombus from the treatment site. An additional feature
includes injection of physician-specified fluid using the Power Pulse technique for specific Thrombectomy
Sets. The AngioJet System consists of a single-use Thrombectomy Set (several models available) and a
free-standing mobile Console.
AutoElite Thrombectomy System Console (AutoElite Console or Console)
The Console is a multiple-use device that controls the Thrombectomy Set. It drives the pump, regulates
fluid inflow and outflow, and provides the operator with System setup prompts, total run time, total infused
fluid volume, and System malfunction information. The Console provides a user-interface controlled by a
touchscreen and is activated by pressing a foot switch.

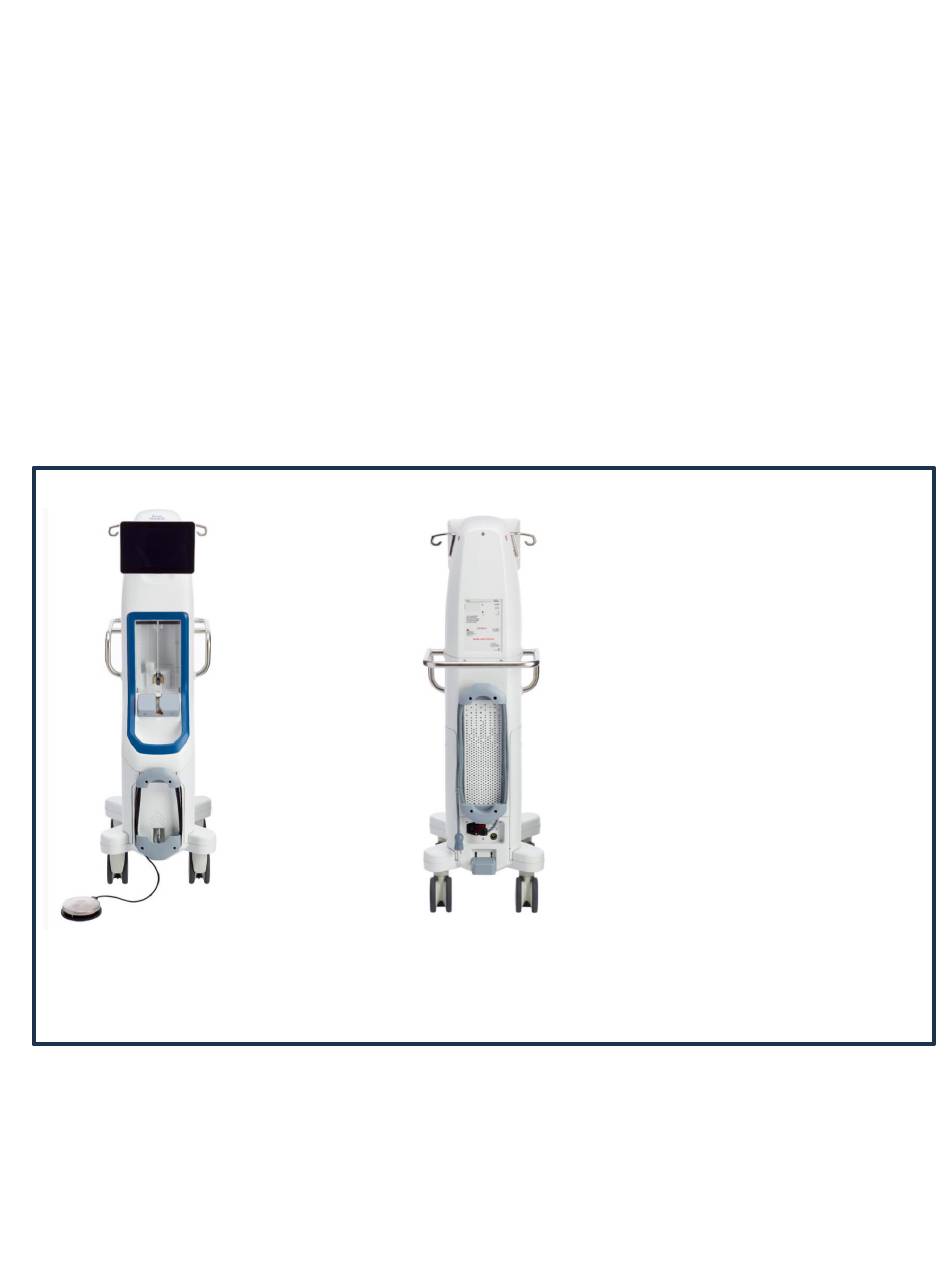

Figure 1. AutoElite Console
AngioJet Thrombectomy Set (Thrombectomy Set)
A bag of heparinized saline (not included) supplies the pump with saline through the saline delivery
tubing. The pump pressurizes the saline. The Thrombectomy Set uses this pressurized, high-velocity
saline to create a low-pressure zone at the catheter tip. Thrombus is drawn into the catheter where it is
fragmented by the jets and evacuated from the body. The waste tubing transports the thrombus debris
from the catheter to the waste bag for ultimate disposal. An additional feature includes injection of
physician-specified fluid using the Power Pulse technique for specific Thrombectomy Sets.
