Tycon Power Systems UPS-RM-2KVA-115V User Manual

115vac 2kva 2u online ups
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

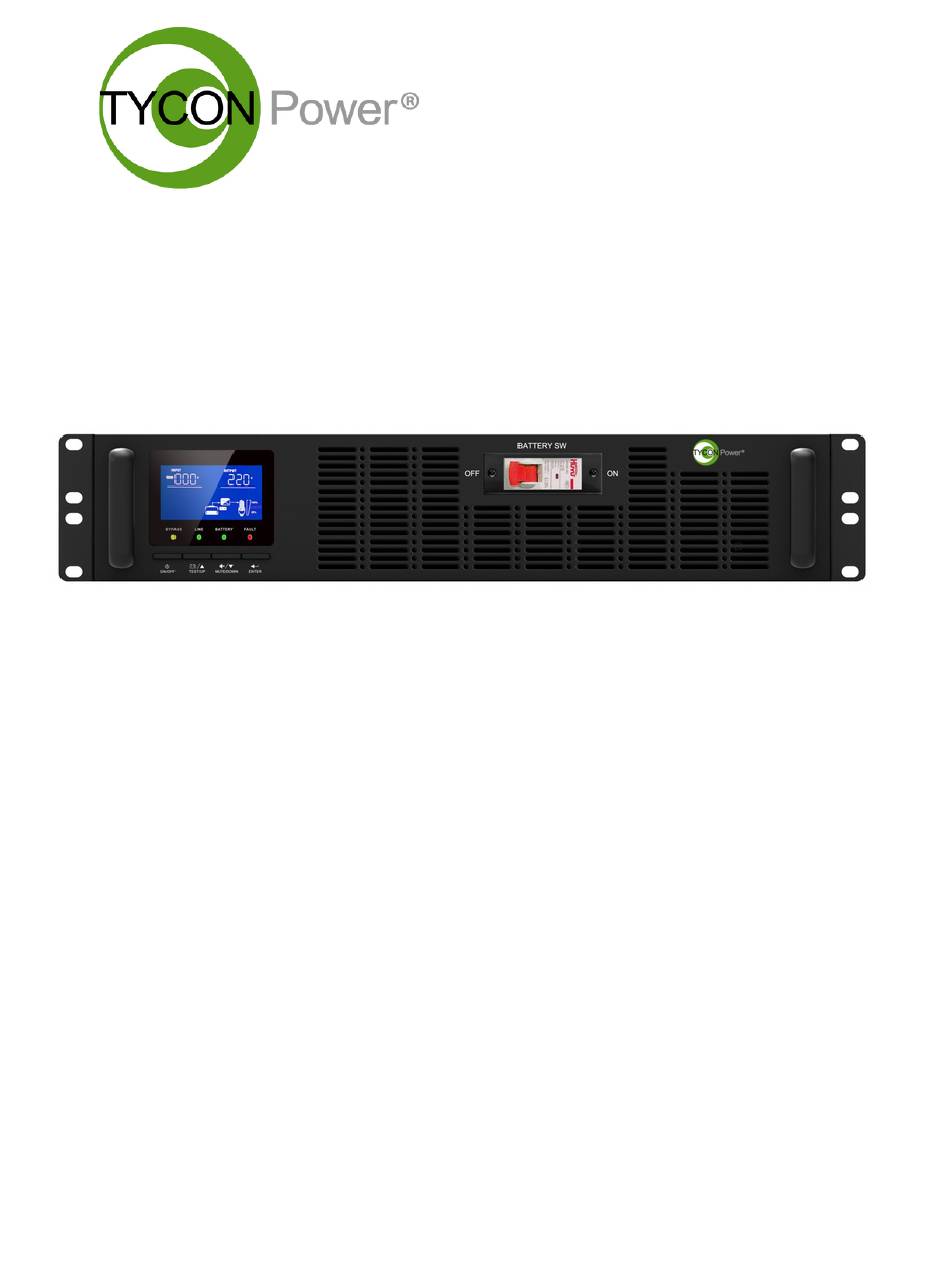

115VAC 2KVA 2U Online UPS
®
Thank you for choosing Tycon UPS products!
Our double conversion online UPS, powered by DSP digital control
technology and high frequency PWM inverter technology, produces
clean and stable power. These units provide comprehensive protection
for mission critical equipment from data loss or hardware damage,
providing clean backup power during power blackouts, surges, or other
power quality issues.
Please read this manual carefully and thoroughly before installing or
operating the UPS.
USER MANUAL
UPS-RM-2KVA-115V
w w w . t y c o n s y s t e m s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPS-RM-2KVA-115V and is the answer not in the manual?

Questions and answers

Related Manuals for Tycon Power Systems UPS-RM-2KVA-115V

Summary of Contents for Tycon Power Systems UPS-RM-2KVA-115V

  • Page 1 Please read this manual carefully and thoroughly before installing or operating the UPS. USER MANUAL UPS-RM-2KVA-115V w w w . t y c o n s y s t e m s . c o m...

  • Page 2: Chapter 1 - Safety Instructions

    Rack Mount UPS Chapter 1 - Safety Instructions This manual contains important instructions that you should follow during installation and maintenance of the UPS and batteries. Please read all instructions before operating the equipment and save this manual for future reference. Strictly follow the Safety instructions for equipment installation, operation and maintenance.

  • Page 3: Chapter 2 - Product Introduction

    Rack Mount UPS Chapter 2 - Product Introduction 2.1 Product Overview The Tycon UPS-RM-2KVA-115V Uninterruptible Power Supply (UPS) is a next- generation solution that integrates advanced digital control technology with a double-conversion power topology. Designed for high efficiency and reliability, it operates across an ultra-wide input voltage range to deliver clean, safe, and high- quality AC power—ideal for protecting mission-critical equipment.

  • Page 4: Chapter 3 - Installation

    Rack Mount UPS Chapter 3 - Installation 3.1 Product Inspection Unpack the cabinet, open the outer carton and remove the accessories packed with the cabinet. Carefully lift the cabinet out of the outer carton. Note: the UPS has internal batteries and is heavy, two people should lift the equipment out of the box. Inspect the equipment.

  • Page 5: Chapter 4 - Panel & Operation Guide

    Rack Mount UPS Chapter 4 - Panel & Operation Guide 4.1 Front panel 4.1.1 Turning on the UPS (Initial Setup) The ON/OFF button are used to turn on/off the UPS. To turn the UPS ON, first switch the battery breaker to the “ON” position. Next, press the button until you hear a beep.
  • Page 6 Rack Mount UPS 4.1.5 LCD Display Icon Functional Description Indicates the AC input Indicates input voltage, input frequency, battery voltage Warning flashing with warning code Fault lighting with fault code Indicates output voltage, output frequency, load percent, load in VA, load in Watt Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode and charging status in line mode...

  • Page 7: Parameter Setting

    Rack Mount UPS 4.1.6 Parameter Setting With unit powered by AC mains input, Line LED is lit. Press On/Off until you hear a beep (1 second). The UPS AC output will turn off and the Line light will turn off. Press Enter Key for 3 seconds to enter Parameter Setting mode, and the LCD display as follows: Use “Up”...
  • Page 8 Rack Mount UPS 4.1.6 Parameter Setting (cont’d) Parameter Symbol Values (Bold = Default) 100, 110, 120, 125 Output Voltage 000: Auto, the UPS will automatically detect the AC Input frequency and set the output frequency to match Output Frequency 050: Fixed 50Hz frequency 060: Fixed 60Hz frequency ON: Enable auto turn on function, when AC input is connected, the UPS will...

  • Page 9: Ups Working Mode

    Rack Mount UPS 4.2 UPS Working Mode 4.2.1 Normal mode Plug in the UPS to AC Power. Turn on the circuit breaker on the front of the UPS. If the mains supply is normal, the UPS will power up in Normal mode (Line mode) and filter the mains input for clean and stable AC output.

  • Page 10: Battery Self-Test

    Rack Mount UPS 4.3.1 Turn on UPS (cont’d) Turning on without utility power: With no mains input to feed the UPS, turn on the battery breaker on the front of the unit. Press and hold the ON/OFF for than 3 seconds until you hear the beep. In the turn on process, the UPS has the same operation as if it is connected to utility power.

  • Page 11: Chapter 5 - Maintenance

    Rack Mount UPS Chapter 5 - Maintenance 5.1 Routine Maintenance To make sure the UPS works normally, appropriate maintenance should be scheduled periodically. The following items should be checked: Check UPS running status. If the utility power is normal, UPS should work in line mode or in battery mode with no warning or fault indication.
  • Page 12 Rack Mount UPS 6.1 LCD Warning and Fault Code Fault Description Possible Cause and Solution Code Battery low UPS start up not successful UPS internal failure, contact us. Half-wave rectifier load (hair dryer), half-wave solenoid valve, energy regenerated type load (motor, huge transformer, capacitor with residue charge), remove this kind of load and turn on the UPS again.
  • Page 13 Rack Mount UPS 6.1 LCD Warning and Fault Code (cont’d) Low input voltage and overload UPS input rectifier protection UPS internal failure, contact us. Check battery input wiring and battery Battery UN-connected cutoff device such as circuit breaker etc. Charger fail UPS internal failure, contact us.

  • Page 14: Chapter 7 - Specifications

    Rack Mount UPS Chapter 7 - Specifications 7.1 Specification Table Model UPS-RM-2KVA-115V Rated power 2000VA/1800W Input system Single phase (L/N+PE) Nominal voltage 100/110/120/125VAC Frequency 50/60Hz AC Input Voltage range 55-145VAC ± 3VAC Frequency range 40~70 ± 0.5Hz Input power factor >0.99...
  • Page 15 Rack Mount UPS 7.1 Specification Table (cont’d) Output wiring system Single phase (L/N+PE) 100/110/115/120/125VAC ± Inverter output voltage Waveform Pure Sine wave THD < 2% (linear load) Harmonic distortion THD < 7% (nonlinear load) AC Output 50/60 ± 4Hz (Sync mode) 50/60Hz ±...
  • Page 16 Rack Mount UPS 7.2 Mechanical Model W x H x L(mm) Weight (kG) Remark UPS-RM-2KVA- Internal 4 pcs 440 x 90 x400 12.1 115V battery 7.3 Environmental Item Normal range Ambient temperature -10C~ +40C Environment humidity 0~97%, non condensing <1000m: No derating Over 1000m: 1% derating for every Altitude 100m rise...
