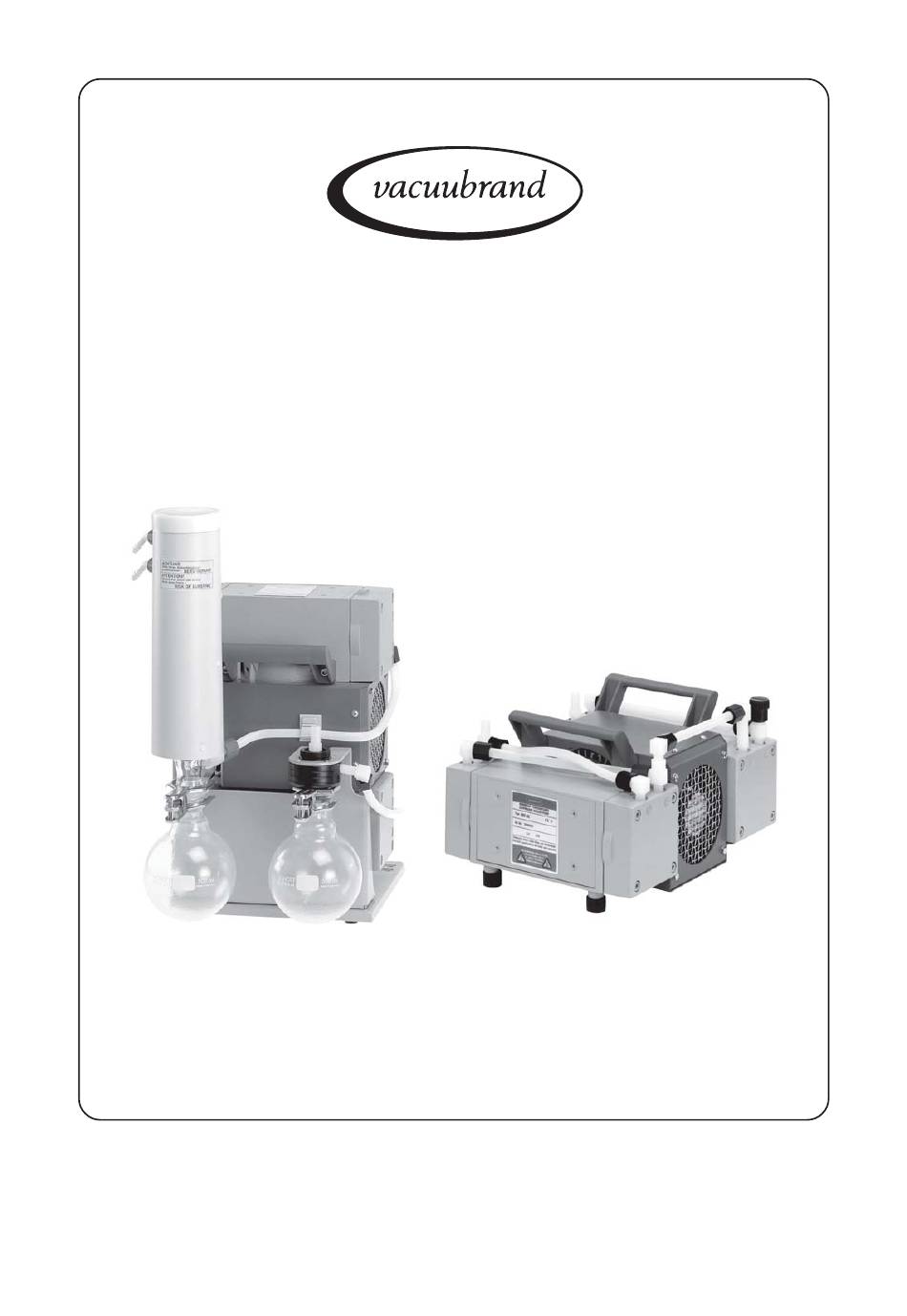

1 of 28 Technology for Vacuum Systems Instructions for use ME 8C - MZ 4C - MD 4C MD 4C + AK + EK MD 4C + AK Synchro + EK Chemistry diaphragm pumps Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check...
Page 2
2 of 28 Dear customer, Your VACUUBRAND diaphragm pumps should support you for a long time without trouble and with maximal power. Thanks to our long practical experience we have much information how you could ensure powerful application and personal safety. Please read these instructions for use before the initial operation of your pump.
page 3 of 28 Contents Safety information! ....................4 Technical data ......................8 Use and operation ....................12 Accessories - installation ..................15 Troubleshooting ...................... 17 Replacing diaphragms and valves ................ 18 Notes on return to the factory ................25 Health and safety clearance form ................
page 4 of 28 Safety information! Remove all packing material, remove the product from its packing-box, remove the protective covers from the inlet and outlet ports and keep, inspect the equipment. If the equipment is damaged, notify the supplier and the carrier in writing within three days;...
Page 5
page 5 of 28 ☞ Secure coolant hoses at the hose nozzles (e.g. with hose clip) to prevent their accidental slipping. ☞ Check liquid level in both catchpots regularly and drain condensate in time. ☞ Check the overpressure safety relief device at the exhaust waste vapour condenser in appropriate intervals.
Page 6
page 6 of 28 The motor is shut down by a thermal cutout in the winding. ☞ Attention: Manual reset is necessary. Switch off the pump or isolate the equipment from mains. Wait approx. five minutes before restarting the pump. ☞...
Page 7
page 7 of 28 ☞ Ensure that the pump cannot be operated accidentally. Never operate the pump if covers or other parts of the pump are disassembled. Never operate a defec- tive or damaged pump. ☞ Attention: The pump might be contaminated with process chemicals which have been pumped during operation.
page 8 of 28 Technical data i t l < i t l a l l a l l ° v i t ° * Ultimate vacuum (absolute) with gas ballast of pumping units MD 4C + AK+ EK, MD 4C + AK Synchro + EK and MD 4C + 2 AK: 9 mbar ** only pumping units MD 4C + AK+ EK, MD 4C + AK Synchro + EK We reserve the right for technical modification without prior notice!
Page 9
page 9 of 28 t t i i l e c i l c i l c i l e l l n i l t t i We reserve the right for technical modification without prior notice! Gas inlet temperatures: ➨...
Page 10
10 of 28 ME 8C inlet outlet on/off switch inlet outlet pump rating plate MZ 4C inlet on/off switch gas ballast valve gas ballast valve outlet pump rating plate MD 4C outlet on/off switch gas ballast valve inlet pump rating plate Documents are only to be used and distributed completely and unchanged.
Page 11
page 11 of 28 MD 4C + AK + EK (mounted to pump support with catchpot at inlet and exhaust waste vapour condenser) exhaust waste vapour condenser with cover (protection against glass splinters in the event of cooling water outlet breaking, thermal isolation avoid condensation of (hose nozzle 6 mm) humidity)
page 12 of 28 Use and operation Installing in a vacuum system: ☞ Avoid throttling losses by using connecting pipes with large diameter and keep them as short as possible. ☞ Reduce the transmission of vibration and prevent mechanical loading due to rigid pipelines.
page 13 of 28 ☞ Secure coolant hoses at the hose nozzles (e.g. with hose clip) to prevent their accidental slipping. ☞ Ensure that the coolant outlet pipeline is always free and that it cannot get blocked. ☞ The gas outlet (hose nozzle 10 mm) must not be blocked. The exhaust pipeline has always to be free and pressureless to enable an unhindered discharge of gases.
Page 14
page 14 of 28 In case of low boiling solvents when the formation of condensate is unlikely, the use of gas ballast might be unnecessary. ☞ Operating the pump without gas ballast increases the solvent recovery rates at the exhaust waste vapour condenser. Attention: Notes concerning the operation of the exhaust waste vapour condenser ➨...
Small flange NW 16 ........... 696820 Clamping ring NW 10/16 (aluminium) ....... 660000 Centring ring NW 10/16 (FPM) ......... 660195 ME 8C / MD 4C Small flange NW 16 ........... 639883 For installation an additional part is required: Elbow fitting with extension ........639851 Note: Screw in small flange into elbow fitting max.
Page 16
page 16 of 28 Digital vacuum gauge DVR 2 ........682902 Vacuum controller CVC 2 (230 V, 50/60 Hz) CEE ................683150 CH ................683152 ☞ Manual or semiautomatic determination of the pressure set value (boiling point). ☞ Quick and easy vacuum setting and controlling. ☞...
Avoid the release of pollutants. Before starting maintenance vent the pump and isolate it from the vacuum system. Set of seals (diaphragms, valves) for ME 8C ................. 4 x 696813 Set of seals (diaphragms, valves) for MZ 4C / MD 4C ..............696815 Face wrench with torque indicator ....................
page 19 of 28 Disassembling the pump from the pump support (MD 4C + AK + EK / MD 4C + AK Synchro + EK) ➨ Use open-ended wrench (w/f 17) to remove union nut on the fitting of the cover plate. ➨...
Page 20
page 20 of 28 ➨ Use open-ended wrench (w/f 14) to turn elbow fitting 1/4 of a turn, remove hose. ☞ Do not remove the elbow fitting from the pump head. Through reassembly a leak may result. ➨ To check valves use hex key to remove four socket head screws from pump head and remove upper housing (hous- ing cover with housing cover insert), head cover and valves.
Optimum torque for the diaphragm support disc: 6 Nm. ☞ The optimum torque is achieved if the pointer in the handle of the VACUUBRAND face wrench shows to the longer mark- ing line. Assembling pump heads: ➨ By turning eccentric bushing (front of connecting rod), bring connecting rod into a position in which diaphragm is in con- tact with housing and centred with respect to bore.
Page 22
page 22 of 28 Reassemble in reverse order. ➨ Install head cover, valves and housing cover with housing cover insert. ☞ Make sure that the valves are correctly seated: Valves at the outlet with round centred opening under valve, valves at the inlet with kidney-shaped opening beside valve.
Page 23
page 23 of 28 If the pump does not achieve the ultimate pressure: ☞ In case the diaphragms and valves have been replaced, a run-in period of several hours is required before the pump achieves its ultimate vacuum. If all pump heads achieve a vacuum below 120 mbar but pump does not achieve the ultimate total pressure: Check hose connectors between pump heads and manifolds for leaks.
Page 24
page 24 of 28 Cleaning and assembling components Overpressure safety relief device ......638821 (at the exhaust waste vapour condenser) ☞ Remove union nut at the condenser and remove hose from the inlet of the condenser. ☞ Pull off old overpressure safety relief device and install new one.
page 25 of 28 Notes on return to the factory Repair - return - DKD calibration Safety and health of our staff, laws and regulations regarding the handling of danger- ous goods, occupational health and safety regulations and regulations regarding safe disposal of waste require that for all pumps and other products the ”Health and safety clearance form”...
