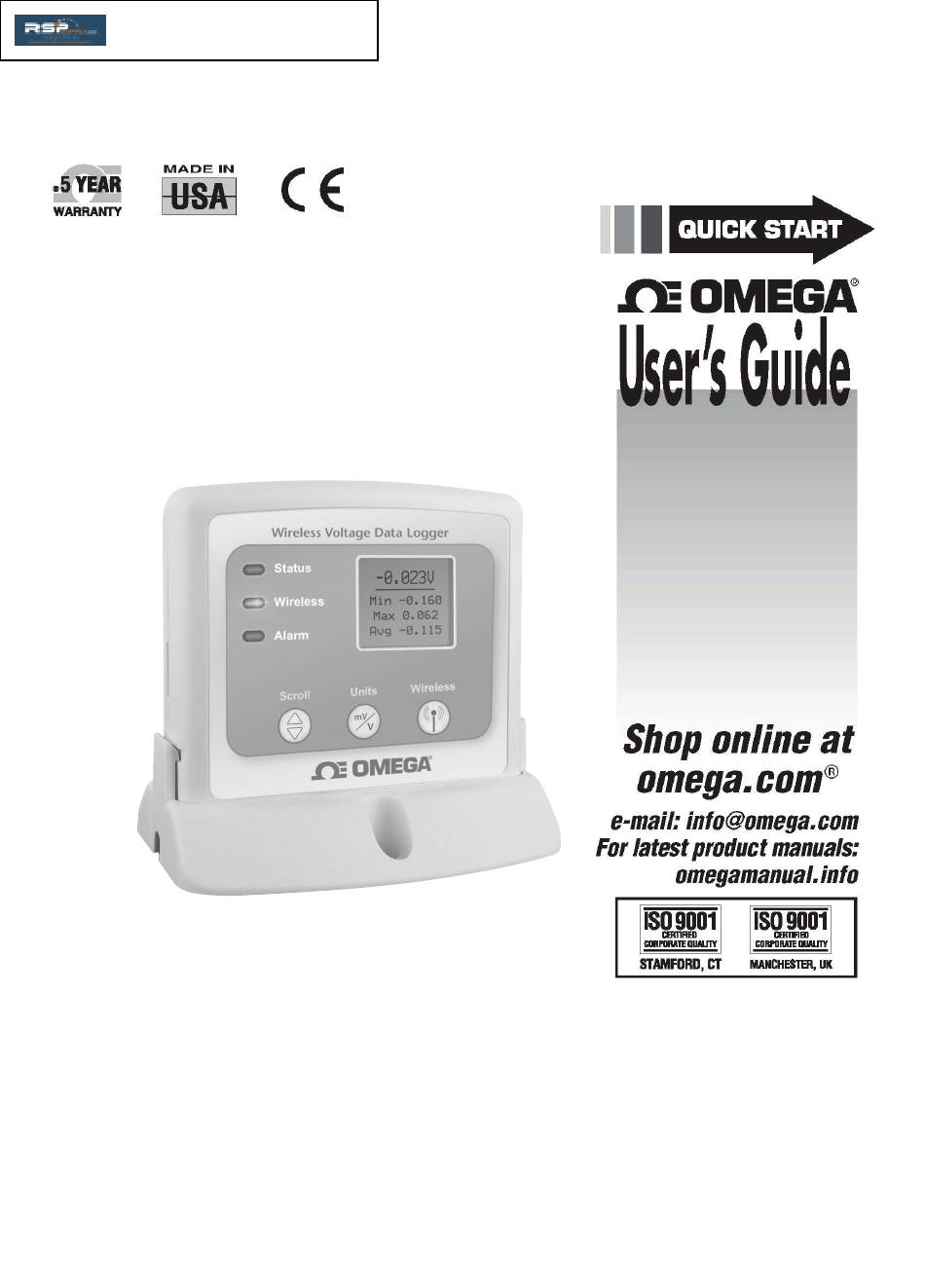

- Page 1 RSP Supply Inc. | https://www.rspsupply.com OM-CP-RFVOLT2000A Wireless Voltage Data Logger...
-
Page 2: Product Overview

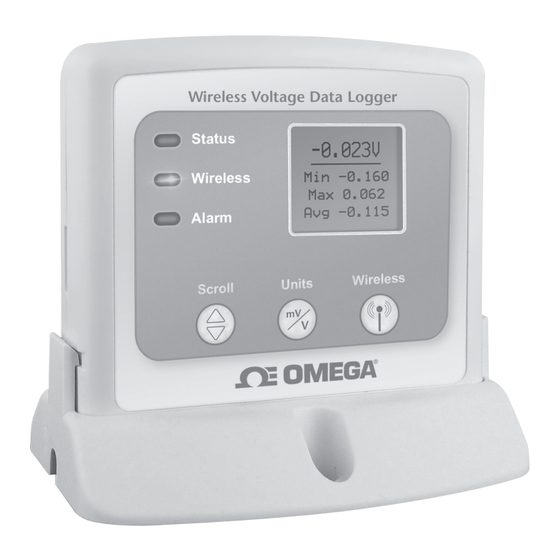

OM-CP-RFVOLT2000A Product Overview The OM-CP-RFVOLT2000A is a wireless data logger designed to measure and record DC voltage signals. The data logger can connect directly to DC voltage sources which makes it ideal for battery usage studies, solar energy monitoring and other DC voltage monitoring applications. The OM-CP-RFVOLT2000A can also be interfaced with a wide range of voltage output sensors, including pressure sensors and CO2 sensors, as well as transmitters and other transducers. -
Page 3: Quick Start Steps
“Wireless: OFF”. If wireless mode is on, press and hold the Wireless button on the device for 5 seconds. The OM-CP-RFVOLT2000A comes with a USB cable. Plug one end of the cable into an available USB port on the PC and plug the opposite end of the cable into the communication port on the OM-CP- RFC1000-EXT. - Page 4 Additional Features and Operation Alarm Settings/Rules In the Omega Software, alarms can be created on two levels; in the software itself, and programmed specifically to the data logger. Creating alarm rules in the software allows the user to utilize alarms while real time recording, and have the added benefit of features such as e-mail and SMS notification.
-
Page 5: Troubleshooting Tips
Troubleshooting Tips Why is the wireless data logger not appearing in the software? If the OM-CP-RFVOLT2000A doesn’t appear in the Connected Devices panel, or an error message is received while using the OM-CP-RFVOLT2000A, try the following: • Check that the OM-CP-RFC1000-EXT is properly connected. For more information, see Troubleshooting Interface Cable problems (below). -
Page 6: Product Maintenance
4. Push the cover closed until it clicks. Recalibration Standard recalibration for the OM-CP-RFVOLT2000A-2.5V are two points, 0V and 2.5V. For the OM-CP- RFVOLT2000A-15V, the standard calibration points are 0V and 15V. For the OM-CP-RFVOLT2000A-30V the standard calibration points are 0V and 25V. For the OM-CP-RFVOLT2000A-160mV the standard calibration points are 0V and 100mV+/-1mV. - Page 7 USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000- Computer Interface EXT required for wireless operation Software XP SP3/Vista/Windows 7/Windows 8 (Omega 4 Software only) Operating -20°C to +60°C (-4°F to +140°F); 0 to 95% RH non-condensing Environment Dimensions 3.5”...
- Page 8 Specifications subject to change. See Omega’s terms and conditions at www.omega.com Still need help? For more troubleshooting tips and information, refer to the built in help section visit us online at www.omega.com or contact us for support at 1 (800) 872-9436.
-
Page 9: Wireless Transceiver
RSP Supply Inc. | https://www.rspsupply.com Quick Start Manual OM-CP-RFC1000-EXT Wireless Transceiver Other models available: OM-CP-RFC1000-EUR Approved for European markets OM-CP-RFC1000-IP69K Splash Proof for harsh environments... - Page 10 Note: To see if the .NET 4.0 Framework is installed, go to the Windows Control Panel and select Programs. “Microsoft .NET Framework 4.0” would be listed as a Windows program. 4. Select “Install Omega Software” if .NET framework is installed on the Windows PC, or if installing on a Windows 8 machine.
-
Page 11: Mounting Instructions
Quick Start Manual Mounting Instructions For best wireless performance, both the OM-CP-RFC1000-EXT and the Omega data loggers should be mounted in the same orientation. This usually means that the external antenna should be pointing straight up. The antenna can pivot to accommodate either a wall mount or a desk mount. -
Page 12: Channel Programming
Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. Any Omega data logger or OM-CP-RFC1000-EXT that is on the same network is required to use the same channel. If all of the devices are not on the same channel, the devices will not communicate with one another. - Page 13 Verify that the data loggers are in wireless transmission mode. (See Channel Programming steps above) On a Windows PC, launch the Omega data logger software program. All active data loggers will be listed in the software showing that the device(s) are recognized.
- Page 14 Troubleshooting Tips Why is the wireless data logger not appearing in the software? If the OM-CP-RFVOLT2000A doesn’t appear in the Connected Devices panel, or an error message is received while using the OM-CP-RFVOLT2000A, try the following: • Check that the OM-CP-RFC1000-EXT is properly connected. For more information, see Troubleshooting Interface Cable problems (below).
- Page 15 RSP Supply Inc. | https://www.rspsupply.com Quick Start Manual OM-CP-RFC1000-EXT General Specifications Interface Type USB (to PC) / Wireless (to Data Logger) Operating Environment -20°C to +85°C, 0 to 95%RH non-condensing LED Indicators Red & Green Enclosure Materials ABS Plastic (body), PVC Plastic (antenna) Dimensions Enclosure: 3.8”...
-
Page 16: Compliance Information
RSP Supply Inc. | https://www.rspsupply.com OM-CP-RFVOLT2000A Compliance Information • “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”... - Page 17 European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
