- Page 1 OM-CP-RFPULSE2000A Wireless Pulse Data Logger...
-
Page 2: Product Overview

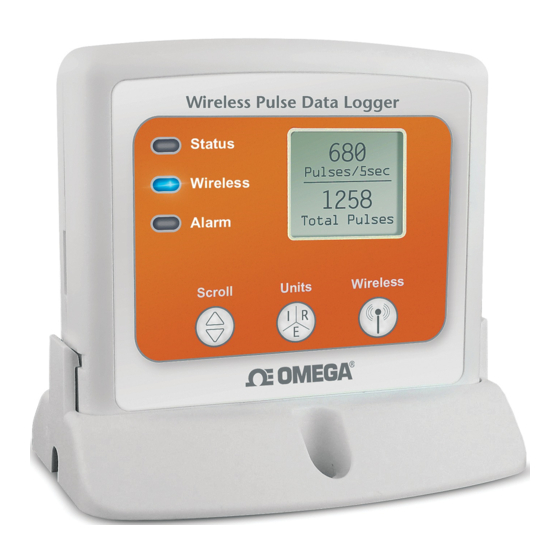

LCD screen of the data logger as well as in the software. The OM-CP-RFPULSE2000A is unique in that it not only calculates pulse count, but it also calculates pulse rate. Engineering units can be programmed into the device as a rate, which allows the device to calculate the measurement unit in rates per second, minute, hour or per day. -
Page 3: Quick Start Steps
“Wireless: OFF”. If wireless mode is on, press and hold the Wireless button on the device for 5 seconds. The OM-CP-RFPULSE2000A comes with a USB cable. Plug one end of the cable into an available USB port on the PC and plug the opposite end of the cable into the communication port on the OM-CP- RFC1000-EXT. - Page 4 Additional Features and Operation Alarm Settings/Rules In the Omega Software, alarms can be created on two levels; in the software itself, and programmed specifically to the data logger. Creating alarm rules in the software allows the user to utilize alarms while real time recording, and have the added benefit of features such as e-mail and SMS notification.
-
Page 5: Troubleshooting Tips
Check to make sure that the red LED is lit, indicating a successful connection. Questions? For more details and instructions, please refer to the rest of this guide, visit us online at www.omega.com or contact us for support at 1 (800) 872-9436. -
Page 6: Product Maintenance
OM-CP-RFPULSE2000A Product Maintenance Battery Replacement Materials: OM-CP-BAT103 1. On the bottom of the enclosure, open the battery compartment by pulling in on the cover tab. 2. Remove the battery by pulling it from the compartment. 3. Install the new battery, taking note of the polarity. - Page 7 USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000- Computer Interface EXT required for wireless operation Software XP SP3/Vista/Windows 7/Windows 8 (Omega 4 Software only) Operating -20°C to +60°C (-4°F to +140°F); 0 to 95% RH non-condensing Environment Dimensions 3.5”...
- Page 8 Specifications subject to change. See Omega’s terms and conditions at www.omega.com Still need help? For more troubleshooting tips and information, refer to the built in help section visit us online at www.omega.com or contact us for support at 1 (800) 872-9436.
-
Page 9: Wireless Transceiver
Quick Start Manual OM-CP-RFC1000-EXT Wireless Transceiver Other models available: OM-CP-RFC1000-EUR Approved for European markets OM-CP-RFC1000-IP69K Splash Proof for harsh environments... - Page 10 Note: To see if the .NET 4.0 Framework is installed, go to the Windows Control Panel and select Programs. “Microsoft .NET Framework 4.0” would be listed as a Windows program. 4. Select “Install Omega Software” if .NET framework is installed on the Windows PC, or if installing on a Windows 8 machine.
-
Page 11: Mounting Instructions
Quick Start Manual Mounting Instructions For best wireless performance, both the OM-CP-RFC1000-EXT and the Omega data loggers should be mounted in the same orientation. This usually means that the external antenna should be pointing straight up. The antenna can pivot to accommodate either a wall mount or a desk mount. -
Page 12: Channel Programming
Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. Any Omega data logger or OM-CP-RFC1000-EXT that is on the same network is required to use the same channel. If all of the devices are not on the same channel, the devices will not communicate with one another. - Page 13 Verify that the data loggers are in wireless transmission mode. (See Channel Programming steps above) On a Windows PC, launch the Omega data logger software program. All active data loggers will be listed in the software showing that the device(s) are recognized.
- Page 14 Check to make sure that the red LED is lit, indicating a successful connection. Questions? For more details and instructions, please refer to the rest of this guide, visit us online at www.omega.com or contact us for support at 1 (800) 872-9436.
- Page 15 Quick Start Manual OM-CP-RFC1000-EXT General Specifications Interface Type USB (to PC) / Wireless (to Data Logger) Operating Environment -20°C to +85°C, 0 to 95%RH non-condensing LED Indicators Red & Green Enclosure Materials ABS Plastic (body), PVC Plastic (antenna) Dimensions Enclosure: 3.8” x 1.6” x 0.8” / Antenna: 7.2” Approvals FCC ID:OA3MRF24J40MC, IC#: 7693A-24J40MC Transmission Distance...
-
Page 16: Compliance Information
OM-CP-RFC1000-EXT Compliance Information • “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” •... - Page 17 European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
