Summary of Contents for Omega OM-CP-OCTTEMP2000

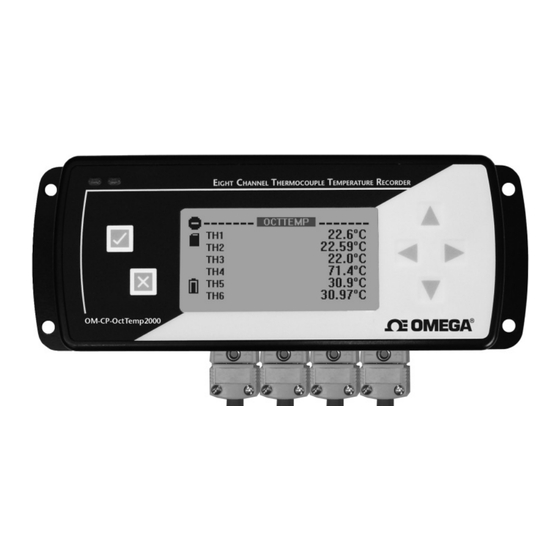

- Page 2 User’ s Guide MADE IN Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info OM-CP-OCTTEMP2000 8-Channel Thermocouple Datalogger with LCD Display...
- Page 3 Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 4: Table Of Contents
Data Logger Manual Table of Contents Section 1: Overview ..............................2 Other Documentation ............................2 Contacting Us ..............................2 Section 2: Introducing the OM-CP-OCTTEMP2000 .....................3 Device Overview ..............................3 Display Overview ...............................4 Specifi cations ..............................5 Section 3: Device Function ............................7 Channel Options ..............................7 Show or Hide Channels on the Main Screen .......................7 Change Channel Display Size ..........................7... -
Page 5: Section 1: Overview
OMEGA OM-CP-OCTTEMP2000 Section 1: Overview Section 1: Overview 1.1 Other Documentation Other documents which may be of interest to you are the Software Operating Manual and Data Logger Quick Start Guide. To obtain the most current versions of both of these documents please visit our website (www.omega.com). -
Page 6: Section 2: Introducing The Om-Cp-Octtemp2000
Data Logger Manual Section 2: Introducing the OM-CP-OCTTEMP2000 Section 2: Introducing the OM-CP-OCTTEMP2000 1.2 Device Overview 9-12VDC Communications Directional Status Input Port Key Pad LEDs Mounting Holes OK Key Channel Cancel Key Inputs Keypad Functions OK Key Cancel Key Up/Down Directional Keys... -
Page 7: Display Overview
OMEGA OM-CP-OCTTEMP2000 2.2 Display Overview Screen Title Status Screen Indicators Content Status Indicators Battery Power (Full, Half-full, Empty) Memory Remaining (Empty, Half-full, Full) Device is running Device is stopped Delay Start Push-button (Manual) Start Device reset has occurred External power present... -
Page 8: Specifi Cations
Data Logger Manual 2.3 Specifi cations Internal Temperature Channels Range: -20 to +60°C Resolution: 0.1°C Accuracy: ±0.5°C (0 to +50°C) Thermocouple Channels Types: J, K, T, E, R, S, B, and N Connection: Female sub-minature (SMP) Cold Junction Compensation: Automatic, based on internal channel Ω... - Page 9 OMEGA OM-CP-OCTTEMP2000 Calibration Digital calibration through software. Calibration date automatically recorded within device. NIST traceable certifi cate available. Power Supply Primary Source: 9V lithium or alkaline battery, user replaceable Secondary Source: 7.5 - 24V DC external, 100mA max Battery Life Eighteen month battery life with display off.
-
Page 10: Section 3: Device Function
Data Logger Manual Section 3: Device Function 3.1 Channel Options Each of the OM-CP-OCTTEMP2000’s channels have several options that are confi gurable by the user through the device’s display screen menus and the software. Show or Hide Channels on the Home Screen The user may choose to either show or hide channels on the home screen. -
Page 11: Change Channel Units
OMEGA OM-CP-OCTTEMP2000 Large Font To change channel display size from the Home Screen: 1. Press to enter the Main Menu 2. Use to highlight Setup Menu 3. Press to enter the Setup Menu 4. Use to highlight Channel Size 5. Use to choose the desired channel size 6. -
Page 12: Statistics
Data Logger Manual 3.5 Statistics Statistical information is generated based on the data measured by each channel. Note: Information is only generated while the data logger is running and the reset does not affect statistics on download. 3.6 View Channel Statistics Minimum, maximum, and average values are calculated for each channel and displayed in the statistics screens. -
Page 13: Push-Button Start
OMEGA OM-CP-OCTTEMP2000 To view time and date information from the Home Screen: 1. Press to enter the Main Menu 2. Use to highlight Clock 3. Press to select Clock and view time and date information 3.9 Manual (Push-button) Start Devices set to start in Manual (Push-button) mode can be started through the device’s display screens at the user’s convenience. -
Page 14: Section 4: Device Menus
Data Logger Manual Section 4: Device Menus Section 4: Device Menus 4.1 Device Status Menu Information such as current recording status, reading rate, stop date and time, and calibration information can be found in the Device Status Menu. To access the Device Status Menu from the Home Screen: 1. -
Page 15: Device Setup Menu
Cal Date – Date of last device calibration Cal Due – Date device is due for recalibration Note: It is important to keep your device properly calibrated to ensure accurate readings. Contact Omega for further information regarding calibration services. 4.2 Device Setup Menu Functions in the Device Setup Menu allow you to change home screen, display, and battery options. -
Page 16: Section 5: Software Features
This section details several features of the data logger software that are particularly useful with the This section details several features of the data logger software that are particularly useful with the OM-CP-OCTTEMP2000 device. For further information regarding the software, please visit OM-CP-OCTTEMP2000 device. For further information regarding the software, please visit www.omega.com. -
Page 17: Name Channels
OMEGA OM-CP-OCTTEMP2000 5.2 Name Channels Each channel can be given an unique name for easy identifi cation. Channel names are visible on the LCD and are used throughout the software and data fi les. To name channels in the software: 1. -
Page 18: Change Device Id
5.3 Change Device ID Each OM-CP-OCTTEMP2000 can be given a device ID allowing for easy identifi cation among multiple devices. Device IDs are displayed on the Home Screen of the LCD and are used throughout the software and data fi les. -
Page 19: Section 6: Battery Information
Dispose of the battery in accordance with local regulations. *See the individual specifi cation sheets at www.omega.com. Battery Replacement This product does not have any user-serviceable parts except the battery which should be replaced periodically. The bat- tery life is affected by battery type, ambient temperature, sample rate, sensor selection, off-loads and LCD usage. -
Page 20: Section 7: Computer Interface
Fully insert the female USB connector into the USB. (Please see the OMEGA Datalogger Software manual for further information) Note: Most OMEGA data loggers can use both OM-CP-IFC110 and OM-CP-IFC200 interface cables. For interface cable data logger clarifi cation contact technical support at 1-800-848-4286. -
Page 21: Warranty/Disclaimer
Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. - Page 23 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...
