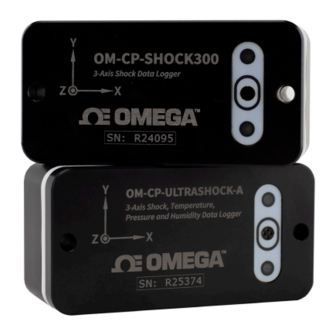

OM-CP-ULTRASHOCK-A
Temperature, Humidity, Pressure and Tri-Axial Shock Data Logger
OM-CP-SHOCK300
Xxxxx Xxxxxx
Tri-Axial Shock Data Logger
Xxxxx Xxxxxx Xxxxxxxx
INSTRUCTION
SHEET
Shop online at omega.com
For latest product manuals: www.omegamanual.info
TM
MQS5089/0120
M0000/0016
e-mail: info@omega.com
SM
Advertisement
Related Manuals for Omega OM-CP-ULTRASHOCK-A
Summary of Contents for Omega OM-CP-ULTRASHOCK-A

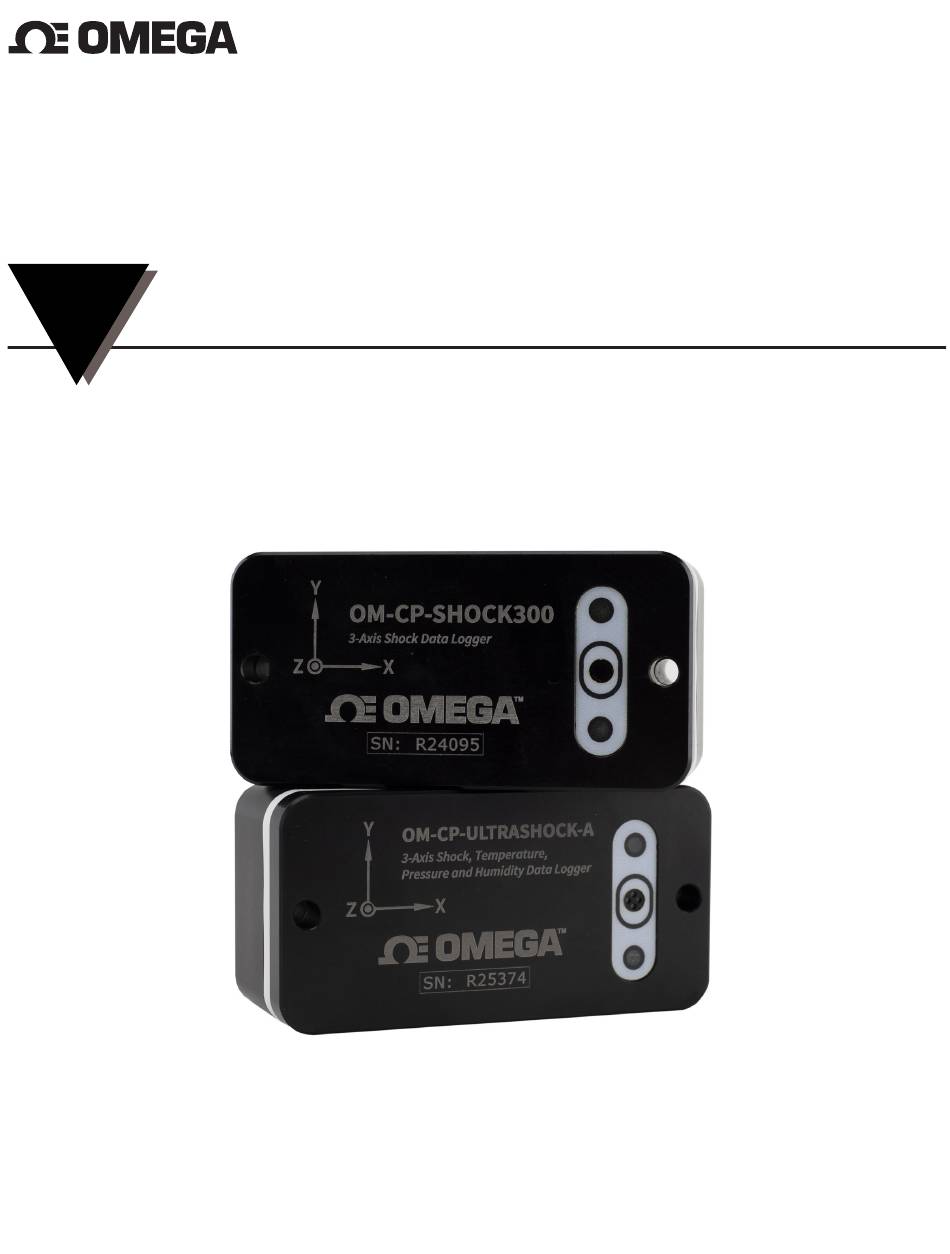

- Page 1 OM-CP-ULTRASHOCK-A Temperature, Humidity, Pressure and Tri-Axial Shock Data Logger OM-CP-SHOCK300 Xxxxx Xxxxxx Tri-Axial Shock Data Logger Xxxxx Xxxxxx Xxxxxxxx INSTRUCTION MQS5089/0120 M0000/0016 SHEET Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info...
-
Page 2: Quick Start Steps
2. Launch the Omega Software. 3. The OM-CP-ULTRASHOCK-A and OM-CP-SHOCK300 come with a USB cable. Plug one end of the cable into an available USB port on the PC and plug the opposite end of the cable into the communication port on the OM-CP-ULTRASHOCK-A and OM-CP-SHOCK300. -
Page 3: Product Overview
For various applications, the rigid “bolted down” mounting may not be optimal or practical. The bottom surface of the OM-CP-ULTRASHOCK-A and OM-CP-SHOCK300 are precision machined flat. It is possible to mount the unit by the use of a double-sided adhesive material. Omega does not make recommendations of specific materials but several points to consider are: •... - Page 4 This should be done only during factory service or if directed to do so by a Omega support or repair agent. If it is presented at any other time, there may be a malfunction of the unit.
-
Page 5: Device Operation
OM-CP-ULTRASHOCK-A & OM-CP-SHOCK300 Humidity The OM-CP-ULTRASHOCK-A utilizes polymer type humidity sensor and a high-tech Gore® vent material at the entrance holes to the internal temperature and humidity sensor chamber. The vent equalizes pressure, reduces condensation and also blocks entry of liquids and other contaminants. - Page 6 Logging Mode - Peak vs. Instantaneous When Custom Start is selected in the Omega 4 Software, the user is presented with a range of logging time intervals or actual recording rates (sampling rates). For all but the two highest recording rates, the user will also have a choice of Peak vs.
- Page 7 Trigger Mode and Post Trigger Storage The OM-CP-ULTRASHOCK-A and OM-CP-SHOCK300 allow the user to enter a shock value which will trigger the storage of data. In general, consider the use of a trigger as primarily a means of saving storage space by saving only data which is above a certain value.
-
Page 8: Product Maintenance
Inspection The OM-CP-ULTRASHOCK-A and OM-CP-SHOCK300 may be inspected visually for any signs of damage, especially to the gray gasket or to the USB jack. If damage is found, visit www.omega.com to return the unit to Omega for repair. Recalibration... - Page 9 FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CRUSH, PENETRATE, INCINERATE OR DISASSEMBLE. AVOID TEMPERATURES ABOVE THE MAXIMUM OPERATING TEMPERATURE OF THE PRODUCT. DISPOSE OF PROPERLY. CHARGE ONLY WITH THE PROVIDED OMEGA CHARGER, OR FROM OTHER USB POWER SOURCE VIA THE OMEGA PROVIDED CABLE. Specifications subject to change.
- Page 10 FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CRUSH, PENETRATE, INCINERATE OR DISASSEMBLE. AVOID TEMPERATURES ABOVE THE MAXIMUM OPERATING TEMPERATURE OF THE PRODUCT. DISPOSE OF PROPERLY. CHARGE ONLY WITH THE PROVIDED OMEGA CHARGER, OR FROM OTHER USB POWER SOURCE VIA THE OMEGA PROVIDED CABLE. Specifications subject to change.
- Page 11 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARRANTY/DISCLAIMER OMEGA ENGINEERING, INC.
