A&D AD-4212D-32 Instruction Manual

A&D AD-4212D-32 Instruction Manual

Production weighing unit
Hide thumbs Also See for AD-4212D-32:
Table of Contents

Advertisement

Quick Links

Download this manual
1WMPD4003129C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-4212D-32 and is the answer not in the manual?

Questions and answers

Related Manuals for A&D AD-4212D-32

Summary of Contents for A&D AD-4212D-32

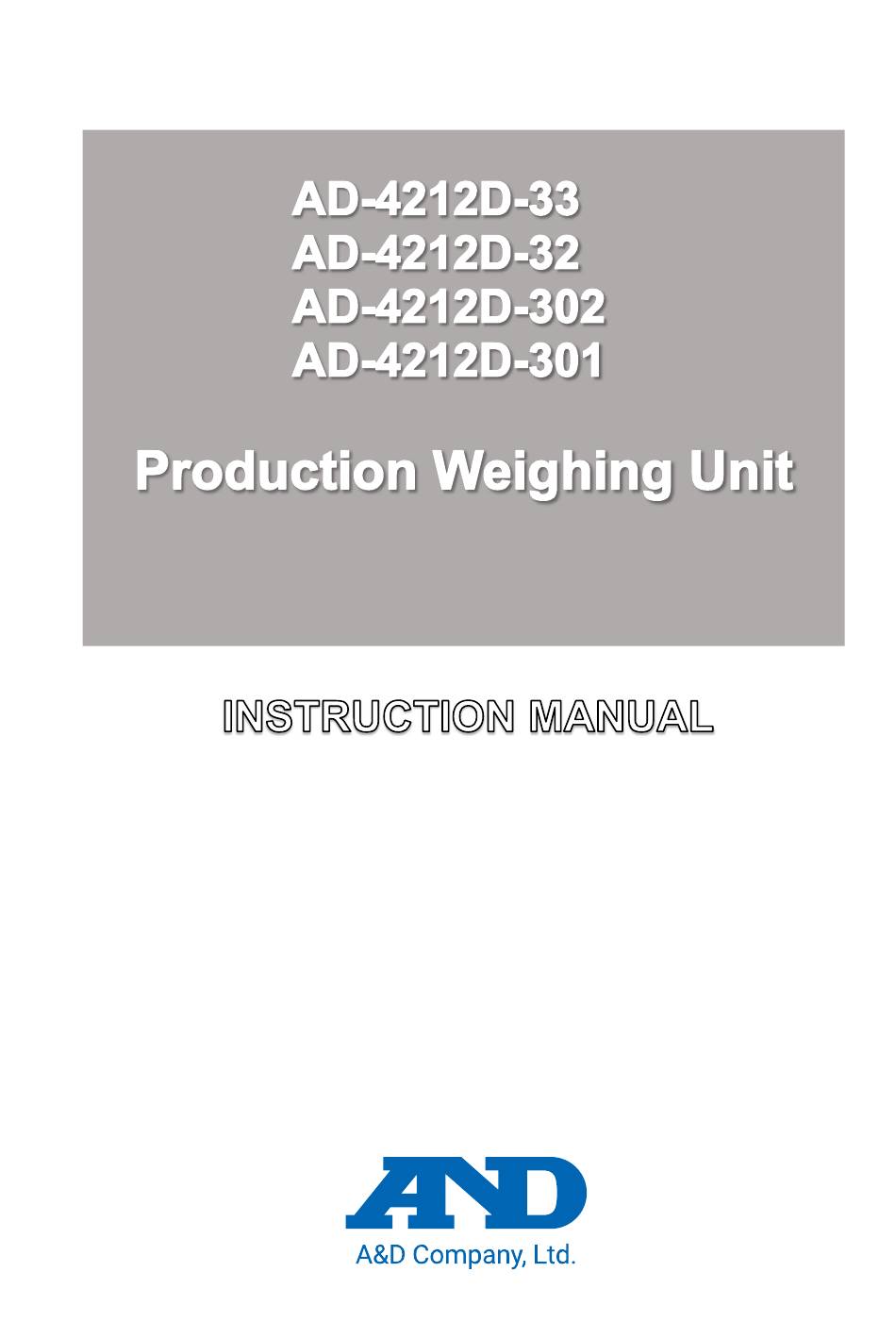

  • Page 1 1WMPD4003129C...
  • Page 2 © 2016 A&D Company, Limited. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company, Limited. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION .......................... 4 1.1. Features ............................4 1.2. Compliance ........................... 7 UNPACKING THE BALANCE ..................... 8 2.1. Unpacking ............................. 8 2.2. Installing the Balance ........................10 PRECAUTIONS ......................... 13 3.1. Before Use ..........................13 3.2. When Building Into a System ...................... 14 3.3.

  • Page 4: Introduction

     The calibration using the internal calibration weight can easily be performed.  A Super Hybrid Sensor is used to provide high resolution. Weighing Model Readability Stabilization time capacity AD-4212D-33 0.001mg 7 seconds AD-4212D-32 32g／5.1g 0.01mg／0.001mg 7 seconds AD-4212D-302 320g 0.01mg 7 seconds AD-4212D-301 320g 0.1mg...
  • Page 5 Example 1 (Connecting to a AD-1691, a personal computer or an AD-8922A) ● When connecting to AD-1691 and PC RS-232C cable for PC/PLC (Sold separately: AX-KO4472-1000) Connector for the PC/PLC AD-1691 AD-4212D Personal computer USB converter RS-232C cable for weight Sold separately indicator (Accessory: 2m) Connector for A&D’s external...
  • Page 6 Example 2 (Connecting to a PLC) ● When connecting using the RS-232C Connector for * Depending on the D-sub 9-pin (female) the PC/PLC PLC to be connected, a converter for the D- AD-4212D sub 9-pin plug may RS-232C cable be required. for the PC/PLC (Sold separately: AX-KO4472-1000)

  • Page 7: Compliance

    1.2. Compliance Compliance with FCC Rules Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of a Class A computing device pursuant to Subpart J of Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment.

  • Page 8: Unpacking The Balance

    UNPACKING THE BALANCE 2.1. Unpacking  The balance is a precision instrument. Unpack the balance carefully. Keep the packing material to be used for transporting the balance in the future.  When unpacking, see the illustration below to confirm that everything is contained.

  • Page 9: Attachment Procedure

    Note When the AD-4212D series weighing unit is built into a system, be sure to earth ground the weighing unit using the grounding terminal. Caution Use the specified dedicated AC adapter for the balance. □ Use the included AC adapter, and do not connect an AC adapter that is not compatible. □...

  • Page 10: Installing The Balance

    2.2. Installing the Balance Install the balance as follows: 1. Refer to “3. PRECAUTIONS” for installing the balance. 2. Refer to "2. UNPACKING THE BALANCE", to attach the pan support and the weighing pan on the weighing unit. 3. Insert the RS-232C cable into the jack located on the rear of the weighing unit. D-sub 9-pin Sold separately: Rear of the...
  • Page 11 * The cover's hole is not positioned in the center of the cover. Attach the cover on the breeze break so that the hole is positioned just above the weighing pan. Weighing pan 5. Confirm that the AC adapter type is correct for the local voltage and power receptacle type. 6.
  • Page 12 Note Make sure that the personal computer is in operation before connecting to the AD-4212D. 8. After the balance has been installed, calibrate the balance using the internal weight or external calibration weight. For details, refer to “4.2. Calibration”. 9. By removing the provided weighing pan, a locally fabricated weighing pan can be attached to the AD-4212D series by using the four screw holes on the pan support.

  • Page 13: Precautions

    PRECAUTIONS To get the optimum performance from the balance and acquire accurate weighing data, note the following: 3.1. Before Use  Install the weighing unit in an environment where the temperature and humidity are not excessive. The best operating temperature is about 20°C / 68°F at about 50% relative humidity. ...

  • Page 14: When Building Into A System

    3.2. When Building Into a System  Errors due to a static charge and measures to take When the ambient humidity is 45% RH ore less, insulators such as plastic or glass are prone to static electricity. When charged material comes close to the balance, a pulling force is generated by static induction between the charged material and the weighing pan.
  • Page 15  Errors due to air flow and measures to take Where the influence of ambient air flow is great such as: close to an air conditioner or fan, door or passage way. Even very subtle air flow that is hard to be detected may influence the weighing operation.

  • Page 16: During Use

    3.3. During Use  To minimize the affect by electrical noises, earth ground the weighing unit and the display unit (option).  Do not drop things upon the weighing pan, or place a sample on the pan that is beyond the balance weighing capacity.

  • Page 17: Basic Operaton (When Using The Ad-1691)

    BASIC OPERATON (WHEN USING THE AD-1691) Using the provided AD-1691 weighing environment analyzer as a remote controller enables performing the following functions. ・ Weighing value display ・ Calibration ・ Changing of the readability ・ Changing of the weighing speed (Response) ・...

  • Page 18: Changing The Weighing Speed Using Ad-1691

    4.1. Changing the Weighing Speed Using AD-1691 The weighing speed can be selected from the following three rates to minimize the influence on weighing that is caused by drafts and or vibration at the place where the balance is installed. Weighing speed setting Indicator Speed...

  • Page 19: Calibration Using The Internal Weight

    4.3. Calibration Using the Internal Weight This function calibrates the balance using the internal weight. 1 Connect the AC adapter and warm up the balance for at least one hour with nothing on the weighing pan. 2 Touch the CAL key to display Cal 3 The balance performs calibration using the internal weight.

  • Page 20: Calibration Using An External Weight

    4.5. Calibration Using An External Weight Calibration procedure This function calibrates the balance using the calibration weight. (Display example: AD-4212D-33) Operation 1. Plug in the AC adapter and warm up the balance for 30 minutes or more with nothing on the pan. 2.

  • Page 21: Smart Range Function

    SMART RANGE FUNCTION The AD-4212D-32 is equipped with two ranges. The precision range has a higher resolution. The standard range has a normal resolution. The range switches automatically depending on the value displayed. Touching the RE-ZERO button or sending the R command allows weighing in the precision range regardless of the tare value. The range can be fixed to the standard range by changing the readability using the RE-ZERO button or R command.

  • Page 22: Underhook

    UNDERHOOK The underhook can be used for magnetic materials or density measurement. The built-in underhook is revealed by removing the cap on the bottom of the balance. Use the underhook as shown below. Bottom Caution Do not apply excessive force to the underhook. When not in use, attach the cap to prevent dust from getting into the balance.

  • Page 23: Function Table

    FUNCTION TABLE The function table reads or rewrites the parameters that are stored in the balance. These parameters are maintained in non-volatile memory, even if the AC adapter is removed. The function table menu consists of two layers. The first layer is the "Class" and the second layer is the "Item".

  • Page 24: Details Of The Function Table

    Example: In gram display, one digit is 0.00001 mg for the AD-4212D-302 and 0.0001 mg for the AD-4212D-301. #3 Factory settings of the AD-4212D-33 and AD-4212D-32 is set to 5 times per second. Factory settings of the AD-4212D-302 and AD-4212D-301 is set to 10 times per second.
  • Page 25 Class Item and Parameter Description Every measurement 2 seconds 5 seconds 10 seconds Interval time in the interval memory 30 seconds mode when using prt 3 Interval time 1 minutes 2 minutes 5 minutes 10 minutes No output Selects whether or not the time or Time only 5-td dout...

  • Page 26: Description Of The Class "Environment, Display

    7.3. Description Of The Class "Environment, Display" Condition ( Cond ) Cond 0 This parameter is for sensitive response to the fluctuation of a mass value. Used for powder target mass, weighing a very light sample or when quick response weighing is required.

  • Page 27: Description Of The Item "Data Output Mode

    7.4. Description Of The Item "Data Output Mode" The parameter setting of "Data output mode (prt)" applies to the performance when the data is transmitted using the RS-232C interface Normal mode The output is performed only when receiving a command such as a Q command. Required setting Normal mode dout...

  • Page 28: Description Of The Item "Data Format

    7.5. Description Of The Item "Data Format" * The output data format applies only to RS-232C output for the PC or PLC. A&D standard format 5if type 0 This format is used when the peripheral equipment can receive the A&D format. This format consists of fifteen or sixteen characters excluding the terminator.
  • Page 29 MT format 5if type 3 This format is used when the peripheral equipment of other manufacturer is connected. Please note that the connection is not guaranteed. A header of two characters indicates the balance condition. The polarity sign is used only for negative data. The weighing data uses spaces in place of the leading zeros.
  • Page 30 Time dout 5-td 1 or 3 This format outputs time in 24-hour format. Temperature dout 5-tp on This format outputs temperature. The unit is "C". Caution Humidity and air pressure are not output.

  • Page 31: Data Format Examples

    7.6. Data Format Examples Stable Unstable Overload Positive error Overload Negative error Space, ASCII 20h Carriage Return, ASCII 0Dh Line Feed, ASCII 0Ah...

  • Page 32: Standard Input And Output Interface

    STANDARD INPUT AND OUTPUT INTERFACE 8.1. RS-232C Interface The balance is a DCE device. Connect the balance to a personal computer (DTE) using a straight through cable. Transmission system : EIA RS-232C Transmission form : Asynchronous, bi-directional, half duplex Transmission rate : 10 times/second or 5 times/second (same as data refresh rate) Data format : Baud rate...
  • Page 33 Connection to a computer using the RS-232C Interface Features The balance is of the DCE type (Data Communication Equipment), which can be connected to a personal computer using the RS-232C interface. Before connection, read the personal computer manual thoroughly. Using Windows Communication Tools Software (WinCT) When Windows is used as an operating system in a personal computer, the WinCT software can be used to transmit the weighing data to the personal computer.

  • Page 34: Commands

    8.2. Commands Command List Note A command has a terminator added, that is specified using "5if, Crlf" of the function table, and is sent to the balance. Commands to query weighing data Cancels the S or SIR command. Requests the weighing data immediately. Requests the weighing data when stabilized.
  • Page 35 Command PT:∗∗∗.∗∗∗∗ g sets the tare value digitally. An example of this command sets a negative target value and fills with the sample until the display becomes zero. For details, refer to page 39. Step 1 Place a container. Step 2 Set the display to zero using the R command.
  • Page 36 Acknowledge Code And Error Codes When the "Serial interface function (5if)" parameter is set to "erCd on", the balance outputs <AK> code or error code to each command as follows: <AK> (06h) Acknowledge in ASCII code. When the balance receives a command to request data and can not process it, the balance transmits an error code (EC, Exx).

  • Page 37: Command Examples

    Command Examples This example uses the "erCd on" of "5if" so that the <AK> (06h) code is output. ON command (turning on the balance) Computer Time Balance Standby mode ON command Command received All segments are displayed Command completed Zero display R command (Re-zeroing the display) Computer Time...
  • Page 38 Error code This example is of an error using the R command. "erCd on" is used. The balance transmits an error code when the received command can not be achieved. Computer Time Balance R command Weighing mode (unstable) Command received In process When the R command can not be achieved due to unstable weighing:...
  • Page 39 Setting a negative target value and filling with a sample until the display becomes zero This example uses "erCd on" of "5if" so that the <AK> (06h) code is output. Computer Time Balance Place a container Before command R command execution Command received In process...

  • Page 40: Maintenance

    MAINTENANCE 9.1. Treatment Of The Balance When cleaning, remove the weighing pan and pan support from the balance and attach the waterproof cover for cleaning the balance. Do not use organic solvents to clean the balance. Do not disassemble the balance. Contact the local A&D dealer if the balance needs service or repair. Use the original packing material for transportation.
  • Page 41 Error code Description Overload error A sample beyond the balance weighing capacity has been placed on the pan. Remove the sample from the pan. Underload error The weighing value is too light. Confirm that the weighing pan and pan support are properly installed.

  • Page 42: Checking The Balance Performance And Environment

    9.3. Checking The Balance Performance And Environment The balance is a precision instrument. When the operating environment or the operating method is inadequate, correct weighing can not be performed. Place a sample on the pan and remove it, and repeat this several times. If the balance seems to have a problem with repeatability or to perform improperly, check as described below.

  • Page 43: Specifications

    10. SPECIFICATIONS AD-4212D-33 AD-4212D-32 AD-4212D-302 AD-4212D-301 32 g Weighing capacity 32 g 320 g 320 g 5.1 g 32.00008 g Maximum display 32.000084 g 320.00084 g 320.0084 g 5.100009 g ∗1 0.01 mg Readability 0.001 mg 0.01 mg 0.1 mg 0.001 mg...

  • Page 44: External Dimensions

    EXTERNAL DIMENSIONS AD-4212D-33/32 82.5 ± 1 Pan support dimensions 32.8 4-M3 2- 3.4 hole 14.5 56.5 3-M6 133 ± 0.2 When securing, use the M5 screws. Unit: mm...
  • Page 45 AD-4212D-302/301 82.5 ± 1 Pan support dimensions φ48.8 4-M3 2- φ3.6 hole 3-M6 11 0.5 14.5 56.5 133 ± 0.2 When securing, use the M5 screws. φ 50 Unit: mm...
  • Page 46 When attaching the small breeze break on the AD-4212D series Inside dimensions of the small breeze break (When removing the breeze break cover) 94.5 Inside dimension from the weighing 145 (Inside dimension) Unit: mm...

  • Page 47: Options

    12. OPTIONS AX-KO3590-1000 (For external display) RS-232C cable 10m AX-KO4472-1000 (For PC､PLC) RS-232C cable 10m AX-KO4472-150 (For PC､PLC) RS-232C cable 1.5m AX-USB-9P: USB converter/Cable set  USB converter (D-Sub 9 pin - USB)  RS-232C cable (D-Sub 9 pin - D-Sub 9-pin) * This RS-232C cable is not used with the AD-4212D series.
  • Page 48 AD-1684A: Electrostatic field meter  This option measures the amount of the static charge on the sample, tare or peripheral equipment and displays the result. If those are found to be charged, discharge them using an ionizer such as AD-1683A. AD-8127: Compact printer ...

  • Page 49: Terms

    13. TERMS Terms Stable value The weighing value when the stabilization indicator appears. Environment Ambient conditions such as vibration, drafts, temperature, static electricity or magnetic fields which affect the weighing operation. Calibration Adjustment of the balance using the calibration weight so that it can weigh accurately.
  • Page 50 MEMO...
  • Page 52 A&D Company, Limited 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 4622 Runway Boulevard, Ann Arbor, Michigan 48108, U.S.A. Telephone: [1] (800) 726-3364 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D AUSTRALASIA PTY LTD...
