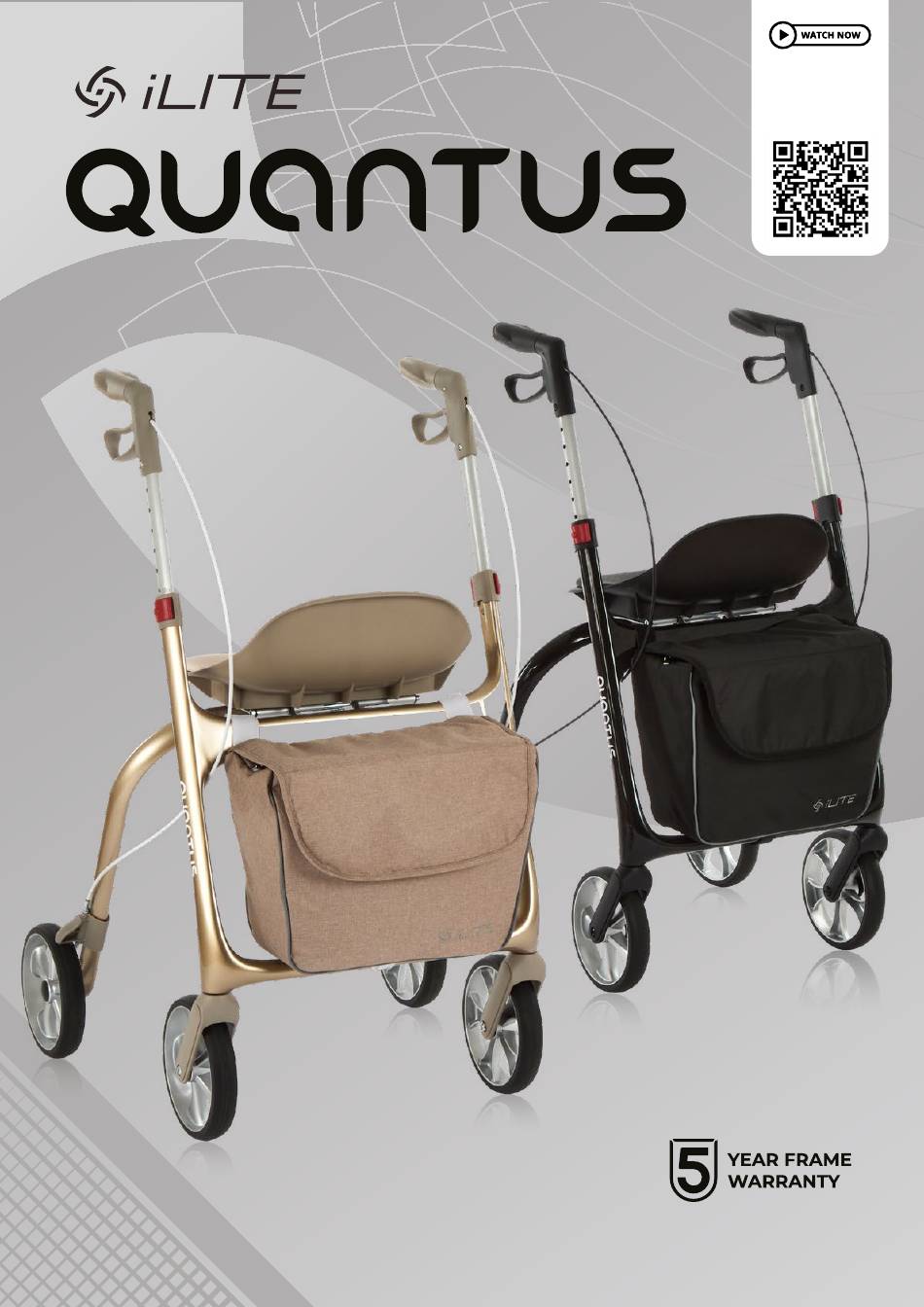

- Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL WA02010043 PRODUCT CODE:...
- Page 2 Expertly designed to provide you with the support you need to stay active and independent, meet the iLite Quantus Carbon Fibre Rollator. Featuring a padded seat for on-to-go comfort and spacious underseat storage, this rollator blends strength and mobility with a touch of style.
-
Page 3: Before Use
We recommend that you keep this user manual in a safe place for future reference. If you have any further questions about product use, maintenance or safety, please contact CareCo. KEY DEFINITIONS This user manual contains warnings and suggestions marked with the following symbols: WARNING! Highlights a potentially hazardous condition/situation for the user and/or product. -
Page 4: Table Of Contents
WA02010043 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR ILITE QUANTUS FIBRE ROLLATOR HOW TO USE YOUR ROLLATOR USER INSTRUCTIONS APPLYING THE BRAKES FOLDING & UNFOLDING COMFORT ADJUSTMENTS HANDLE HEIGHT ADJUSTMENT ACCESSORIES SEAT CUSHION STORAGE BAG TRANSPORTATION &... - Page 5 WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS PRODUCT REISSUING RECYCLING & DISPOSAL INTENDED USE PRODUCT IDENTIFICATION GENERAL WARNINGS EXPECTED LIFETIME WARRANTY NOTES...
-
Page 6: Getting Started
WA02010043 PRODUCT CODE GETTING STARTED Contact CareCo immediately if any of the listed contents are missing. ITEM NUMBER DESCRIPTION QUANTITY iLite Quantus Carbon Fibre Rollator iLite Carry Bag Seat Cushion We strongly recommend that you keep the box and internal packaging for the duration of your warranty period. -
Page 7: Setting Up Your Ilite Quantus Fibre Rollator
SETTING UP YOUR ILITE QUANTUS CARBON FIBRE ROLLATOR 1. Remove all rollator components from the 2. Place the rollator upright. The rollator will outer packaging, then place them onto a gradually unfold. level surface. An audible “click” will confirm the rollator is secure. -
Page 8: How To Use Your Rollator
WA02010043 PRODUCT CODE HOW TO USE YOUR ROLLATOR USER INSTRUCTIONS WALKING POSITION Walk with the rollator close to your body, face forwards and ensure your back is straight. USER CONTROL Hold the handles with a comfortable grip and allow your arms to sit naturally by your side. NEGOTIATING THRESHOLDS &... -
Page 9: Applying The Brakes
APPLYING THE BRAKES STOPPING Gradually squeeze both brake levers to stop the rollator. Release the brake levers to start moving again. TURNING Squeeze the left and right brake levers individually to rotate the rollator. Release the brake lever to stop rotating. LOCKING Push both brake levers downwards to apply the brake lock. -
Page 10: Folding And Unfolding
WA02010043 PRODUCT CODE FOLDING & UNFOLDING FOLDING UNFOLDING 1. Push both brake levers downwards to 1. Place the rollator upright on its wheels. apply the brake lock. The rollator will naturally unfold. 2. Pull the underseat handle to fold the 2. -
Page 11: Comfort Adjustments
COMFORT ADJUSTMENTS HANDLE HEIGHT ADJUSTMENT To set the correct handle height, stand upright behind the rollator with your arms by your side, then adjust the height of the handgrips until they are level with your wrists. 1. Lift the red clip whilst lifting/lowering the handle. -
Page 12: Accessories
WA02010043 PRODUCT CODE ACCESSORIES SEAT CUSHION ATTACHING Place the seat cushion onto the seat base. REMOVING Lift the seat cushion away from the seat base. WARNING! Ensure the cushion is secure before using the rollator as a seat. STORAGE BAG ATTACHING Loop the bag straps over the front frame and lower frame. -
Page 13: Transportation & Storage
TRANSPORTATION & STORAGE TRANSPORTATION Ensure the brakes have been applied and any adjustable parts have been properly secured to avoid transit damage. Fold the rollator following the instructions found within this user manual, then position it appropriately within the desired vehicle to prevent excess movement. SUGGESTION Secure the folded frame by attaching the frame securing strap. -
Page 14: Looking After Your Rollator
REPAIRS Certain rollator components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the rollator requires repair due to a defect, contact CareCo immediately. -
Page 15: Other Adjustments
OTHER ADJUSTMENTS BRAKE CABLE ADJUSTMENT Difficulty Level Moderate High Tools Required 8mm Spanner x1 10mm Spanner x1 Adjust the brake cable tension using simple household tools. 1. Loosen the lock nut (A) by rotating it anticlockwise. 2. Adjust the brake cable tension by rotating the brake adjuster (B). -
Page 16: Specifications
WA02010043 PRODUCT CODE WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH (MM) OVERALL WIDTH (MM) OVERALL HEIGHT (MM) 860-1020 MIN/MAX HANDLE HEIGHT (MM) 860-1020 FOLDED LENGTH (MM) FOLDED WIDTH (MM) FOLDED HEIGHT (MM) FRONT WHEEL DIAMETER (IN) REAR WHEEL DIAMETER (IN) CARRY WEIGHT (KG) BAG MAX CARRY WEIGHT (KG) WEIGHT OF HEAVIEST COMPONENT (KG) -
Page 17: Intended User
Ensure the product is safe and functions as intended before re-issuing. RECYCLING & DISPOSAL Disposal or recycling of the rollator should be completed through an approved distributor or disposal facility. (Local disposal & recycling regulations may apply) Alternatively, contact CareCo for advice on disposal. MATERIAL UPHOLSTERY ALUMINIUM... -
Page 18: Product Identification
WA02010043 PRODUCT CODE PRODUCT IDENTIFICATION The product identification label is located on the cross-frame underneath the seat. DEFINITIONS Model number Refer to instruction manual Batch code Caution Date of manufacturer Indicates electrical / electronic equipment must be disposed of in accordance with the WEEE regulation. -
Page 19: General Warnings
GENERAL WARNINGS Read the following carefully to avoid damage and/or injury caused by improper operation. • Only use the rollator for its intended use, incorrect use can lead to hazardous situations. • Only use the rollator on even and solid surfaces. •... -
Page 20: Expected Lifetime
WA02010043 PRODUCT CODE EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the rollator is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime. -
Page 21: Warranty
Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the rollator requires repair or replacement as a direct result of: •... - Page 22 WA02010043 PRODUCT CODE NOTES...
- Page 23 NOTES...
- Page 24 2502-01...
