Kuryakyn 5635 Installation Instructions

INSTALLATION INSTRUCTIONS
SPEAR GRIPS FOR INDIAN CHIEF, CHROME
THANK YOU FOR CHOOSING KURYAKYN!
Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the installation, use, and care of this product.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN MINOR OR MODERATE POTENTIAL INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN MAY NEGATIVELY AFFECT PRODUCT PERFORMANCE AND FUNCTIONALITY OR
DAMAGE THE PRODUCT ITSELF OR THE PRODUCT TO WHICH IT IS BEING ATTACHED.
ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
1 Clutch Side Grip (smaller inside diameter)
1 Throttle Side Grip (larger inside diameter)
1 Adhesive
YOU WILL ALSO NEED:
Set of Torx drivers, Phillips head screwdriver
THESE INSTALLATION INSTRUCTIONS CONTAIN IMPORTANT INFORMATION. ENSURE THE END USER RECEIVES THIS COPY AND IS AWARE
OF ITS IMPORTANCE FOR FUTURE USE.
STEP 1 Read and understand all steps in the instructions before starting the instal-
lation. Park the motorcycle on a hard, level surface and turn off the ignition.
Remove the main fuse.
THE END USER'S SAFETY DEPENDS UPON PROPER IN- STALLATION OF THIS
PRODUCT. IF A STEP IN THIS SET OF INSTRUCTIONS IS NOT WITHIN YOUR
CAPABILITIES OR YOU DO NOT HAVE THE CORRECT TOOLS, HAVE YOUR DEALER
PERFORM THE PROCEDURE. IMPROPER INSTALLATION OF THIS PRODUCT COULD
RESULT IN DEATH OR SERIOUS INJURY.
ACCIDENTAL VEHICLE START-UP COULD CAUSE DEATH OR SERIOUS INJURY,
REMOVE THE MAIN FUSE BEFORE PROCEEDING.
AVOID DAMAGE TO THE MOTORCYCLE. PROTECT PAINTED SURFACES WITH A
SOFT CLOTH OR BLANKET.
THROTTLE SIDE PROCEDURE:
STEP 2
Remove the two screws securing the brake lever/master cylinder assembly to
the handlebars; use a zip tie to temporarily secure the assembly to the handle-
bars. Ensure that brake fluid does not leak from the master cylinder and drip
onto painted surfaces.

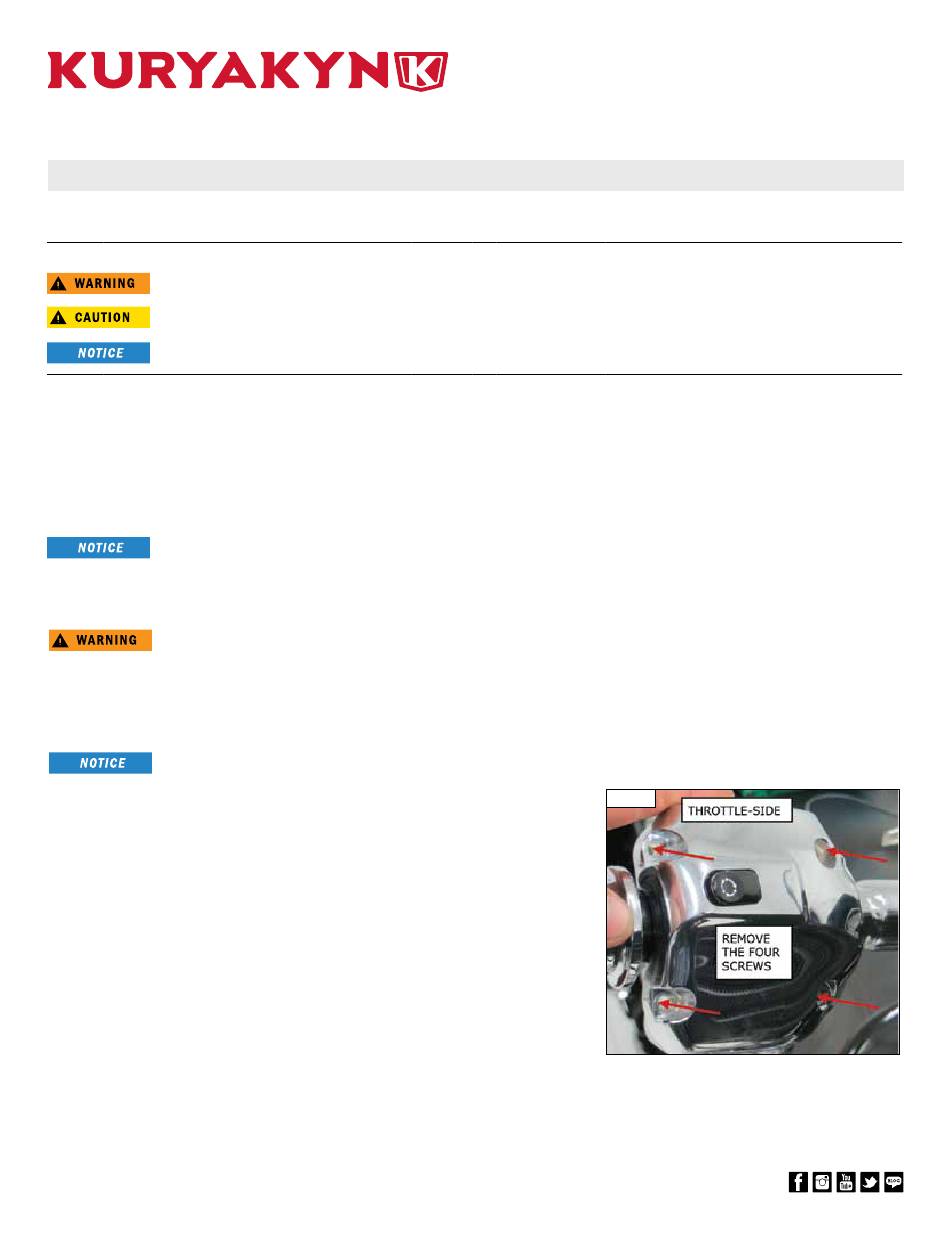

STEP 3 Refer to PIC 1. Remove the four Torx screws and separate the throttle-side
switch- housing.
PAGE 1
305635
DPF-MRK-003 REV A 7/22/16
PIC.1
K U R YA K Y N . C O M
866 277 9598 | INFO@KURYAKYN.COM
454 COUNTY ROAD VV SOMERSET, WI 54025
5635
