curt 60614 Manual

60614
1/16/2014
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-800-798-0813
WARNING!! BRAKE, FUEL, AND ELECTRICAL LINES MAY NEED TO BE LOOSENED OR REPOSITIONED TO PROVIDE CLEARANCE
FOR NEW HARDWARE. SOME MODELS REQUIRE MODIFICATION OR REMOVAL OF HEAT SHIELDS. ON SHORT BED MODELS,
CHECK FOR ADEQUATE TURNING CLEARANCE BETWEEN THE FRONT OF ALL TRAILERS AND THE TRUCK CAB.
Parts List
ITEM QTY PART NUMBER
A 1 60614-WA GOOSENECK CENTER SECTION
B 2 60614-NPW NUT PLATE WELDMENT
C 1 66155 RUBBER COVER
D 1 60601 OE GOOSEBALL
FACTORY CROSS
REAR BED SUPPORT
DRIVER SIDE
FRAME RAIL
TOOLS REQUIRED
TORQUE WRENCH
RATCHET
15/16" SOCKET
EXTENSION
DRILL
3-1/4" HOLE SAW
1/4" & 11/16" DRILL BIT
PRY BAR
CUTTING FLUID
RUST INHIBITOR
EAR PROTECTION
SAFETY GLASSES
HITCH WEIGHT: 52 LBS.
INSTALL TIME
PROFESSIONAL: 45 MINUTES
NOVICE (DIY): 90 MINUTES
INSTALL NOTES:
- LOWER SPARE TIRE
- LOWER EXHAUST
- NO MEASURING DRILL LOCATIONS
- NO DRILLING INTO FRAME
Scan
for more
information
RAM 2500
DESCRIPTION
TRUCK BED
MEMBER
TRUCK BED
(TRIMMED FOR CLARITY)
DRIVER SIDE
FRAME RAIL
B
FACTORY CROSS
MEMBER
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser.
If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid,
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to
repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
30,000 LBS. TRAILER WEIGHT &
NOTE: REQUIRES DRILLING
THROUGH THE FACTORY ITEM
CROSSMEMBER (4) PLACES
FOR SAFETY CHAIN LOOPS
1
4
5
C
2
NOTE: REVIEW 60601
D
INSTRUCTION SHEET
PRIOR TO USE
7,500 LBS. TONGUE WEIGHT.
Hardware List
QTY PART NUMBER DESCRIPTION
1 4 5/8-11 x 1-1/2" HEX FB ZINC w/NYLON PATCH
2 4 5/8-18 CENTER LOCK NUT
3 2 60614-UB
5/8" SQUARE U-BOLT
4 4 CM-C113-UBS U-BOLT SPRING
5 8 M16 WASHER FLAT WASHER
PASSENGER SIDE
FRAME RAIL
FRONT BED SUPPORT
A
NOTE: INSERT SUPPLIED RUBBER
COVER WHEN NOT IN USE
FRONT BED SUPPORT
3
PASSENGER SIDE

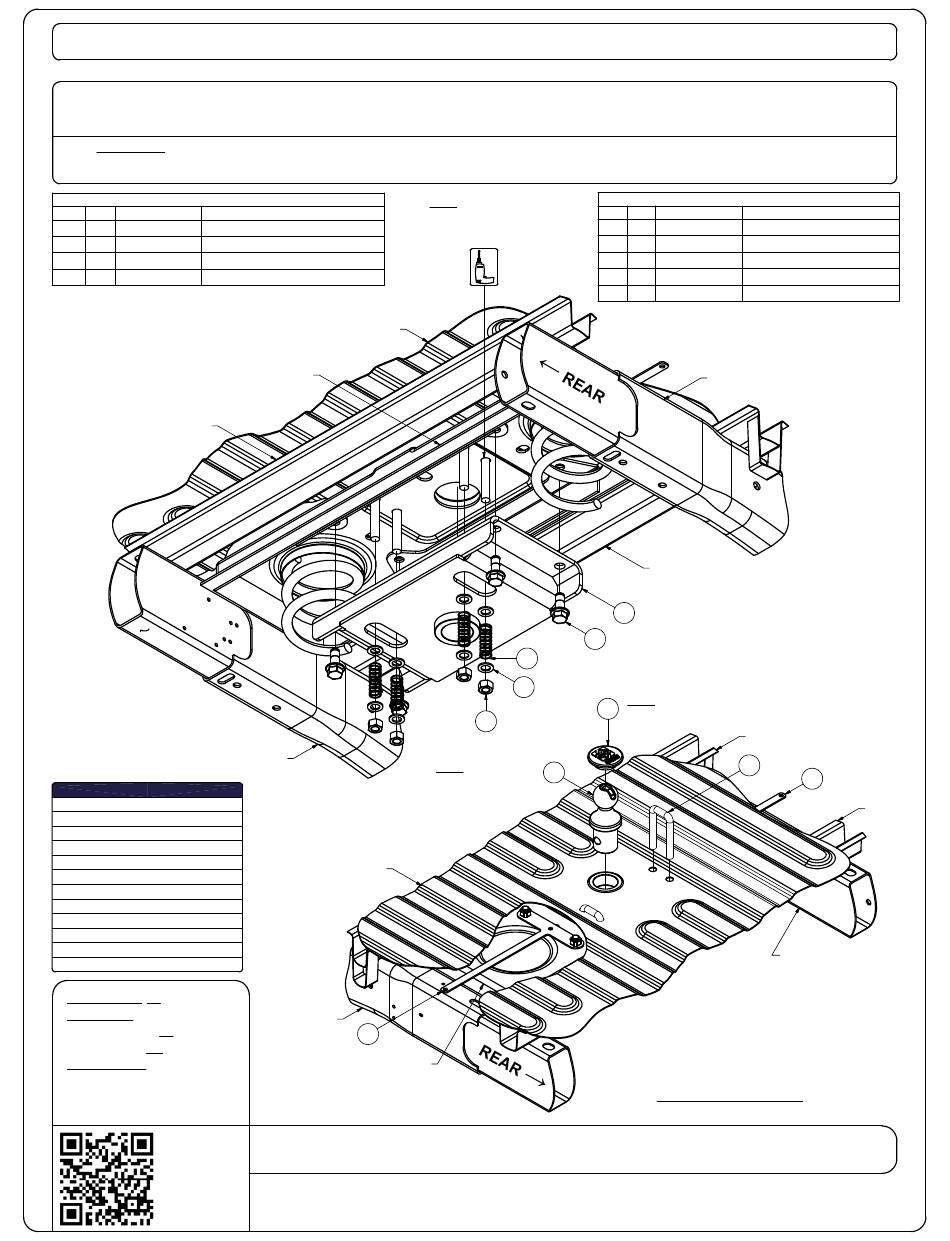

INSTALLED HITCH
PAGE 1 OF 4
B
REAR BED
SUPPORT
FRAME RAIL
