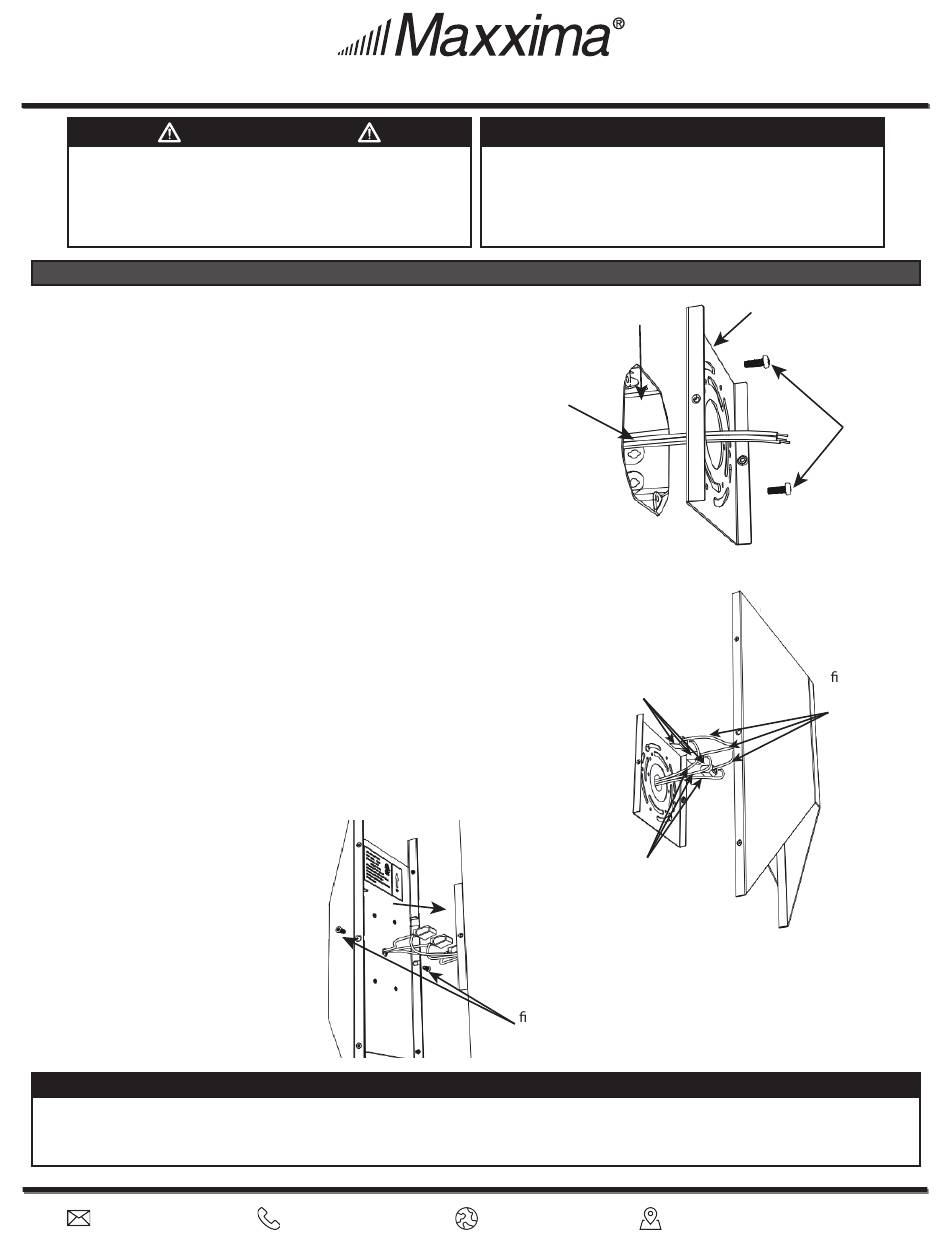

Maxxima MEL-221205 Installation Manual

WARNINGS
• Risk of electric shock - Disconnect power at the source
before installation.
• If you are unsure about the installation or the maintenance
of the wall light, please consult an electrician.
• Do not make or alter any holes in the wiring enclosure or
modify any electrical componentry.
1. Ensure that power has been turned off by switching the
circuit breaker or by removing the fuse from the fuse panel.
2. If you are replacing an exisitng fixture, remove and disconnect
the old fixture first.
3. Expose the supply wires from the junction box.
4. Using the supplied screws attach the mounting bracket to the
junction box by allowing the junction box screws to pass through
the large slots in the mounting bracket, see figure 1.
5. Connect the fixture ground wire (yellow w/ green stripe) to the
junction box ground wire using a supplied wire connector, figure 2.
6. Connect the white wire from the fixture assembly to the white
supply wire (neutral) using a supplied wire connector, see figure 2.
7. Connect the black wire from the fixture to the black supply wire (hot)
using a supplied wire connector, seen in figure 2.
8. After all connections are secure, carefully tuck the wires into the
electrical junction box.
9. Attach the fixture mounting plate to the fixture using the mouting
screws, seen in figure 3.
10. The installation is now complete. Restore the electricity and check the
operation of your lighting fixture.
Maxxima extends a 3 year limited warranty to the original purchase that the products listed are free from defects in material and/or
workmanship only. Maxxima will replace any warrantied product to the original consumer/purchaser if the product fails because of defects
due to workmanship and/or materials within the limited warranty period. Limited warranty is not transferable and applies to the original
installation of the Maxxima product. This offer does not constitute in any way a product guarantee and Maxxima does not hereby assume
info@maxximastyle.com
Outdoor Wall Light Installation Guide
WIRING INSTRUCTIONS
Figure 3
3 YEAR WARRANTY
any obligation whatsoever beyond sending a free replacement product.
866-MAXXIMA (629-9462)
CAUTIONS
• To ensure personal safety, proper grounding of the
electrical fixture is required.
• The fixture must be wired in accordance with the National
Electric Code and applicable local codes or ordinances.
• The minimum mounting height is 1.2 meters (4 feet).
• Suitable for wet locations. Covered ceiling mount only.
junction box
supply wires
push-in wire
terminals
supply wires:
ground, white
(neutral), black
(hot), respectively
xture mounting
plate screws
www.maxximastyle.com
MEL-221205
www.maxximastyle.com
mounting plate
mounting
screws
Figure 1
xture wires:
ground, white,
black,
respectively
*NOTE: push-in
terminals use 12-20
AWG solid or 16-12
AWG stranded only.
Figure 2
125 Cabot Court Hauppauge, NY 11788
