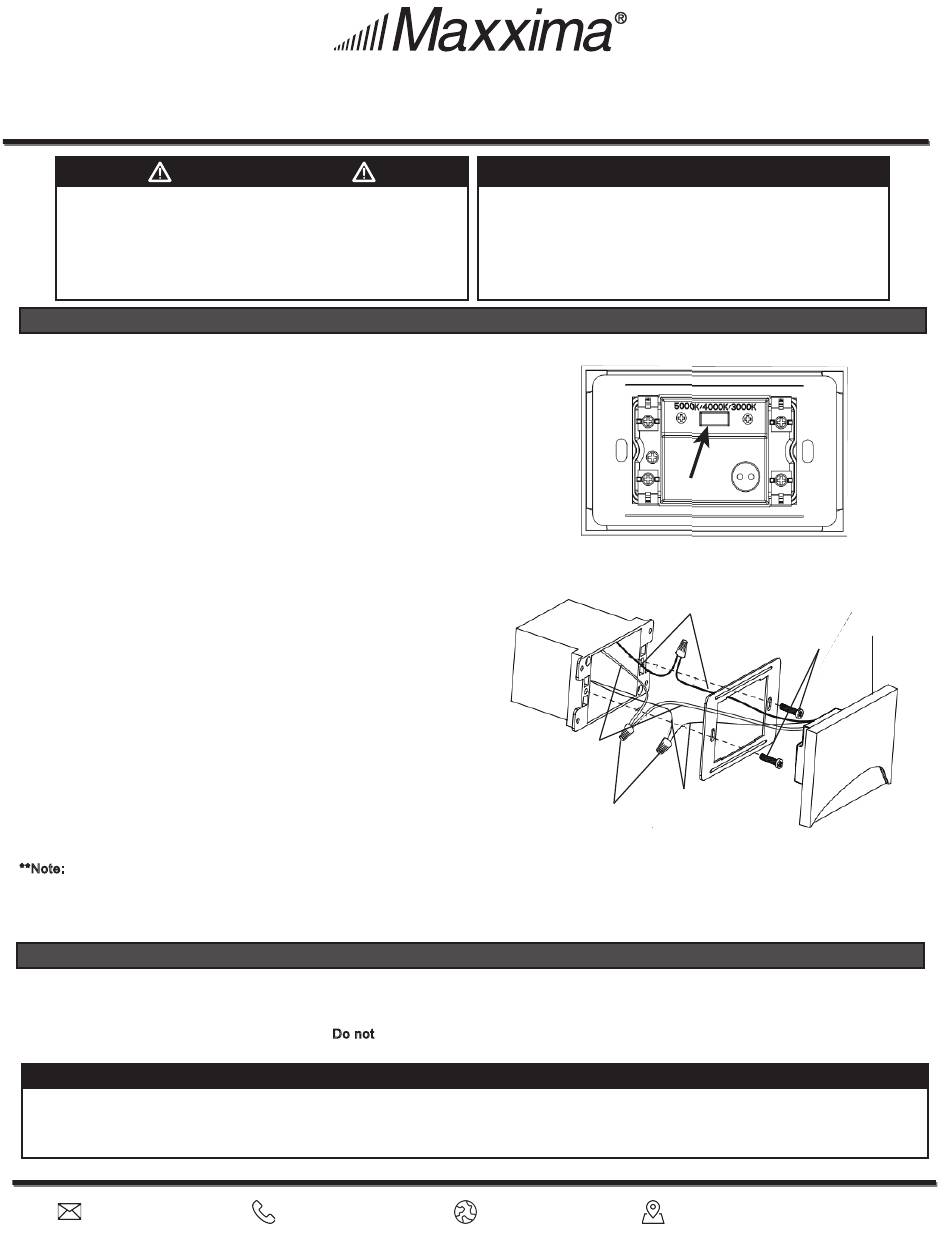

Maxxima MEW-SW235W-02 Installation Manual

WARNINGS
• Risk of electric shock - Disconnect power at the source
before installation.
• If you are unsure about the installation or the maintenance
of the fixture, please consult an electrician.
• Do not make or alter any holes in the wiring enclosure or
modify any electrical componentry.
1. Shut off power at the circuit breaker or fuse by switching
the circuit breaker to the off postion or by removing the
fuse before installation.
2. If you are replacing a fixture, remove and disconnect the
old fixture.
3. Before installation begins select the desired color
temperature by moving the switch on the back
as shown in figure 1.
4. Connect the line voltage to the fixture by connecting the
black to the black, white to the white, and the green to
the green or bare copper wire using the provided wire
nuts as shown in figure 2.
5. Once the wires are connected carefully tuck the wires
into the junction box and mount the mounting bracket
to the junction box using the two provided screws shown
in figure 2.
6. Ensure the mounting screws are not too tight as this
may cause the bracket to bend.
7. Align the light with the bracket and then press the
light onto the bracket, they will clip together.
8. Repeat this process for each step light being installed.
9. Installation is now complete restore power and check
operation of the fixture(s).
**Note: When using this fixture outside caulk the connection
between the faceplate and the wall/step to prevent water
from seeping into the junction box.
