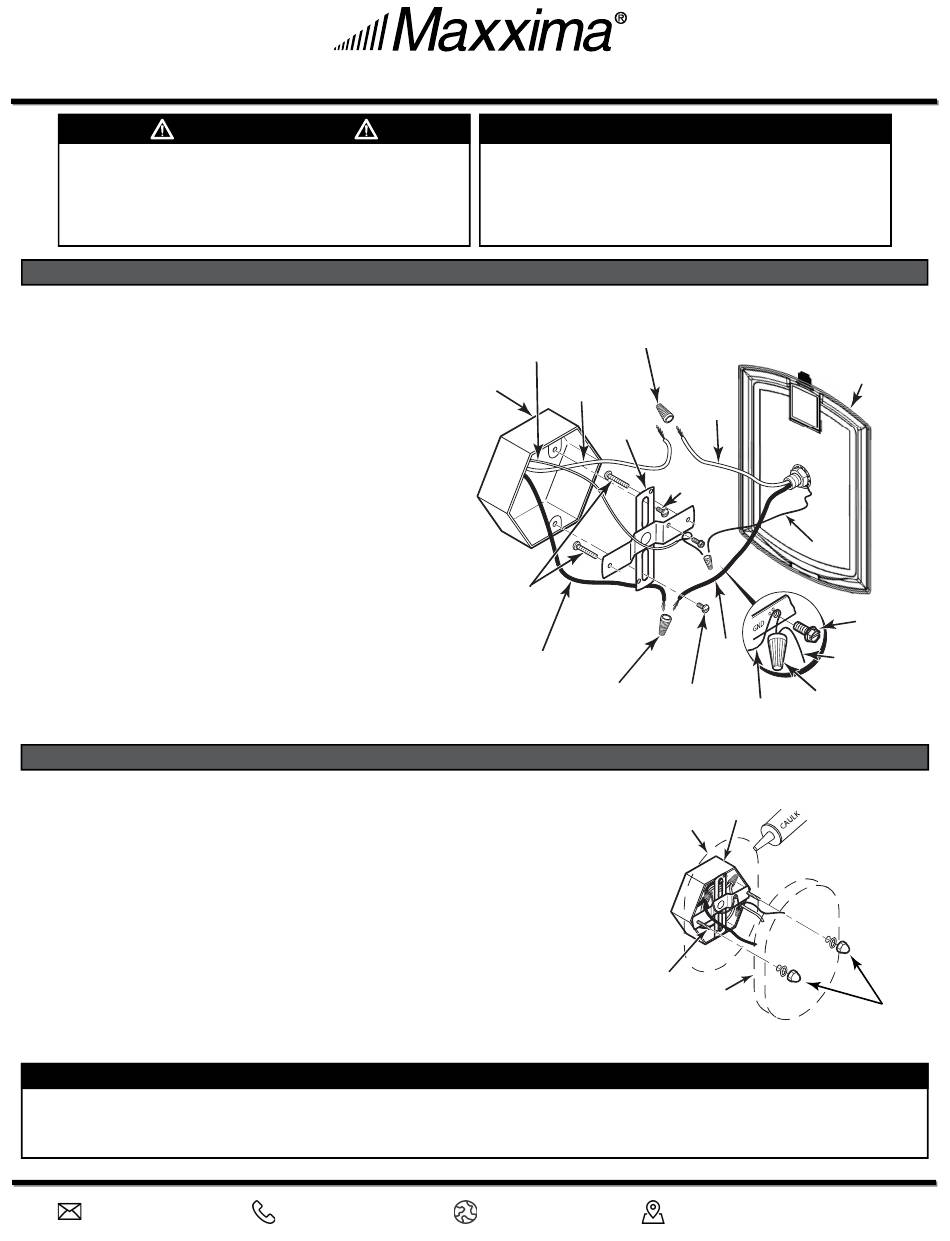

Maxxima MEL-12275W Installation Manual

WARNINGS
• Risk of electric shock - Disconnect power at the source
before installation.
• If you are unsure about the installation or the maintenance
of the wall light, please consult an electrician.
• Do not make or alter any holes in the wiring enclosure or
modify any electrical componentry.
1. Ensure the power to the fixture has been switched off before
installation.
2. If you are replacing an exisitng fixture, remove and disconnect
the old fixture first.
3. Expose the supply wires from the junction box.
4. Position the supply wires with the white supply wire on one
side of the junction box and the black supply wire on the other side.
5. Thread the fixture mounting screws through the mounting bracket
as shown in the illustration.
6. Attach the mounting bracket to the junction box by allowing the
junction box screws to pass through the large slots in the
mounting bracket.
7. Connect the junction box ground wire to the mounting bracket with
the green hex-head ground screw by screwing it into the
tapped hole in the mounting bracket marked "GND".
8. Connect the fixture ground wire to the junction box ground wire
by using a wire connector.
9. Connect the white wire (neutral) from the fixture assembly to the
white supply wire (neutral) using a wire connector.
10. Connect the black wire (hot) from the fixture assembly to the black
supply wire (hot) using a wire connector.
Note: Strip 1-1/2" of insulation from the junction box ground wire
(if insulated). Allow the stripped end to extend an extra 1" from the
ground screw to enable a connection to the fixture ground wire
using a wire connector.
1. After all connections are secure, carefully tuck the wires into the junction
box. No loose strands or loose connections should be present.
2A. Attach the fixture mounting plate to the fixture mounting screws on the mounting
bracket. Make sure no wires are pinched or exposed. Tighten the cap screws or
ball nuts to hold the fixture securly in place.
2B. The (Qty. 2) machine screws on the upper crossbar can be adjusted by
loosening their nuts (not seen in the figures above) and then screwing them in or out
to alter the length of machine screws sticking out from the upper crossbar.
Once the adjustment appears correct, lock the machine screws in place with their
nuts and then secure the fixture tightly against the wall by using the (Qty. 2) cap nuts.
3. To prevent moisture from entering the junction box and the fixtures mounting plate
causing a short, apply a bead of clear caulk to outline the outside of the fixtures
mounting plate where it meets the wall. Leave a small space at the bottom to allow
any condensation or moisture to escape.
4. The installation is now complete. Restore the electricity and check the operation
of your lighting fixture.
