WARNINGS
• Risk of fire or electric shock.
• If you are unfamiliar with electrical installations, consult a
qualified electrician before proceeding.
• Turn power off from electrical panel before installation.
• Do not make or alter any holes in the wiring enclosure or
modify any electrical componetry.
1.
Ensure that power has been turned off by switching the
circuit breaker or by removing the fuse from the fuse
panel.
2. Connect the fixtures to the stakes and route the wiring
through the channel so the wires are hidden.
3. Layout the fixtures at the desired locations.
4. Run main (12-24V ) low voltage cable to the farthest fixture.
5. At each fixture, cut the main power wire into two parts.
Separate the main power cords into two parts from the
ends (figure 1).
6. Strip approximately 1 inch of insulation off the ends and
twist the ends of the wires in order to make it easier to
connect to the fixture wires (figure 2).
7. The wires coming from the fixture are non-polarized, ensuring
the LED will function correctly whether one wire is connected to
white and the other to black, or vice versa. Using the supplied
wire nuts, connect the same input/output wire from the main
low voltage power source together with one wire from the
fixture together. Repeat this step for the second set of wires. If
necessary, secure the connection with electrical tape as
illustrated in Figure 3.
8. Preview and select the desired color temperature by
removing the hat and pushing the button in the center
(figure 4).
9. Dig about a 6" deep trench to bury the cable and extra wires
in.
Maxxima extends a 3 year limited warranty to the original purchase that the products listed are free from defects in material and/or
workmanship only. Maxxima will replace any warrantied product to the original consumer/purchaser if the product fails because of defects
due to workmanship and/or materials within the limited warranty period. Limited warranty is not transferable and applies to the original
installation of the Maxxima product. This offer does not constitute in any way a product guarantee and Maxxima does not hereby assume
info@maxximastyle.com

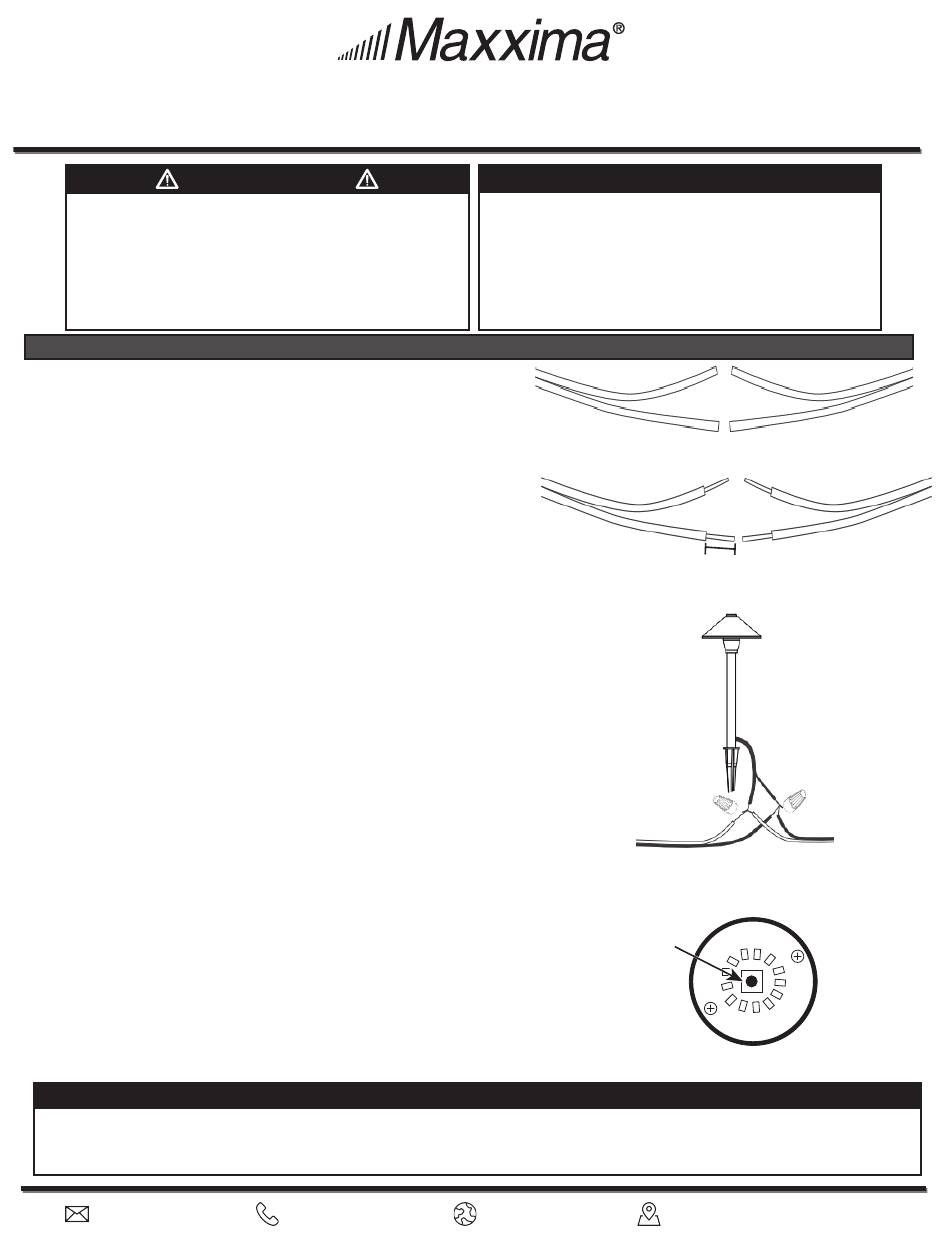

LED Garden Fixture Installation Guide
MGF-315-02
www.maxximastyle.com
INSTRUCTIONS
3 YEAR WARRANTY
any obligation whatsoever beyond sending a free replacement product.
866-MAXXIMA (629-9462)
CAUTIONS
• Intended for installation in accordance with local codes and
the National Electric Code (NEC).
• Use only with Class 2 power unit.
• Suitable for wet locations.
• Do not operate this product under any conditions other than
those for which it is specified.
• Please consider supplemental means of securement. If
installed where failure of mounting means could cause injury.
• 12-24V AC/DC.
input power wires
input power wires
input power wires
CCT button
www.maxximastyle.com
output power wires
Figure 1
output power wires
approx. 1 inch
Figure 2
output power wires
Figure 3
Figure 4
125 Cabot Court Hauppauge, NY 11788
