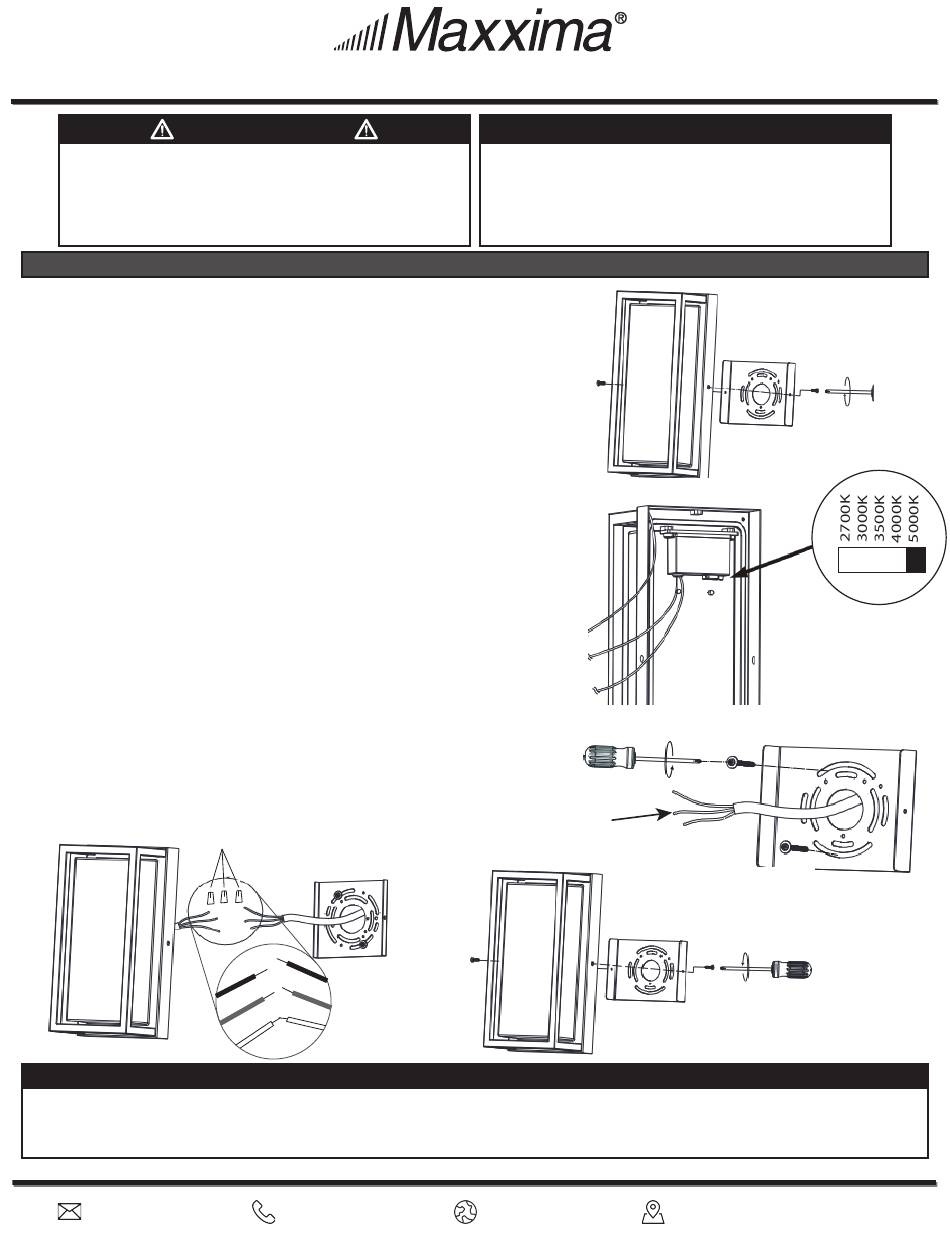

Maxxima MEL-221005 Installation Manual

WARNINGS
• Risk of electric shock - Disconnect power at the source
before installation.
• If you are unsure about the installation or the maintenance
of the wall light, please consult an electrician.
• Do not make or alter any holes in the wiring enclosure or
modify any electrical componentry.
1. Ensure that power has been turned off by switching the
circuit breaker or by removing the fuse from the fuse panel.
2. If you are replacing an exisitng fixture, remove and
disconnect the old fixture first.
3. Expose the supply wires from the junction box.
4. Remove the mouting bracket from the fixture,
if attached. Select the desired CCT on the back
of the fixture, as seen in figure 1 and 2.
5. Thread the supply wires through the mounting bracket
and attach to the junction box by using the supplied screws,
see figure 3.
6. Connect the fixture ground wire (yellow w/ green stripe) to
the junction box ground wire, the white wire to the neutral
supply wire, the black wire to the hot supply wire using the
supplied orange wire nuts (figure 4).
7. Ensure wires will not be pinched, and attach the light to
to the mounting bracket using screws from step 4, seen
in figure 5.
8. Installation is now complete. Restore power and check
operation of the lighting fixture.
Wire Nuts
Figure 4
Maxxima extends a 3 year limited warranty to the original purchase that the products listed are free from defects in material and/or
workmanship only. Maxxima will replace any warrantied product to the original consumer/purchaser if the product fails because of defects
due to workmanship and/or materials within the limited warranty period. Limited warranty is not transferable and applies to the original
installation of the Maxxima product. This offer does not constitute in any way a product guarantee and Maxxima does not hereby assume
info@maxximastyle.com
Outdoor Wall Light Installation Guide
WIRING INSTRUCTIONS
Black (hot)
Green (ground)
White (neutral)
3 YEAR WARRANTY
any obligation whatsoever beyond sending a free replacement product.
866-MAXXIMA (629-9462)
CAUTIONS
• To insure personal safety, proper grounding of the
electrical fixture is required.
• The fixture must be wired in accordance with the National
Electric Code and applicable local codes or ordinances.
supply
wires
Figure 5
www.maxximastyle.com
MEL-221005
www.maxximastyle.com
Figure 1
Figure 2
Figure 3
125 Cabot Court Hauppauge, NY 11788
