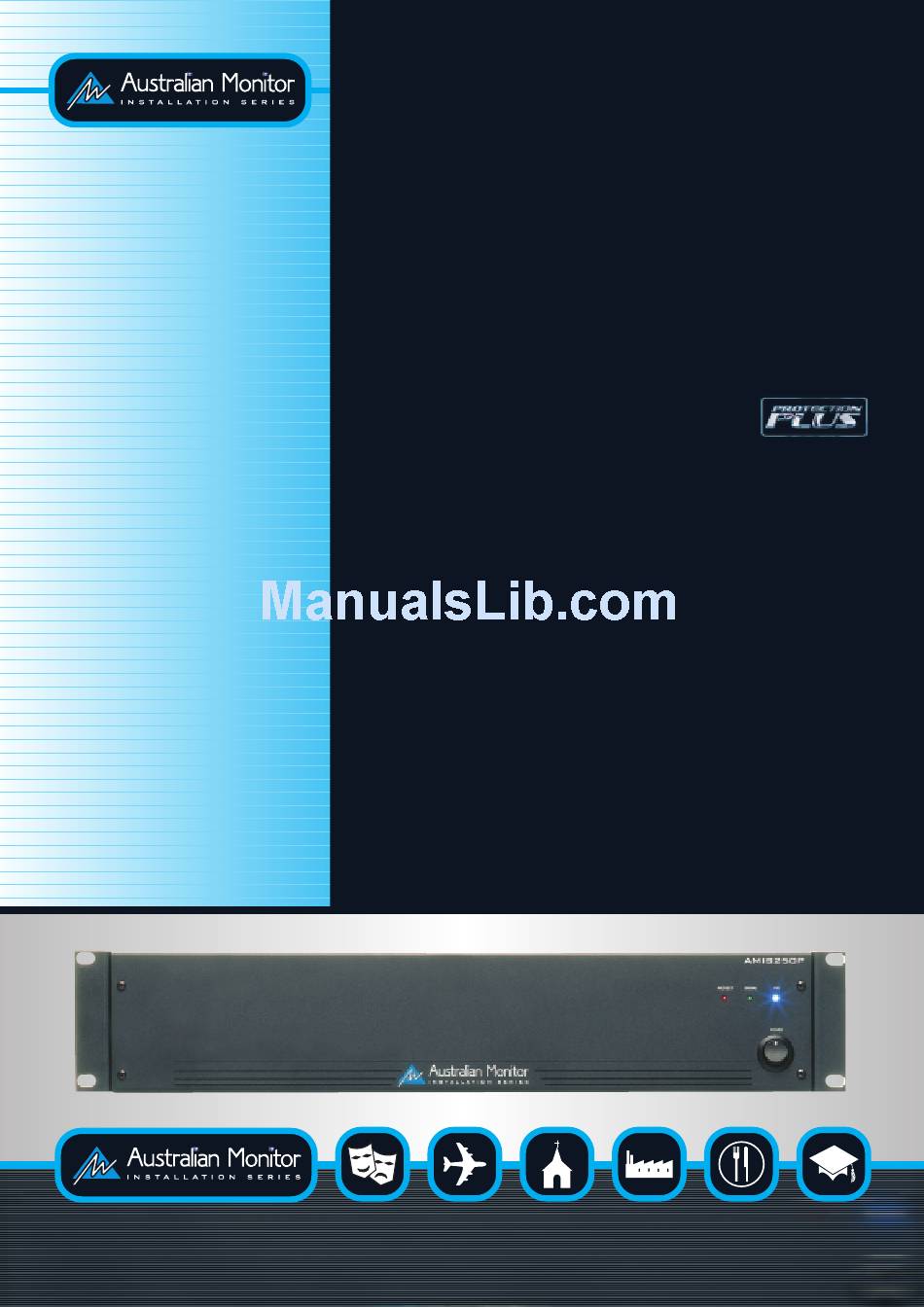

AUSTRALIAN MONITOR AMIS250P Specifications

AMIS250P
250W Power Amplifier

Description

The AMIS250P is a 250 watt power amplifier with outputs for 4 ohms, 70 and 100 volt line. It
may be desk or rack mounted. The AMIS250P features a flat screwdriver accessible gain con-
trol on the rear panel. The amplifier may operate from mains power or 24V DC.
Inputs
The AMIS250P features two signal inputs. Two line level sockets are provided for bridged
in/out connection.
Outputs
The AMIS250P features 100 volt, 70 volt and 4 ohm isolated transformer outputs.
Protection
Internal current limiting protects the amplifier from both overload and overdrive conditions.
The AMIS250P also features protection in the form of excess temperature auto cut out. An in
built auto temperature sensing fan will turn on at a factory default level but in most situations,
will never be required.
Australian Monitor Installation Series amplifiers feature a protection network that provides
greater stability and performance. Our amplifiers are recognised
worldwide for their reliability and this is due to the extensive levels of
current limiting which protect the amplifiers from both overload and
overdrive conditions.
