AMIS604P, 4 x 60 Watt Power Amplifier
The AMIS604P is a four channel (4 x 60w) power amplifier designed for commercial installations. The one
unit contains four independent 60 watt amplifiers for multi-zone applications. The AMIS604P can be used
for either low impedance (8 ohm) or 25v/70v line speaker systems per channel. The amplifier can be
mounted in a standard 19" equipment rack (rack ears supplied) or it can be used on a shelf or table. The
AMIS604P features a line level input (with parallel output) per channel and is normally used with mixers,
mixer amplifiers or other power amplifiers.
Clever Features, Contactor Friendly
AMIS604P
4 x 60w Power Amplifier
Operating Manual
Product Description
Advertisement
Table of Contents
Related Manuals for AUSTRALIAN MONITOR AMIS604P
Summary of Contents for AUSTRALIAN MONITOR AMIS604P
-
Page 1: Product Description
AMIS604P, 4 x 60 Watt Power Amplifier Product Description The AMIS604P is a four channel (4 x 60w) power amplifier designed for commercial installations. The one unit contains four independent 60 watt amplifiers for multi-zone applications. The AMIS604P can be used for either low impedance (8 ohm) or 25v/70v line speaker systems per channel. -
Page 2: Front Panel Features
When 24vdc power is connected the LED will always be on. Signal LED The green “Signal” LED’s located next to the “On” LED indicate that the AMIS604P is receiving audio signal via its line level inputs. One LED is provided per channel. The signal LED’s are a simple way of trouble-shooting installations especially in multi amplifier projects. -
Page 3: Level Control
24 Volt DC Power Inlet The AMIS604P feature optional 24VDC power to run off a battery back-up if required. This is connected via the rear terminal strip. The front panel Power Switch will not switch DC power ‘on’ or ‘off’ in DC operation. -

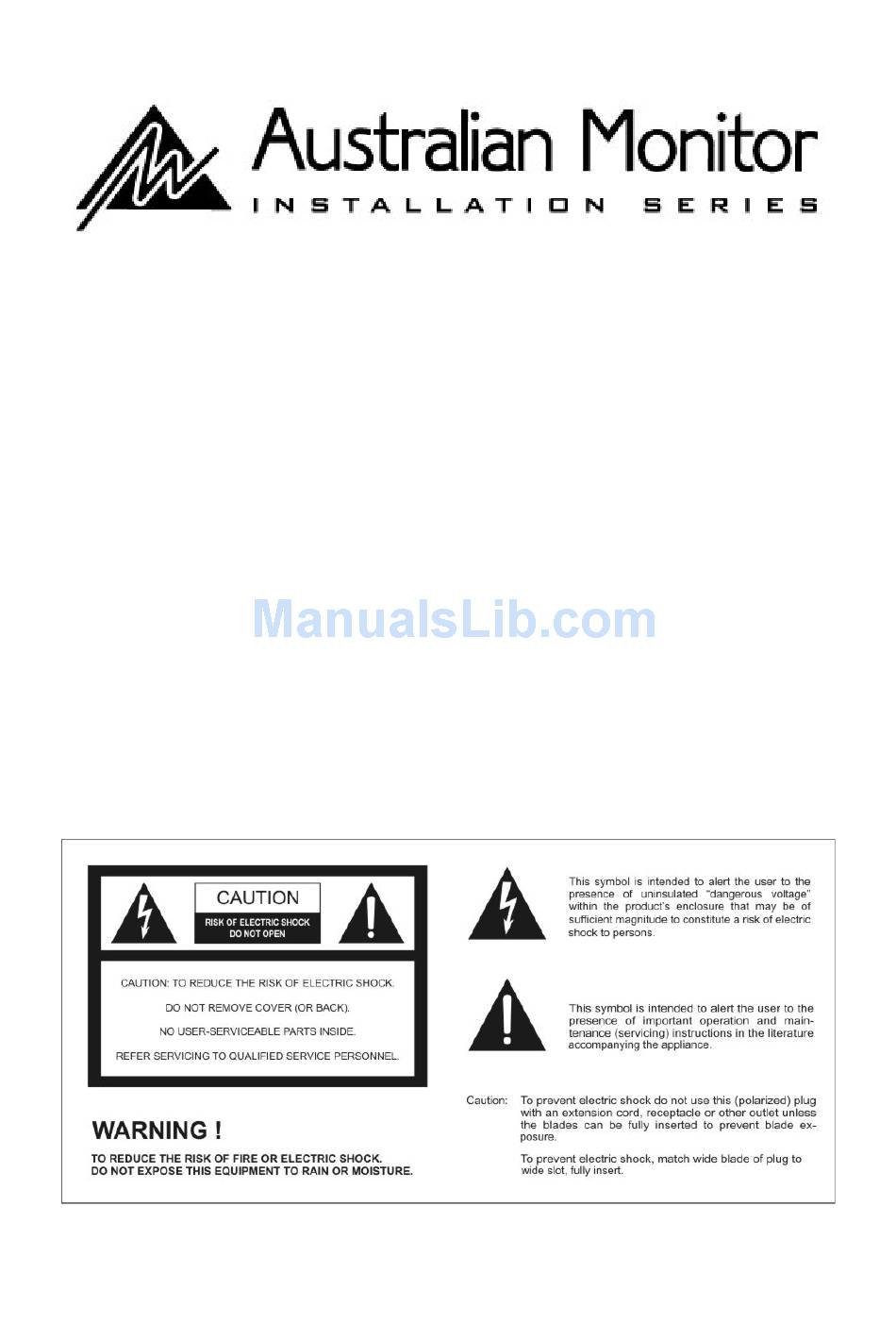

Page 4: Important Safety Information
Important Safety Information 1. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. 2. Read all documentation before operating your equipment. Retain all documentation for future reference. - Page 5 Australian Monitor Audio Inc is not responsible for damage to loudspeakers for any reason.
- Page 6 D. The equipment does not appear to operate normally, or exhibits a marked change in performance E. The equipment has been dropped, or the enclosure damaged. Engineered in Sydney, Australia www.australianmonitor.com Australian Monitor Audio Inc. PO Box 3126, Lynnwood, WA 98046.
