Buyers SaltDogg SHPE0750 Installation Instructions Manual

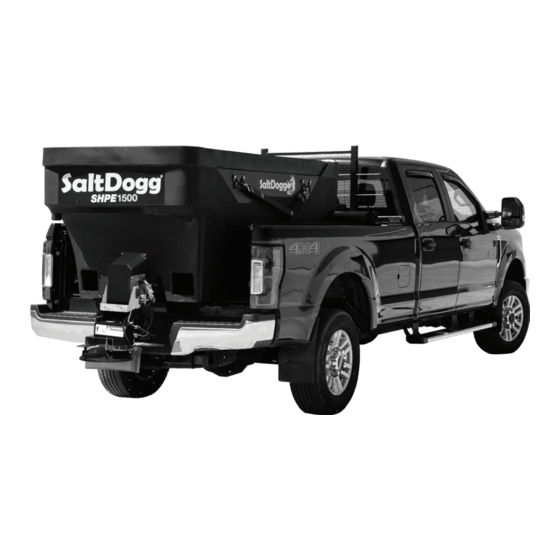

SHPE Series SaltDogg
Hopper Spreaders
0.4 thru 2.0 cubic yards
U.S. PATENT 9,562,333

Table of Contents

General Information .....................................................................1
Warranty Information ...................................................................1
Safety Precautions .......................................................................2
Installation Instructions ............................................................ 2-4
Spreader Operation .....................................................................4
Spreader Maintenance .................................................................5
Repair Parts & Drawings .........................................................6-16

General Information

SPREADER OVERALL OVERALL
MODEL SERIES LENGTH WIDTH
SHPE0400 50" 51.2"
SHPE0750 55.5" 48"
SHPE1000 72" 48"
SHPE1500 85" 48"
SHPE2000 96" 48"
Vehicle Requirements
SPREADER
MODEL SERIES TRUCK MINIMUM CAPACITY
SHPE0400 Utility vehicle with 500 lb cap.
SHPE0750 1/2 ton pick-up or utility vehicle with 500 lb cap.
SHPE1000 1/2 or 3/4 ton pick-up truck
SHPE1500 3/4 or 1 ton pick-up truck above 8,500 lbs.
SHPE2000 3/4 or 1 ton pick-up truck above 8,500 lbs.
Do not overload vehicle beyond the vehicle's GVWR or GAWR. Check
vehicle's load rating certification sticker for maximum vehicle
capacity.
Materials Recommended to Spread
Average Material Weights
Materials to use
Fine Salt-Dry
Coarse Salt-Dry
Sand/Salt up to 50/50 Mix-Dry
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
Installation Instructions
® Electric Drive Poly
OVERALL EMPTY CAPACITY
HEIGHT WEIGHT
23" 375 lbs. 0.40 cu. yd.
28" 205 lbs. 0.65 cu. yd.
34" 343 lbs. 1.0 cu. yd.
41" 524 lbs. 1.5 cu. yd.
41.5" 560 lbs. 2.0 cu. yd.
ALTERNATOR
MINIMUM AMPS
150 AMP
150 AMP
135 AMP
135 AMP
135 AMP
CAUTION
Weight (pounds per cubic yard)
2,250
1,431
2,700
SHPE SERIES SALTDOGG SPREADER WARRANTY INFORMATION
STUCK
This warranty replaces all previous warranties and no employee of this
company is authorized to extend additional warranties, or agreements, or
implications not explicitly covered herein.
Buyers Products Company warrants all parts of the product to be free
from defects in material and workmanship for a period of two (2) years.
Parts must be properly installed and used under normal conditions.
Normal wear is excluded.
Any part, which has been altered, including modifications, misuse, acci-
dent, or lack of maintenance will not be considered under this warranty.
The sole responsibility of Buyers Products Company under this warranty
is limited to repairing or replacing any part(s), which are returned, pre-
paid, 30 days after such defect is discovered, and returned part(s) are
found to be defective by Buyers Products Company.
Authorization from Buyers Products Company must be obtained before
returning any part. The following information must accompany defective
parts returned to Buyers Products Company: RMA #, spreader model,
serial number, date installed, and distributor from whom purchased.
Buyers Products Company shall not be liable for damage arising out of
failure of any unit to operate properly, or failure, or delay in work, or for
any consequential damages. No charges for transportation or labor per-
formed on any part will be allowed under this warranty.
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
-continued inside
