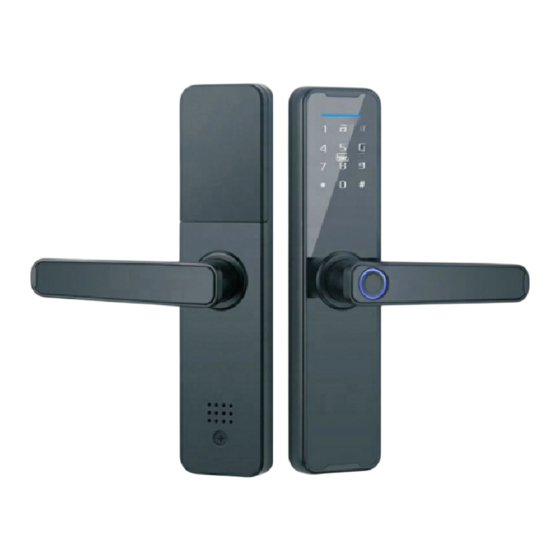

- Page 1 SMART LOCK OPERATION MANUAL MODEL: 610&620 1 2 3 4 5 6 CARD 7 8 9 * 0 #...
- Page 2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
- Page 3 1.Door opening direction (1) Right handle opening (2) Left handle opening Right inwards Right outwards Left inwards Left outwards Inside Inside Inside Inside Outside Outside Outside Outside 2.Shift the left and right handle opening According to your needs to adjust the left and right handle opening by a screw driver to release screw,then turn the handle 180 degree,then fix the screw.
-
Page 4: Caution Before Installation
3.Adjust the mortise direction According to your need to adjust the mortise direction Latch shifting plate (1) Pull the Latch shifing plate to another side (2) Push the latch into the mortise and turn 180 degree Latch Not allow to disassemble the face plate 4.Caution before installation Do not put strong force Use correct... - Page 5 6. h h eck points after installation eck p oints after installation The smart lock is horizontal with the door. The smart lock is horizontal with the door. (2) The Latch bolt,Dead bolt and Security Bolt must works smoothly and flexibly.
- Page 6 (only support Wi-Fi network of 2.4G band ), operate the smart lock to enter main menu to active connection mode (when entering main menu, the blue light will start flashing ), then connect the smart lock to the network.
- Page 7 Remote unlock function ① Ensure that the WIFI module has been connected to the cloud, and the APP can view the device. ② Press "9" + "#" on the door lock to wake up the Tuya module, and the module indicator will light up. (Some door locks wake up the module when they are touched, you do not need to press 9#, please operate according to the actual situation).
- Page 8 12. Temporary password ① Similar to the dynamic password, first ensure that the wireless module has been detected at the door lock end and the time has been calibrated; ② Create a temporary password on the APP side, enter the password, name and valid time, and "to be issued" will be displayed after creation;...
- Page 9 13. FAQ Q:how to trigger remote unlocking? A: When the module is connected to the cloud, there will be a waiting time of about 30S for remote unlocking. The trigger mechanism is: wake up the module (some of the lock panels are touched to wake up the module, and some are to press "9"...
- Page 10 14.Technical Parameters Technical Parameters Items Parameters Memo ≦50uA Quiescent current ≦180mA Dynamic current Administrators’ number Fingerprint number Number of Password storage Number of Card storage ≦0.6Second Fingerprint contrast time Fingerprint scanner semiconductor Fingerprint identification Angle 360° ≦0.15% True Rejection Rate ≦0.00004 Recognition Rate ≦0.5 Second...
- Page 11 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
