Special Attention:
1. Please keeps the keys outside the door in case of emergency.
2. Please replace the battery when low battery is indicated.
3. Read this user manual carefully before installation.
Smart Lock
User Manual
H92B-TWM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H92B-TWM and is the answer not in the manual?

Questions and answers

Related Manuals for Smart Lock H92B-TWM

Summary of Contents for Smart Lock H92B-TWM

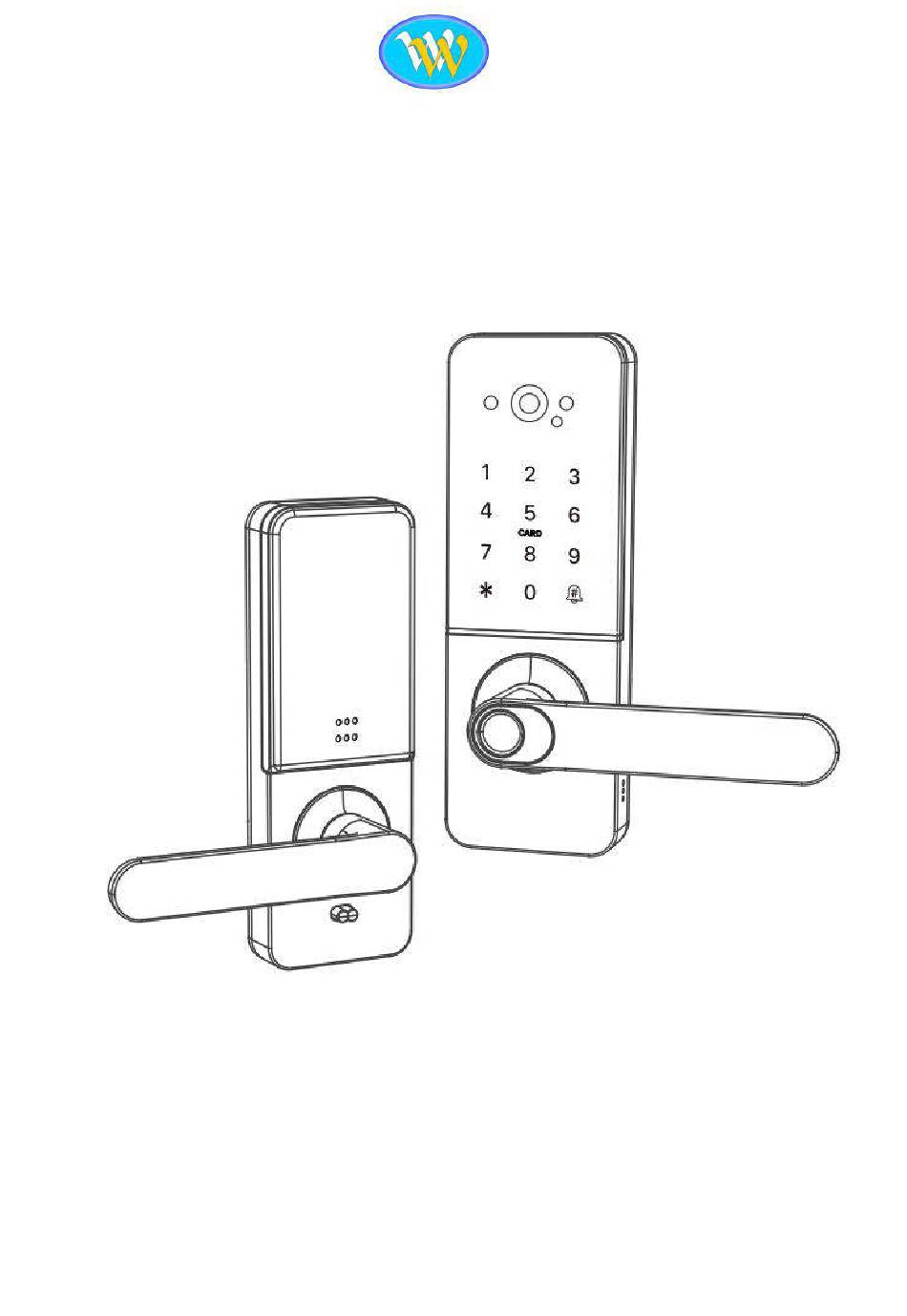

  • Page 1 Smart Lock User Manual H92B-TWM Special Attention: 1. Please keeps the keys outside the door in case of emergency. 2. Please replace the battery when low battery is indicated. 3. Read this user manual carefully before installation.

  • Page 2: Packing List

    1. Introduction 1.1.Lock structure 1.2.Packing List Check the following list which contains all the parts. Name Name Latch Screws:M4*20mm Front Panel (For Wooden Door) Back Panel 60mm Square shaft Latch 80mm Square shaft IC Card M4*25mm Screw Keys M4*30mm Screw Waterproof Rubber Seal M4*40mm Screw Screw Stubs:M4*30mm...

  • Page 3: Specifications

    1.3.Specifications Suitable for Doors Aluminum door H92B-TWM Models Applicable Wooden door Panel ： ADC12 Working Materials lithium battery Handle ： ADC12 Voltage Door Thickness Lock Weight 35-60mm to Fit Bluetooth Fingerprint Fingerprint ： 200 Unlocking Passcode Data Capacity Passcode ： 150 IC Card IC Card ：...

  • Page 4: Installation

    2.Installation 2.1 Adjusting the handle Adjust the handle according to the direction you open the door. For front Panel: 1.Loosen screw 2.Flip over to other side to 3. Tighten back the screw on the suit your door if needed. opposite side of the shaft after adjusting the direction.

  • Page 5: Installation Diagram

    2.2. Installation Diagram Step 1 Install Latch Install the latch into the door with screws Step 2 Install Front Panel 1. Install the waterproof rubber seal to front panel. 2. Install square shaft into spindle hub, keep the arrow on the hub pointing down.

  • Page 6: Step 4 Install Batteries

    Step 3 Install Back Panel 1. Install the waterproof rubber seal to the fixing backset. 2. Open the Battery cover . 3. Connect the wire. 4.Fix back panel and front panel with screws provided. Step 4 Install batteries 1. Install rechargeable lithium battery.

  • Page 7: Operation

    3.2. Connect lock to the phone 1)Be sure that Bluetooth is enabled on your phone and that you are within a few feet of your smart lock. 2) Touch the key pad to light up the lock screen, select "+ Add Lock” in TTLock.
  • Page 8 3.3.Add more locks TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone.

  • Page 9: Power Saving Mode

    3.5.Power saving mode a)Turn off the “Power saving mode” Keep WiFi connected at all times，You can use the app to remotely unlock and turn on the camera for visual intercom. b)Turn on the“Power saving mode” Unable to unlock through " "...
  • Page 10 3.6.3.Send e-Key Click on the " " as shown in figure, you can send the eKey to other users of TTlock to authorize the unlock (the receiver must be download the APP and set up an account)→ Select e-key format (Timed, permanent, One-time, Recurring) → Enter recipient's account of TTlock,set the name and effective time of the eKey, Can choose to allow remote unlocking, camera permission or disallowing, authorized administrator or not authorized, as shown in figure →Send→The recipient's account has Bluetooth unlock permission.

  • Page 11: Add Fingerprint

    3.6.4.Add card Supports opening doors through the IC cards provided. Before an IC card is used t o open the door, it needs to be added first. The adding process needs to be perfor med by the app beside the lock.The validity period of the IC can be set, it can be pe rmanent, timed or recurring.
  • Page 12 3.6.6.Remote unlock Note:Must turn on” remote unlocking “ 1.Turn on”remote unlock” in Settings, ensure that the lock is connected to WiFi and Turn off the “Power saving mode”. Click“ ”to remotely unlock. ① ② ③ ④ 2. Press "#" on the lock, the APP can receive remote unlock requests within a minute.
  • Page 13 3.6.7.Camera 1.Requirements of use ： The lock must be connected to WiFi , turn off the“Power saving mode”and turn on”remote unlock” . 2.Operation：click “camera”, The video intercom screen is displayed. a) Click” “ for video intercom, You can also mute by clicking” ”.
  • Page 14 3.7.1.Unlock records （ Refer to Click " "you can query your unlock record as shown in figure. picture ④） ① ① ① ② ③ ④ 3.7.2.Setting 1. Auto Lock ： Turn off auto locking after verifying unlock, the lock will always be in the "unlocked"...
  • Page 15 Check to see if the fingerprint is working properly (Press to see if there is any response. 6）What is the reason why the a) Connecting wire may not be jointed correctly. smart lock consumes fast b) Short circuit. power? 7）There is no response to...
  • Page 16 Factory Warranty Card Cu s t o m e r Na m e ： Customer Phone Number ： P u r c h a s e Da t e ： P r o d u c t N a m e ： P r o d u c t M o d e l ：...
