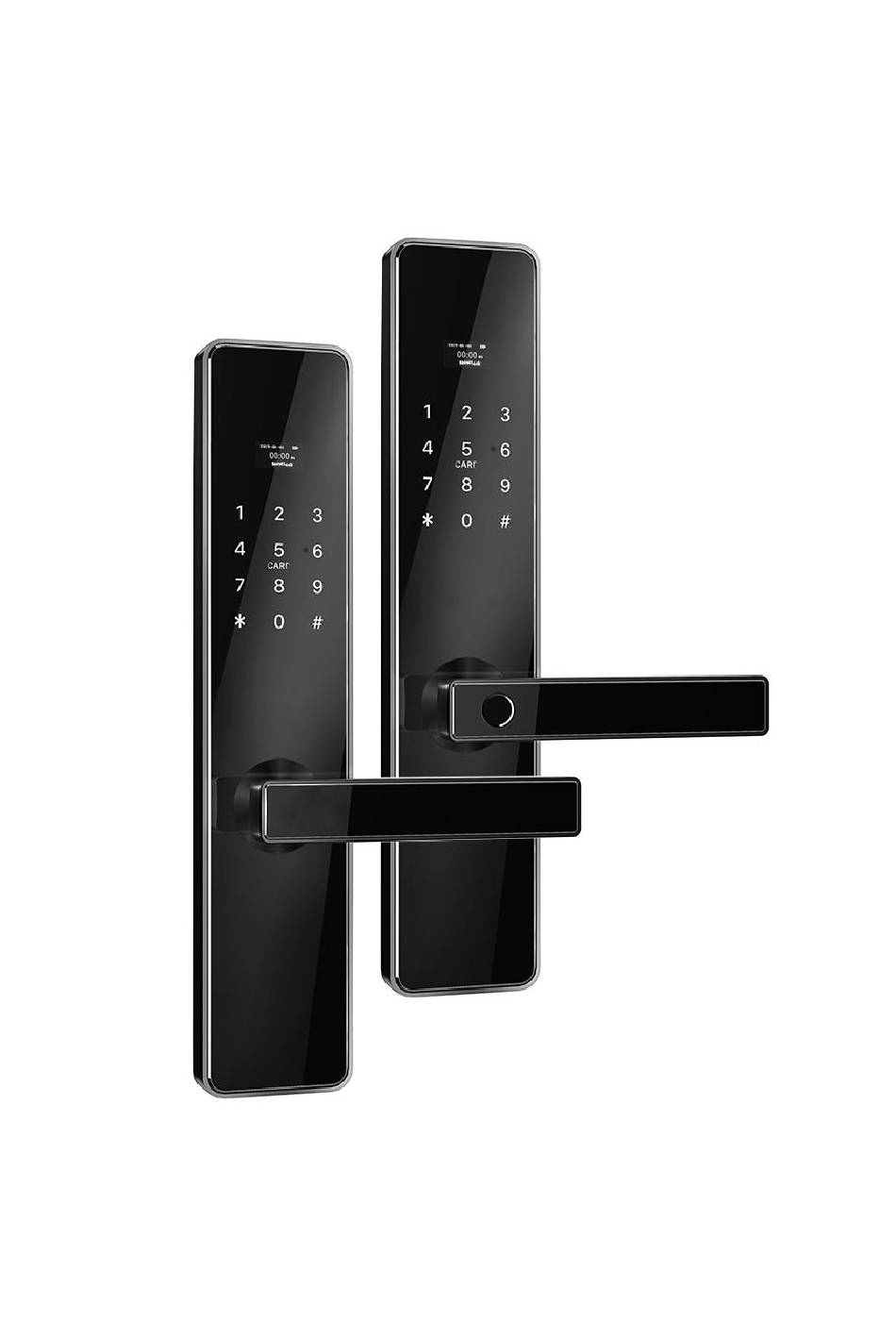

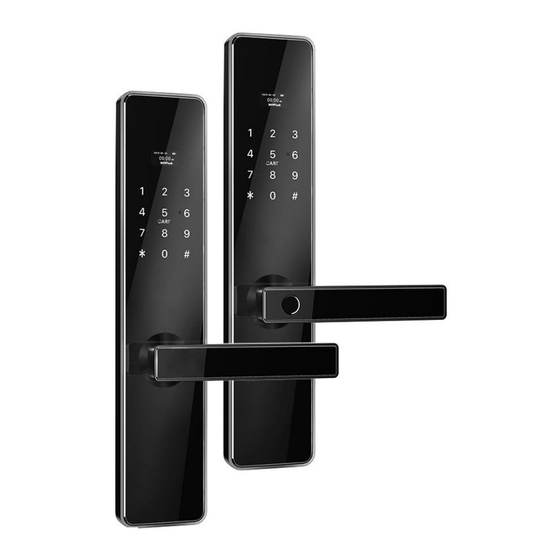

Smart Lock
User Manual
User Manual
H50-TYW
Special Attention:
1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3.
Reading this manual carefully before installation, and keep it for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the H50-TYW and is the answer not in the manual?

Questions and answers

Related Manuals for Smart Lock H50-TYW

Summary of Contents for Smart Lock H50-TYW

  • Page 1 Smart Lock User Manual User Manual H50-TYW Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. Reading this manual carefully before installation, and keep it for future reference.
  • Page 2 1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Pane Sliding Screws:16*5mm Back Panel Mortise Screws:10*5 (For Aluminum Door) Mortise:55*72 Mortise Screws:25*4mm (For Wooden Door) Card M5*20mm Screw for Door Thickness 35-50mm Mechanical Key M5*30mm Screw for...

  • Page 3: Specifications

    1.3.Specifications Aluminum door Suitable for Doors H50-TYW Wooden door Models Applicable Working Handle：Zinc Alloy Materials 6V/4x AA Batteries Panel：SS304 Voltage Door 35-65mm Lock Weight Thickness to WIFI Fingerprint(option) Unlocking Fingerprint+Password+Card≤240 Data Password Capacity （Fingerprint≤100） Card Mechanical key Silver Working -10℃-55℃...

  • Page 4: Installation

    2.Installation 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door. For Front Panel: For Back Panel:...
  • Page 5 2.2. Installation Diagram(For 5572) Step 1 Install Mortise Step 2 Install Sliding Screw Casing Keep arrow direction(shows image) always upward. Step 3 Connect Front and Back Step4 Install Back Panel Panels Step5 Install the Battery...
  • Page 6 3.Operation 3.1.Number Pad “ 2 ” : UP(↑) 1#：set 2#: configure the network 1.Net config “ 8 ” : DOWN(↓) 2.Net Remov “ * ” : Cancel, Return, 4#：Request remote lock picking Exit and Delete 5#：Get a temporary password “ # ” : Confirm and End 6#：Time Updating 8#：updated Passage mode ：...

  • Page 7: Setting Guide

    3.2.4.Setting Guide (F+P 235 Users remain) Touch the keyboard to wake up the system —1# — New Adminis- trator Password or Fingerprint. +P 4 Users remain) Code 1. Adding Admin Fingerprint Password Code 2. Adding Users Card 3. Statistics Admin Fingerprint Normal Password...
  • Page 8 4. Add tuya smart app(optional) 4.1.Download search [ TuyaSmart ] in various app stores or scan the QR code above to download 4.2.Register 1.Click “Sign Up”and read the Privacy Policy after it pops up. Click “Agree” and enter the registeration page. 2.You can use email or mobile number as your account to register.
  • Page 9 4.4.Using the APP 4.4.1. Add Lock 1. Tap Add Device on the Home page or + in the upper right corner of the page to go to the Add Device page. Currently, you can manually add devices or search for devices to add to the app. Attention：You should be add admin first!!! Method: ○...

  • Page 10: User Management

    b) Remote unlock 1.Click on the APP homepage enter corresponding door lock page 2.Door lock keyboard press “ 4 ” + “ # ” Request remote lock picking 3.The mobile APP will receive application information, and click "Ok" to open the lock 4.4.3.Alarm Automatically report...
  • Page 11 1.Click on the added user, you can edit the corresponding user opening information of a user 2.The lock and the app are synchronized through cloud information: enter the number of the door opening method on the lock. For example, Peter sets a password number 001 on the lock, then enter 1 in the app as shown in Figure 4, and use this number 001 later Password to open the door, the door opening record in the app will show that the door opened by Peter，But if the user information is...
  • Page 12 5. FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can’t I unlock it after open the You need to perform an unlock verification in any passage mode method, than the passage mode will take effect. 3) What is the purpose of Auto Lock You can set how long to lock after unlocking 4）After installation, touch sensing...
  • Page 13 Guarantee Customer Name： Customer Calls ： Purchase Date ： Product Name ： Product Model ： Note: 1) Please keep this card so that you can use it when you need warranty service. 2) We provide you with a one-year warranty from the date of purchase. 3) This warranty service is valid for customers in any country in the world.
