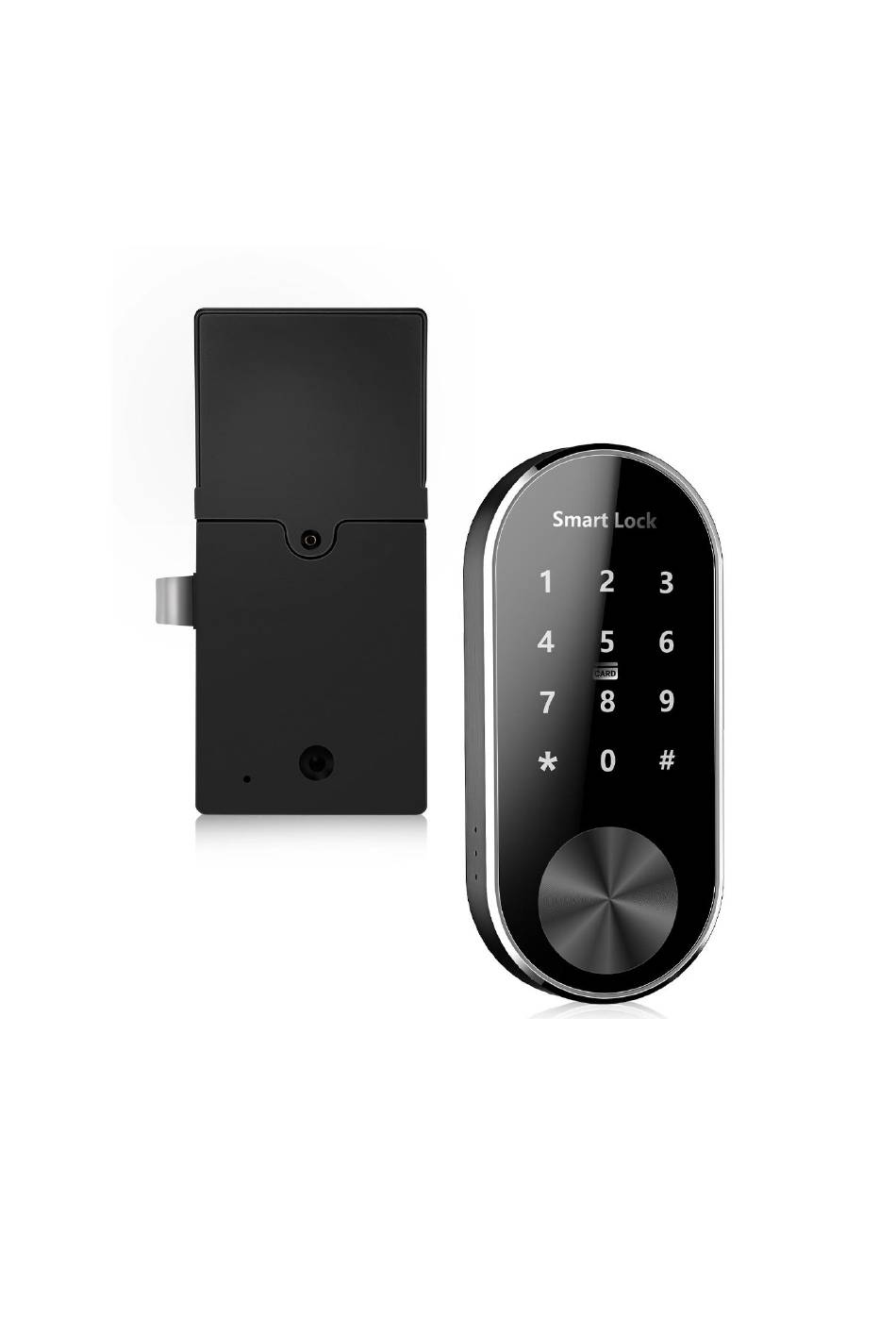

- Page 1 Smart Lock User Manual Model：Q20 Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please charge for the battery when low wattage alarm. 3. Reading this manual carefully before installation, and keep it for future reference.
- Page 2 1.Lock Structure 2.Door frame direction Open left Open right...
-
Page 3: Installation Diagram
3.Installation Diagram Step 1 Hole Size Step 2 Install Sliding Screw Casing Step 3 Connect Front and Back Panels Step 4 Install Back Panel Step 5 Install the Battery Step6 Install gusset Note： The distance should be controlled at about 2.5mm. If the distance is large, the lock tongue will not buckle the box... -
Page 4: Specifications
4.Specifications Suitable for Models Materials Zinc Alloy 125*58*19mm Front Panel Lock Size Base:58mm 145*65*22 mm Back Panel Lock Size Base:22mm Lock Weight 2.5KG Bluetooth Password Unlocking Way Card Gateway(option) Color Black Aluminum door Doors Applicable Wooden door Working Voltage 6V/4x AA Batteries Door Thickness to Fit 10-25MM 150 pcs passcode... - Page 5 5.Registration 5.1 Connect lock to the phone 1) Android mobile phone, please scan the left QR code as above 2) Apple mobile phone, please scan the right QR code as above 3) Register a new account (phone number or email) or login with an existing account. 4) Touch the lock screen to light, and click "+”...
-
Page 6: User Management
5.2 User Management 5.2.1 Bluetooth management After mobile phone and door lock connected, Click " " as show as figure2- 1 to unlock.(the phone is within 5meters from the door lock) 5.2.2 Remote control management(Option) After confirming that your phone and door lock are connected to the gateway,Click " "... - Page 7 5.2.7 IC Cards management Click " " as shown in finger 2-1→Click " "→Add IC Cards as finger 2-6 Enter Recipient account of TTlock...
-
Page 8: Packing List
Packing List Picture Name Strike Box Card Front Pane Back Panel Quantity 20MM Picture 40MM 12MM 30MM M4*12mm Screw*1 Screw Screw Screw Name M4*20mm M4*30mm M4*40mm Quantity 50MM Picture M4*40mm Name User Manual Mortise Screws:25*4mm Screw*1 Quantity... - Page 9 Guarantee Customer name： Customer calls ： Purchase date ： Product name ： Product model ： Note: 1) please keep this card so that you can use it when you need warranty service. 2) we provide you with a one-year warranty from the date of purchase. 3) this warranty service is valid for customers in any country in the world.
