Summary of Contents for Smart Lock S31

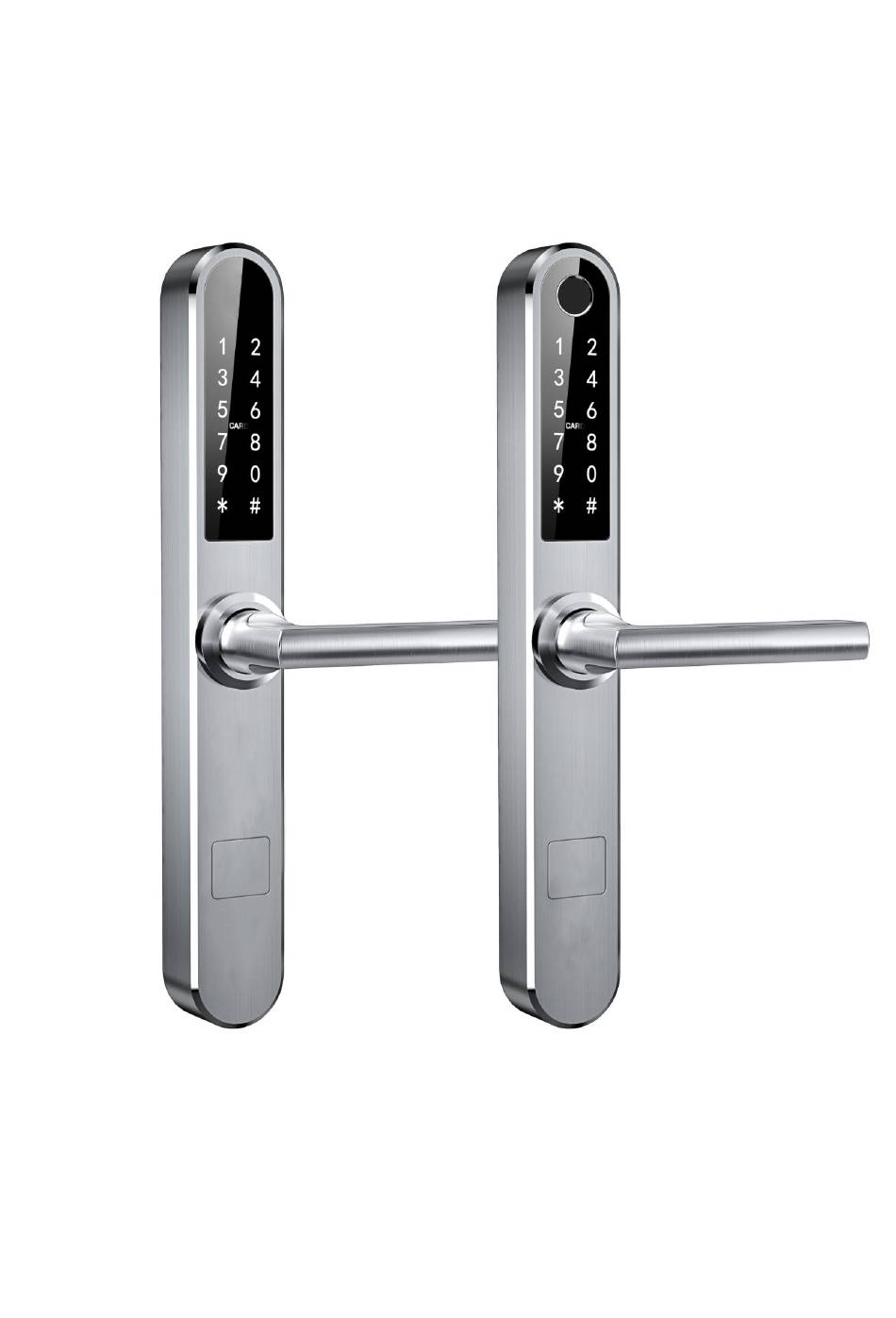

- Page 1 Smart Lock User Manual Model：S31 Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please charge for the battery when low wattage alarm. 3. Reading this manual carefully before installation, and keep it for future reference.
- Page 2 1.Lock Structure 2.Mortise...
-
Page 3: Installation
3.Installation 3.1 Turn the handle（Adjust as needed） Notice: Adjust the handle according to door opening direction, The arrow must keep point to the same direction of the handle. -
Page 4: Installation Diagram
3.2 Installation Diagram Step 1 Install Mortise Step 2 Install Square Shaft Step 3 Install Sliding Screw Casing Step 4 Connect Front and Back Panels Wires The screw casing place is adjustable from 55mm to 100mm far from the square shaft. -
Page 5: Specifications
4.Specifications Suitable for Models Materials SS304 Front Panel Lock Size 280*38*25mm Back Panel Lock Size 280*38*25mm Lock Weight 2.5KG Bluetooth Fingerprint Unlocking way Password Card Mechanical key Silver Black Color Golden Gray Aluminum Door Wooden Door Doors Applicable Sliding Door Swing Door Working Voltage 6V/4x AAA Batteries... - Page 6 5.Registration software (iOS version) downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 5.1 Connect lock to the phone 1) Android mobile phone, please scan the left QR code as above 2) Apple mobile phone, please scan the right QR code as above 3) You can also search for TTLock in the APP store(Google Play)to download 4) Register a new account (phone number or email) or login with an existing account.
-
Page 7: User Management
5.2. User Management 5.2.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " "to unlock.(the phone is within 5meters from the door lock) 5.2.2. Setting Passcode Passcodes are also a way to unlock. - Page 8 5.2.4. Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it nee ds to be added first. The adding process needs to be performed by the app beside the lock. The validit y period of the IC can be set, it can be permanent, or it can be limited in time.
-
Page 9: Gateway Management
Gateway management (Optional) The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. Meanwhile, it can remotely delete and modify the password. -
Page 10: Troubleshooting
To eliminate the above situation, you need to remove the lock ,check whether the wires of the lock body are squeezed, and the re-wire. 9)What is the reason why the smart lock Poor battery quality consumes fast power? Short circuit... - Page 11 Packing List Photo Name Front Panel Back Panel Mortise ： 3585 IC Card Photo Name Mechanical Key Waterproof Rubber Strike and Strike U-Clip Plate Photo Name User Manual Mortise Screws:10*5 Sliding Screw (For Aluminum Door) Screws:16*5 Stubs:35*8mm...
- Page 12 Photo Name Straight Through Straight Through Mortise Screws:25*4mm Plating-Iron Spindle for Plating-Iron Spindle for (For Wooden Door) Door Thickness Door Thickness 35mm-55mm 45mm-75mm Photo Name M5*30mm Screw M5*50 Screw M5*70 Screw 30mm and 50mm for door thickness 50mm and 70mm for door thickness 35mm-55mm for lower, door thickness...
- Page 13 Guarantee Customer Name： Customer Calls ： Purchase Date ： Product Name ： Product Model ： Note: 1) Please keep this card so that you can use it when you need warranty service. 2) We provide you with a one-year warranty from the date of purchase. 3) This warranty service is valid for customers in any country in the world.
