Smart Lock H92B-TB User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

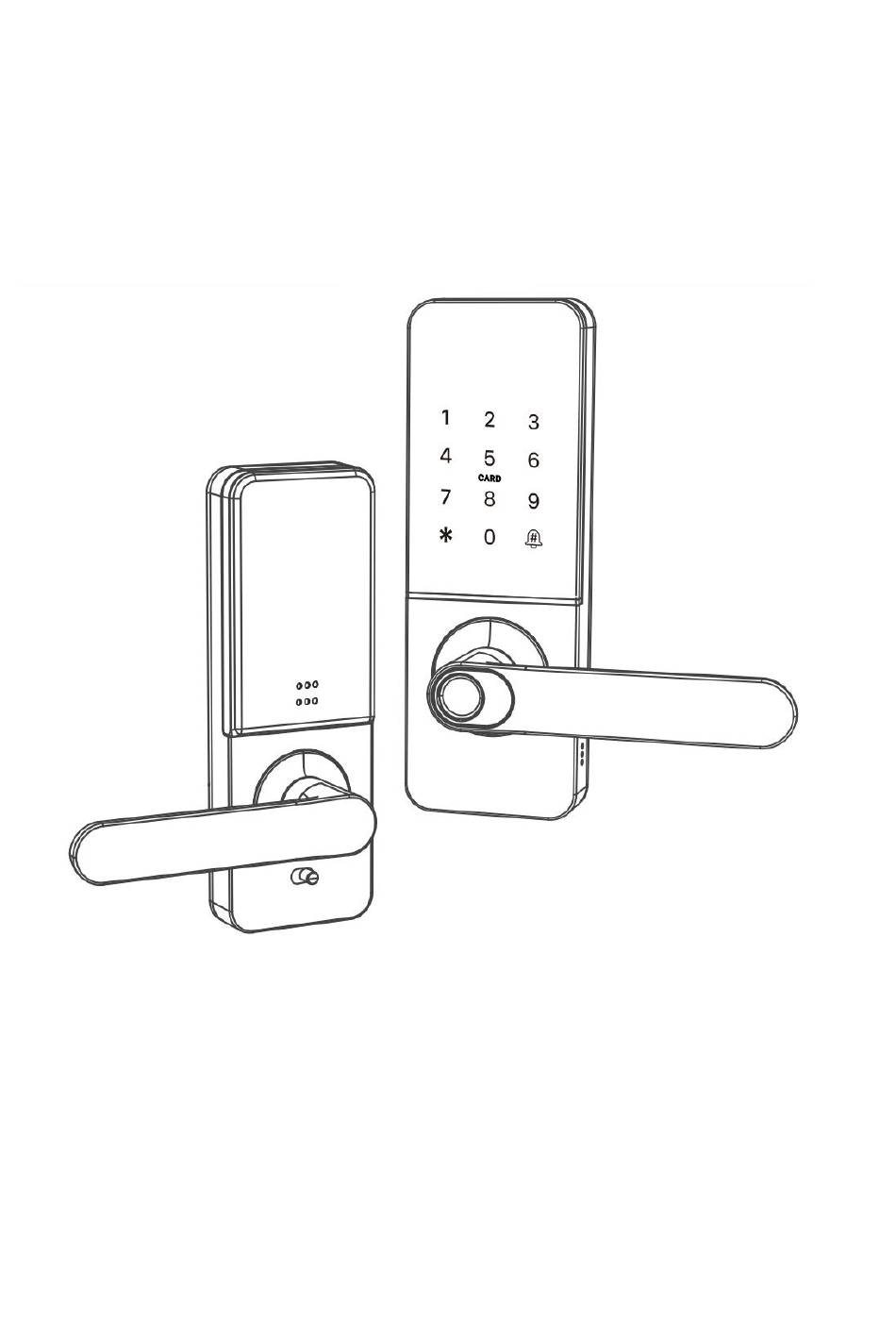

Smart Lock
User Manual
H92B-TB
Special Attention:
1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3. Reading this manual carefully before installation, and keep it for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the H92B-TB and is the answer not in the manual?

Questions and answers

Related Manuals for Smart Lock H92B-TB

Summary of Contents for Smart Lock H92B-TB

  • Page 1 Smart Lock User Manual H92B-TB Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3. Reading this manual carefully before installation, and keep it for future reference.
  • Page 2 1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Mortise Screws:M4*20mm Front Panel (For Wooden Door) Mortise Screws:M5*10mm Back Panel (For Aluminum Door) Mortise 60mm Square shaft Card 80mm Square shaft Mechanical Key...
  • Page 3 1.3.Specifications Suitable for Doors Aluminum door H92B-TB Models Applicable Wooden door Panel ： ADC12 Working Materials 6V/4x AA Batteries Handle ： ADC12 Voltage Door Thickness Lock Weight 1.2KG 35-60mm to Fit Bluetooth Fingerprint(option) Fingerprint ： 200 Password Unlocking Data Capacity Password ：...
  • Page 4 2.Installation 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door. For front Panel 1.Loosen the screws 2.Adjust the door handle 3.complete direction and Tighten the screws For Back Panel 2.Adjust the door handle 3.complete 1.Loosen the screws direction and Tighten the screws...
  • Page 5 2.2. Installation Diagram Step 1 Install Mortise Install the mortise into the door with screws Step 2 Install Exterior Assembly 1.Install the waterproof rubber plate to exterior assembly. 2.Install square shaft into spindle hub,keep the arrow pointing down. 3.Install 2 screw casings. 4.Install Install the exterior assembly to the door.
  • Page 6 Step 3 Install Interior Assembly 1. Install the waterproof rubber plate. 2. Loosing the Battery cover . 3. Connect the wire. 4.Fix Exterior Assembly and Interior Assembly with screws. Step 4 Install batteries 1. Insert battery 2. Install the battery cover. 3.
  • Page 7 3.Operation 3.1.Registration The software (iOS version) can be downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 3.2. Connect lock to the phone 1) please scan the QR code to download the app 2) You can also search for TTLock in the APP store(Google Play)to download 4) Register a new account (phone number or email) or login with an existing account.
  • Page 8 3.4.User Management 3.4.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " "to unlock.(the phone is within 5meters from the door lock) 3.4.2. Setting Passcode Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock.
  • Page 9 3.4.4.Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be performed by the ap p beside the lock.The validity period of the IC can be set, it can be permanent, or it can b e limited in time.
  • Page 10 3.5. Gateway management(Optional) The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record.
  • Page 11 Check to see if the fingerprint is working properly(Press to see if there is any responds. 6）What is the reason why the smart lock a) Large standby power consumption consumes fast power? b) Short circuit 7）There is no response to pressing the...
  • Page 12 Guarantee Customer Name： Customer Calls ： Purchase Date ： Product Name ： Product Model ： Note: Please keep this card so that you can use it when you need warranty service. We provide you with a one-year warranty from the date of purchase. This warranty service is valid for customers in any country in the world...
