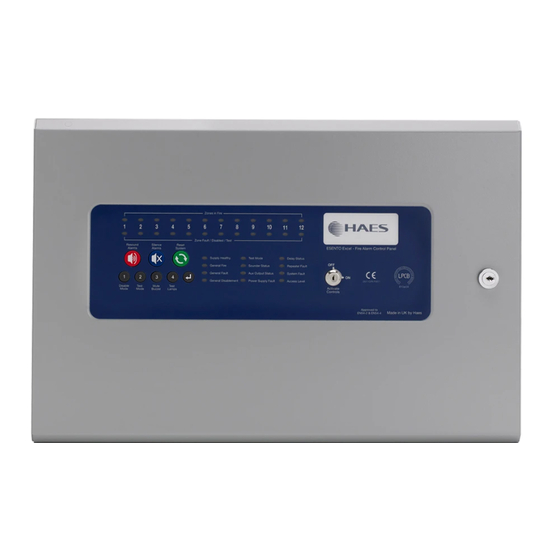

EN54 APPROVED 2 - 12 ZONE CONVENTIONAL CONTROL
PANEL
Installation, Commissioning &
Operating Manual
810a/04
S o f t w a r e V e r s i o n 4 . 0 & A b o v e
Approved Document UI-XLEN-01 Issue 7.0
www.acornfiresecurity.com
