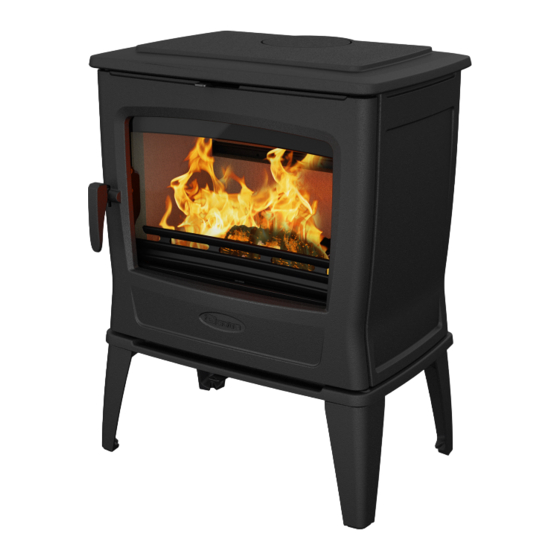

Dovre TAI 55 W Installation Instructions And Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATIEVOORSCHRIFTEN  EN GEBRUIKSAANWIJZING
INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
INSTALLATION ET MODE D'EMPLOI
EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG
INSTRUCCIONES DE INSTALACIÓN Y USO
REQUISITI PER L'INSTALLAZIONE E ISTRUZIONI PER L'USO
MONTERINGS- OG BRUKSANVISNING
TAI 45 W
TAI 55 W
HOUTKACHEL
WOOD STOVE
POELE A BOIS
HOLZ-FEUERSTÄTTE
ESTUFA DE LEÑA
STUFA A LEGNA
PEISOVN
TAI 45 WD
TAI 55 WD
03.27164.100 - 09/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAI 55 W and is the answer not in the manual?

Questions and answers

Related Manuals for Dovre TAI 55 W

Summary of Contents for Dovre TAI 55 W

  • Page 1 INSTALLATIEVOORSCHRIFTEN  EN GEBRUIKSAANWIJZING HOUTKACHEL INSTALLATION INSTRUCTIONS AND OPERATING MANUAL WOOD STOVE INSTALLATION ET MODE D’EMPLOI POELE A BOIS EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG HOLZ-FEUERSTÄTTE INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA DE LEÑA REQUISITI PER L'INSTALLAZIONE E ISTRUZIONI PER L'USO STUFA A LEGNA MONTERINGS- OG BRUKSANVISNING PEISOVN TAI 45 W...

  • Page 2: Table Of Contents

    Table of contents Introduction Performance declaration TAI 45 W/WD Performance declaration TAI 55 W/WD Safety Installation requirements General Flue Room ventilation Floor and walls Product description TAI W Product description TAI WD Installation Preparation Preparing the connection to the flue...

  • Page 3: Introduction

    Observe the following safety regulations when installing and using the appliance. In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an install- ation problem, please first contact your supplier.

  • Page 4: Performance Declaration Tai 45 W/Wd

    4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address for the authorised whose mandate covers the tasks spe- cified in article 12, subsection 2: 6.
  • Page 5 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...

  • Page 6: Performance Declaration Tai 55 W/Wd

    4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address for the authorised whose mandate covers the tasks spe- cified in article 12, subsection 2: 6.
  • Page 7 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...

  • Page 8: Safety

    Ensure that there is adequate ventilation in the Safety room in which the appliance is installed. If vent- ilation is insufficient, combustion will be incom- Please note: All safety regulations must be plete whereby toxic gases can spread through complied with strictly. the room.

  • Page 9: Room Ventilation

    The flue or chimney must be airtight and well- Room ventilation cleaned and guarantee sufficient draught. For good combustion, the appliance needs air (oxy- A draught/vacuum of 15 - 20 Pa during normal gen). This air is supplied via adjustable air inlets from operation is ideal.

  • Page 10: Product Description Tai W

    Carpets and rugs must be at least 80 cm away Product description TAI W from the fire. Use a fireproof floor plate to protect a flam- mable floor from any ash which may fall in front of the stove. The floor plate must comply with national standards.

  • Page 11: Product Description Tai Wd

    Note the location of the removable parts, so Product description TAI WD that you can re-position the parts in the correct place later on. 1. Open the door; see the following figure: 09-20021-111 1. Door 09-20021-112 2. Latch 3. Fire basket 2.

  • Page 12: Preparing The Connection To The Flue

    combustion. side inner plate left baffle plate below baffle plate above side inner plate right 10 back inner plate left and right Preparing the connection to the flue When connecting the appliance to the flue you have the choice of connecting via either the top or the rear. See the paragraphs "Connecting to the rear"...

  • Page 13: Installing And Connecting

    09-20020-371 09-20020-370 Connecting to the top Installing and connecting As standard, the appliance is delivered with the con- 1. Position the appliance in the correct place, and nection collar fitted for a connection at the top, see fol- make sure it is level. lowing figure.

  • Page 14: Lighting

    Do not use other fuels, as they can cause serious 1. Stack two layers of medium sized logs crosswise. damage to the appliance. 2. Stack two to three layers of kindling crosswise on top of the logs. The following fuels may not be used as they pollute the environment, and because they heavily pollute the 3.

  • Page 15: Burning Wood

    Allowable maximum amount of fuel when using wood with a moisture content of 15%: TAI 45 W/WD 9 kW can be filled with a maximum of 2 kg wood every 45 minutes. TAI 55 W/WD 11 kW can be filled with a maximum of 2.5 kg wood every 45 minutes.

  • Page 16: Extinguishing The Fire

    The primary air slide controls the air flow under the for the stove base plate and improves combustion. It grille (1). is a good idea to leave a thin layer of ash on the stove base plate. The secondary air slide controls the air flow in front of the glass (air-wash) (2).

  • Page 17: Maintenance

    Never use the stove without the fire-resistant Maintenance inner plates. Follow the maintenance instructions in this chapter to Cleaning the glass keep the appliance in good condition. Dirt clings less easily to well-cleaned glass. Proceed Flue as follows: 1. Remove dust and loose soot with a dry cloth. In many countries, you are required by law to have your chimney checked and maintained.

  • Page 18: Tai W Spare Parts

    OK. A special heat-resistant paint is supplied with the 09-20021-113 appliance to touch up any minor damage caused dur- ing transport. TAI 45 W spare parts Apply the heat-resistant paint in thin layers and leave to dry well before using the appliance. Pos. Part number Description Quantity 01 03.66557.002 left-hand bottom of...

  • Page 19: Tai Wd Spare Parts

    TAI WD spare parts 09-20021-114 TAI 45 WD spare parts Pos. Part number Description Quantity 01 03.66557.002 left-hand bottom of the fire compartment 02 03.66558.002 right-hand bottom of the fire compartment 03 03.77455.002 fire basket 04 02.05244.000 ash pan 05 03.05404.002 ash removal port 06 03.77560.000 side inner plate left 07 03.77557.000 baffle plate below 08 03.76192.000 baffle plate above...

  • Page 20: Appendix 1: Technical Data

    Appendix 1: Technical data Model TAI 45 W/WD Nominal output 9 kW Flue connection (diameter) 150 mm Weight 130 kg Recommended fuel Wood Fuel property, max. length 45 cm Mass flow of flue gasses 7.7 g/s Flue gas temperature measured in the measurement section 246 °C Temperature measured at appliance exit 299 °C...
  • Page 21 Model TAI 55 W/WD Nominal output 11 kW Flue connection (diameter) 150 mm Weight 150 kg Recommended fuel Wood Fuel property, max. length 45 cm Mass flow of flue gasses 7 g/s Flue gas temperature measured in the measurement section 283 °C Temperature measured at appliance exit 351 °C Minimum draught...

  • Page 22: Appendix 2: Dimensions

    Appendix 2: Dimensions TAI 45 W 09-20021-116 Subject to change because of technical improvements...
  • Page 23 TAI 45 WD 09-20021-117 Subject to change because of technical improvements...
  • Page 24 TAI 55 W 09-20021-118 Subject to change because of technical improvements...
  • Page 25 TAI 55 WD 09-20021-119 Subject to change because of technical improvements...

  • Page 26: Appendix 3: Distance From Combustible Material

    Appendix 3: Distance from combustible material TAI 45 W/WD 1260 *without/with protected chimney 09-20021-119 Unprotected/protected flue Combustible material Incombustible material, thickness 100 mm Subject to change because of technical improvements...
  • Page 27 TAI 55 W/WD 1260 *without/with protected chimney 09-20021-119 Subject to change because of technical improvements...
  • Page 28 Dimensions of fireproof protective plate 09-20020-374 Minimum dimensions of fireproof floor plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...

  • Page 29: Appendix 4: Diagnosis Diagram

    Appendix 4: Diagnosis diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in appliance is too intense, is hard to adjust Deposit on the glass possible cause possible solution A cold flue usually fails to create sufficient draught.

  • Page 30: Index

    Index Door opening sealing rope Draught 20-21 Adding wood Drying wood smoking appliance Adverse weather conditions, do not burn wood 16 Aerating the fire Efficiency 5, 7, 20-21 Air combustion control Email maintenance Air control External air supply Air inlets connecting to Air leak Extinguishing the fire...
  • Page 31 topping up Preventing chimney fire unsuitable Primary air inlet wood Remove Glass fire-resistant inner plates cleaning Removing ash deposit Screens Heat, insufficient 16, 29 deposit Sealing rope for door Secondary air inlet Inner plate vermiculite Smoke during first use Inner plates, fire-resistant remove Smoke emissions into the room Installing...
  • Page 32 chimney fires fire-resistant inner plates flammable materials glass broken or cracked 8, 17 hot surface placing a load on door requirements stove glass cleaner terms and conditions for insurance ventilation Weight 20-21 Wood damp drying right sort storing will not stay lit Subject to change because of technical improvements...
