INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING
INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
INSTALLATION ET MODE D'EMPLOI
EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG
INSTRUCCIONES DE INSTALACIÓN Y USO
REQUISITI PER L'INSTALLAZIONE E ISTRUZIONI PER L'USO
MONTERINGS- OG BRUKSANVISNING

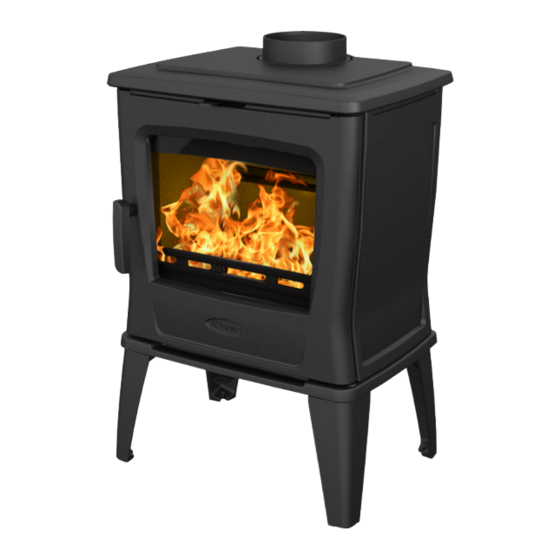

TAI 35W
HOUTKACHEL
WOOD STOVE
POELE A BOIS
HOLZ-FEUERSTÄTTE
ESTUFA DE LEÑA
STUFA A LEGNA
ILDSTED
03.27161.000 - 03/2015
Advertisement
Table of Contents
Related Manuals for Dovre TAI 35W
Summary of Contents for Dovre TAI 35W

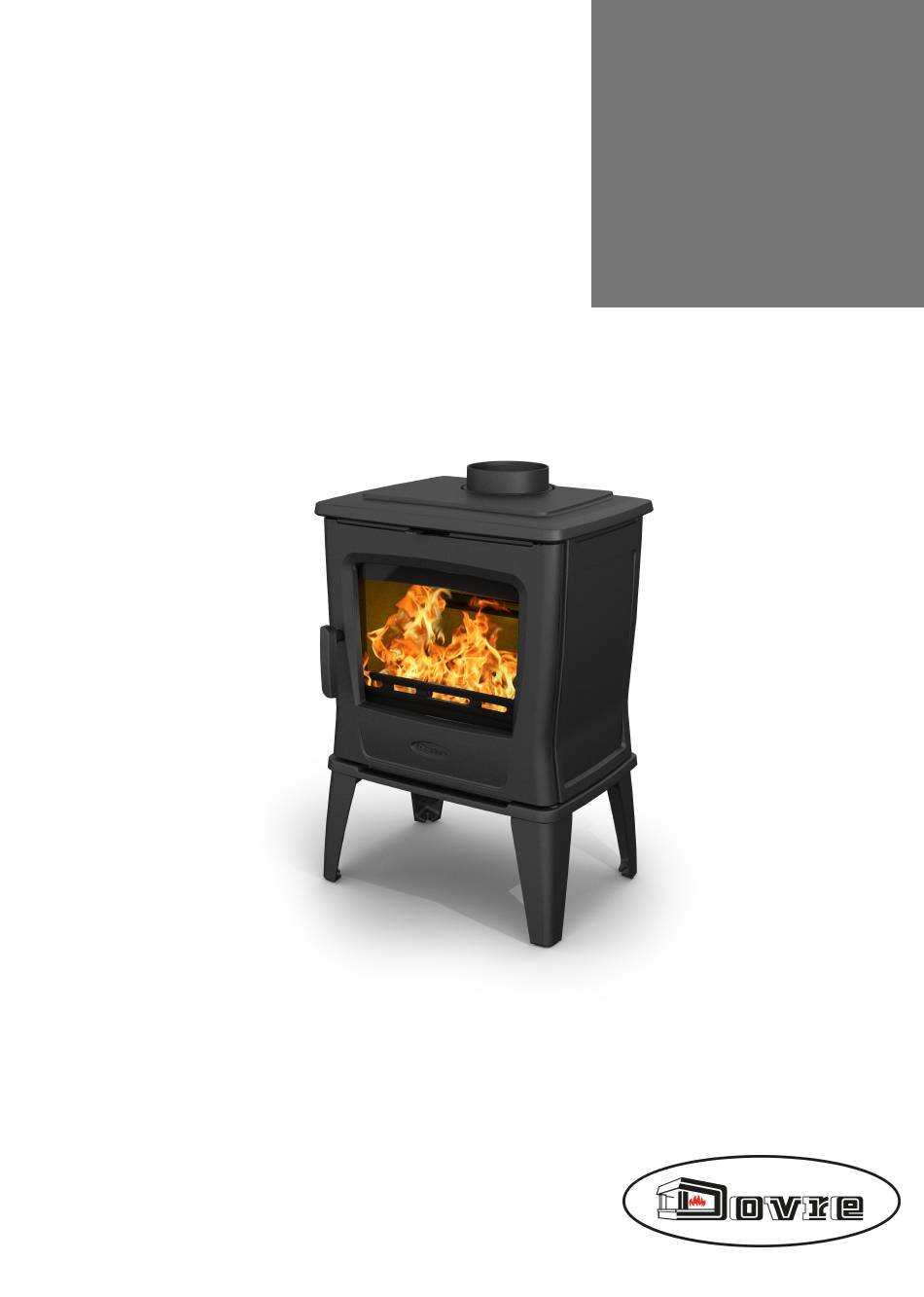

- Page 1 INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING HOUTKACHEL INSTALLATION INSTRUCTIONS AND OPERATING MANUAL WOOD STOVE INSTALLATION ET MODE D’EMPLOI POELE A BOIS EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG HOLZ-FEUERSTÄTTE INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA DE LEÑA REQUISITI PER L'INSTALLAZIONE E ISTRUZIONI PER L'USO STUFA A LEGNA MONTERINGS- OG BRUKSANVISNING ILDSTED TAI 35W...
-
Page 2: Table Of Contents
Extinguishing the fire Removing ash Fog and mist Resolving problems Maintenance Flue Cleaning and other regularly maintenance TAI 35W spare parts Appendix 1: Technical data Appendix 2: Dimensions Appendix 3: Distance from combustible material Appendix 4: Diagnosis diagram Index Subject to change because of technical improvements... -
Page 3: Introduction
Observe the following safety regulations when installing and using the appliance. In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an install- ation problem, please first contact your supplier. -
Page 4: Performance Declaration
4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address for the authorised whose mandate covers the tasks spe- cified in article 12, subsection 2: 6. - Page 5 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...
-
Page 6: Safety
sit on the opened door and do not place heavy Safety objects on the door. Please note: All safety regulations must be Ensure that there is adequate ventilation in the complied with strictly. room in which the appliance is installed. If vent- ilation is insufficient, combustion will be incom- Please read carefully the instructions supplied plete whereby toxic gases can spread through... -
Page 7: Room Ventilation
The flue must satisfy the following requirements: The flue or chimney must be made of fire-resistant material, preferably ceramics or stainless steel. The flue or chimney must be airtight and well- cleaned and guarantee sufficient draught. A draught/vacuum of 15 - 20 Pa during normal operation is ideal. -
Page 8: Product Description
Keep sufficient distance between the appli- Product description ance and combustible materials such as wooden walls and furniture. The connecting tube also radiates heat. Ensure that there is sufficient distance or a shield between the connecting tube and combustible material. The rule of thumb for a single-walled tube is a distance of 3x the diameter. -
Page 9: Installation
a. Remove the fire basket (5). Installation b. Raise the baffle plate (1) at the front, pull the baffle plate 2 cm forwards and allow the baffle Preparation plate to drop down at the back Please check the appliance for damage caused dur- c. -
Page 10: Preparing The Connection To The Flue
09-20020-364 09-20020-367 3. Remove the cover (6) from the back wall. 4. Fit the connection collar (2) and the sealant (3) to 1. Remove the stove from the pallet by removing the the back wall using the materials supplied (1,4,5). bolts (1). -
Page 11: Installing And Connecting
On delivery, the connection at the rear is closed, so dows and doors for a while in the area in which the that a back cover does not need to be installed. appliance is located. Fuel Because of the distance to the (combustible) wall, the protection plate may not be removed in the back shield. -
Page 12: Lighting
Allowable maximum amount of fuel when using wood with a moisture content of 15%: 09-20500-016 TAI 35W 6.5 kW can be filled with a maximum of 1.4 kg of wood every 45 minutes. 4. Close the appliance door and open the primary Do not fill the combustion chamber more than and secondary air inlets;... -
Page 13: Controlling Combustion Air
Open stacking Controlling combustion air The appliance has various features for air control; see next figure. 09-20500-017 If the logs are stacked openly, the wood will burn quickly as the oxygen can reach each log easily. If you want to use the stove for a short while, make an open stack. -
Page 14: Extinguishing The Fire
better to burn wood intensely for a few hours instead of having a low intensity fire for a long period of time. Control the air supply using the air vent. The air inlet not only supplies air to the fire but to the glass as well, so that it does not quickly become dirty. -
Page 15: Cleaning And Other Regularly Maintenance
4. Rub the glass clean with a dry cloth or kitchen tis- Cleaning and other regularly sue. maintenance Do not use abrasive or aggressive products to clean the glass. Do not clean the appliance when it is still warm. Wear household gloves to protect your hands. Clean the exterior of the appliance with a dry lint- If the glass in the appliance is broken or free cloth. -
Page 16: Tai 35W Spare Parts
Allow the sealant to harden fully before lighting the appliance, as any moisture in the sealant will form bubbles, resulting in a new air leak. TAI 35W spare parts 09-20020-369 Subject to change because of technical improvements... -
Page 17: Appendix 1: Technical Data
Appendix 1: Technical data Model TAI 35W Nominal output 6.5 kW Flue connection (diameter) 150 mm Weight 100 kg Recommended fuel Wood Fuel property, max. length 35 cm Mass flow of flue gasses 4.3 g/s Flue gas temperature measured in the measurement 256 °C section Temperature measured at appliance exit... -
Page 18: Appendix 2: Dimensions
Appendix 2: Dimensions TAI 35W 09-20020-372 Subject to change because of technical improvements... -
Page 19: Appendix 3: Distance From Combustible Material
Appendix 3: Distance from combustible material TAI 35W 09-20020-363 Unprotected/protected flue Combustible material Incombustible material, thickness 100 mm Subject to change because of technical improvements... - Page 20 TAI 35W - Dimensions of fireproof protective plate 09-20020-374 Minimum dimensions of fireproof floor plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...
-
Page 21: Appendix 4: Diagnosis Diagram
Appendix 4: Diagnosis diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in appliance is too intense, is hard to adjust Deposit on the glass possible cause possible solution A cold flue usually fails to create sufficient draught. -
Page 22: Index
Index Dimensions Door opening sealing rope Adding wood Draught smoking appliance Drying wood Adverse weather conditions, do not burn wood 14 Aerating the fire Air combustion control Efficiency 5, 17 Air control Email maintenance Air inlets External air supply Air leak connecting to Extinguishing the fire Ashes... - Page 23 Fuel adding 12-13 Opening necessary amount door suitable topping up unsuitable Paint wood Smoke during first use 11 Glass Particulate emission cleaning deposit Preventing chimney fire Primary air inlet Heat, insufficient 14, 21 Remove fire-resistant inner plates Inner plate Removing ash vermiculite Inner plates, fire-resistant remove...
- Page 24 Vermiculite fire-resistant Vermiculite inner plates Walls fire safety Warning cast iron inner plates chimney fire 11, 13 chimney fires fire-resistant inner plates flammable materials glass broken or cracked 6, 15 hot surface placing a load on door requirements stove glass cleaner terms and conditions for insurance ventilation Weight...
