NOTE: Please read all instructions before assembling the bed cover.
Keep the boxes and packaging until the installation is complete. Unpack carefully to prevent scratching. DO NOT remove any
protective films from the cover and canister until after the installation is complete. DO NOT USE A LUBRICANT OR THREAD-
LOCKER ADHESIVE ON THE ROLLING COVER. USE OF THESE WILL VOID THE WARRANTY. See the maintenance page
for proper care.
A

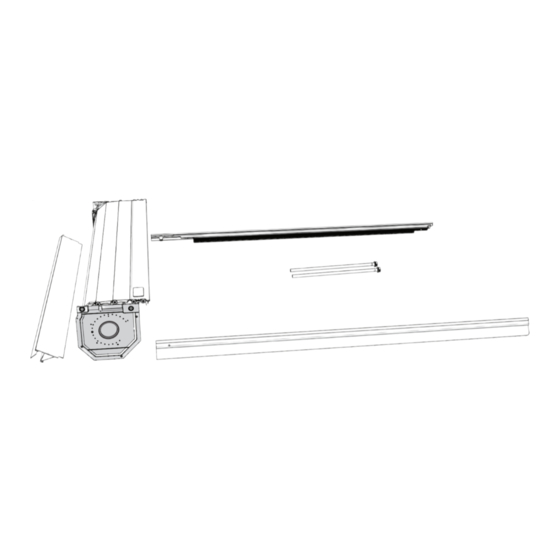

COVER PARTS
INCLUDED IN YOUR KIT
1x Front cover
A
1x Driver side rail
B
1x Passenger side rail
C
(Rail is designated by a green sticker)
1x Spiral canister
D
4x Canister mounting screws (10-32 x 7/16")
E
2x Front cover mounting screws (10-24 x 3/4")
F
1x 1/8" Allen wrench
G
Rail Mount
1x 6mm Allen wrench
H
Bolt
2x Drain tubes
I
2x Bulkhead gasket (Only for 2016-2023)
J
5' Model Parts
PARTS INCLUDED IN YOUR KIT
4x 0.050 Adjustment shim
K
4x Cleats
L
4x Mounting blocks
M
4x 1/4" Flat washer
N
4x Lock washer
O
4x 1/4-28 x .75 Fastener
P
4x 3/8-16 x 1.5 Fastener
Q
2x Foam pieces (Only for 2016-2023)
R
4x 3/8" Flat washer (Only for
S
2024+ 5' models)
S
TOOLS REQUIRED
•
Isopropyl alcohol
•
T-30 Torx bit
•
3/8" Drive short extension
•
Ratchet
•
7/16" Wrench
RealTruck Retrax
917 S. 46th St., Grand Forks, ND 58201
800-206-4070 © RealTruck Group, Inc., 2024
C
F
E
D
B
E
C-Channel
TOOLS REQUIRED
•
#2 Phillips screwdriver
Retrax
•
Rail
9/16" Wrench
•
C-Channel
Scissors or utility knife
•
Isopropyl alcohol
Rubber Rail Adjustment Spacer
K
L
M
N
O
P
Q
R
Tacoma 16-23 & 24+ 5' Only
RetraxONE/RetraxPRO
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 800-206-4070 Mon - Fri, 8:30 a.m. - 5:00 p.m. CST
or email retrax@retrax.com
H
I
G
F
G
H
Retrax
Rail
Cleat
Rail Spacer Block
6' Model Parts
PARTS INCLUDED IN YOUR KIT
4x 0.050 Adjustment shim
T
4x Cleats
U
4x Mounting blocks
V
4x 1/4" Flat washer
W
4x Lock washer
X
4x 1/4-28 x 1.5 Fastener
Y
4x 3/8-16 x 1.5 Fastener
Z
4x Plastic spacer blocks
AA
NOTE:
Most parts above for 5' and
6' models are the same. Just
lettered differently for install
purposes. Parts (P) and (Y)
are different along with parts
(R) and (AA).
J
I
Retrax
Rail
C-Channel
Rail Mount
Bolt
Cleat
Rail Spacer Block
T
V
W
Y
AA
4000-208 IR-RTA-01 Rev. 4.10.24
Rail M
J
Bolt
Rubber
U
X
Z
Advertisement
Table of Contents
Related Manuals for Retrax REALTRUCK RetraxPRO
Summary of Contents for Retrax REALTRUCK RetraxPRO
- Page 1 Parts will be shipped to you directly. Call 800-206-4070 Mon - Fri, 8:30 a.m. - 5:00 p.m. CST or email retrax@retrax.com NOTE: Please read all instructions before assembling the bed cover. Keep the boxes and packaging until the installation is complete. Unpack carefully to prevent scratching. DO NOT remove any protective films from the cover and canister until after the installation is complete.
- Page 2 Black Plastic Cap Passenger Side Rail White Plastic 1/4” Flat Washer Spacer Block 1/4-28 x 1.5L Fastener Cleat RealTruck Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © RealTruck Group, Inc., 2024 4000-208 IR-RTA-01 Rev. 4.10.24...
- Page 3 RETRAX flat washer (N) on the inside of the Retrax rail and cleat on the outside or For 6’ models use the 1/4-28 x 1.5L fastener (Y) and 1/4” flat washer (W) on the inside of the rail and spacer block and cleat on the outside. Attach with 7/16” wrench.
- Page 4 1/8” from the tailgate. Shipping Bracket 1/8” RealTruck Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © RealTruck Group, Inc., 2024 4000-208 IR-RTA-01 Rev. 4.10.24...
- Page 5 If rails are too far apart add 0.50 shim (K) for 5’ models or (T) for 6’ models between rail and aluminum spacer. Continue adjustment until rails are parallel. 6’ Model 5’ Model 0.050 Shim 0.050 Shim RealTruck Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © RealTruck Group, Inc., 2024 4000-208 IR-RTA-01 Rev. 4.10.24...
- Page 6 (2) this device must accept any interference received, including interference that may cause undesired operation. RealTruck Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © RealTruck Group, Inc., 2024 4000-208 IR-RTA-01 Rev. 4.10.24 Remove any snow or...
-
Page 7: Final Notes
Do not ever exceed the maximum vehicle capacity when loading the vehicle. RealTruck Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © RealTruck Group, Inc., 2024 4000-208 IR-RTA-01 Rev. 4.10.24... -
Page 8: Maintenance And Care
The bearings are sealed and will not need any lubricant or spray. If the rails feel sticky, run paraffin wax along the rail. RealTruck Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © RealTruck Group, Inc., 2024 4000-208 IR-RTA-01 Rev. 4.10.24... -
Page 9: Safety Instructions
OPENING AND USING THE COVER To use your RETRAX cover, open the lock cover and press the button at the center of the latch to pop open the handle. CLOSING AND LOCKING THE COVER To latch your RETRAX cover anywhere along the rail, push down firmly on the end of the lock handle using both thumbs. Insert the key and make sure it locks and unlocks. -
Page 10: Limited Warranty
This warranty gives you specific legal rights. As a consumer, you may also have additional rights and remedies under the laws of your state. Register online at https://realtruck.com/retrax-warranty. REGISTER Serial Number___________________________________________________ YOUR WARRANTY ONLINE Date of Purchase ________________________________________________ RealTruck Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © RealTruck Group, Inc., 2024 4000-208 IR-RTA-01 Rev. 4.10.24...
