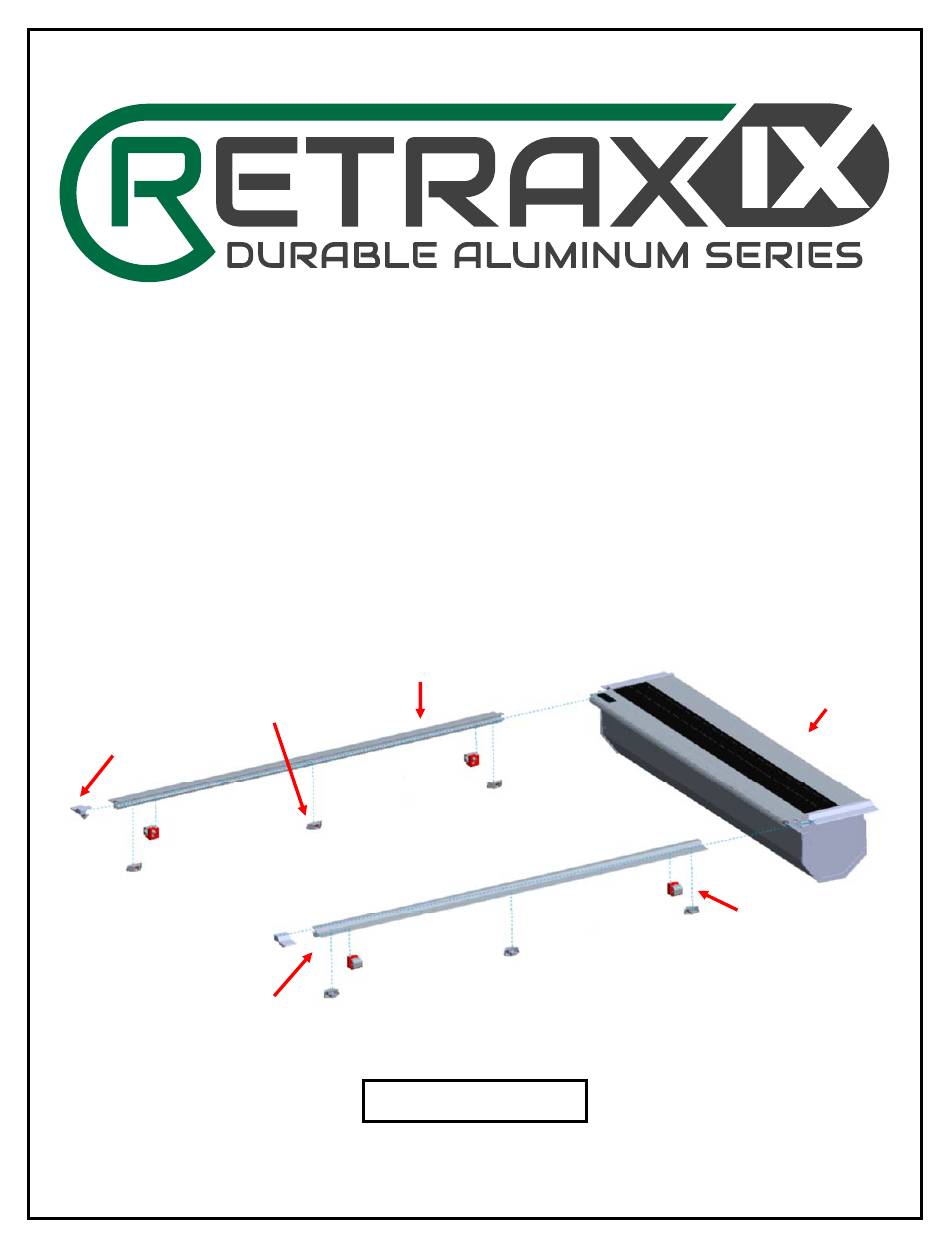

- Page 1 RETRACTABLE TRUCK BED COVER Installation Instructions ©RHLLC, 2017 Driver side rail Spiral Canister (6) Latch stops (2) Rail end caps (4) Clamps Passenger side rail Exploded View...
-
Page 2: Parts Checklist
Table of Contents If you have a Toyota Tundra 2007-up, please see page 6 for special installation instructions! Pre-assembly Guidelines Page 1 Steps 9-10 Page 5 Steps 1-4 Page 2 Toyota Tundra 5.5’ ‘07-up Page 6 Steps 5-6 Page 3 Steps 7-8 Page 4 Pre-assembly Guidelines... - Page 3 Assemble rail end caps Assemble latch stops Insert the 5/16-18 x 0.500 bolt (B) through the hole in Insert the 5/16-18 x 0.500 bolt (B) through the hole in the bottom of the rail end cap. Start threading the the bottom of the latch stop.
- Page 4 Insert latch stops Slide 1 assembled latch stop into each rail opening and position it 1/16” away from fastener (D). Tighten the fastener head on the latch stop until it does not move. Do not exceed 5ft -Ibs of torque when tightening the latch stops. 3 latch stops are supplied for each rail.
- Page 5 Position the latch stops on the rails On each rail, slide the rearmost latch stop flush with the Rail End Cap and tighten bolt (B) on underside until latch stop is tight and doesn’t move. The remaining latch stops can be placed at the customer’s desired location anywhere in the rail as long as they are in the It is crucial that these are positioned at the same place on each rail in order for same position on both rails.
-
Page 6: Final Notes
Align aluminum rail Align the aluminum rails with the spiral rail section so that they are in a straight line (see red line on image). Then turn nylon set screw (E) on each clamp until it contacts the truck bed rail. Measure and adjust rail position Be sure rails are not tipped in or out of truck bed. - Page 7 Toyota Tundra 2007-up Installation 5.5 Ft. bed Check the parts shown here, this model has 2 different styles of clamps and different mounting instructions. (2) Clamps that will be (2) Clamps that will used at the TAILGATE be used at the CAB end in step 8.
- Page 8 Under no circumstances shall the manufacturer be liable for special, indirect, incidental or consequential damages ■ sustained in connection with this model cover. Please call 800-206-4070 with any questions, to file a warranty claim, or to discuss a return. Retrax Customer Support: 800-206-4070 ©RHLLC, 2017...
