Retrax REALTRUCK RetraxONE Installation Sheet

NOTE: Please read all instructions before assembling the bed cover.
Keep the boxes and packaging until the installation is complete. Unpack carefully to prevent scratching. DO NOT remove any
protective films from the cover and canister until after the installation is complete. DO NOT USE A LUBRICANT OR THREAD-
LOCKER ADHESIVE ON THE ROLLING COVER. USE OF THESE WILL VOID THE WARRANTY. See the maintenance page
for proper care.
A
COVER PARTS
INCLUDED IN YOUR KIT

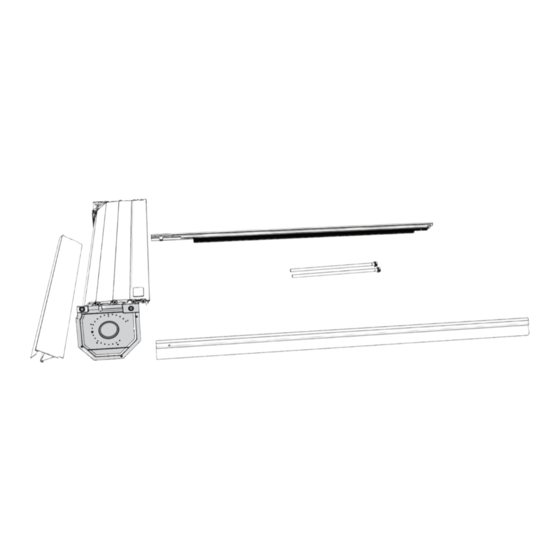

1x Front cover
A
1x Driver side rail
B
1x Passenger side rail
C
(Rail is designated by a green sticker)
1x Spiral canister
D
4x Canister mounting screws (10-32 x 7/16")
E
2x Front cover mounting screws (10-24 x 3/4")
F
1x 1/8" Allen wrench
G
Rail Mount
1x 6mm Allen wrench
H
Bolt
2x Drain tubes
I
2x Bulkhead gasket (Only for 2016-2023)
J
5' Model Parts
PARTS INCLUDED IN YOUR KIT
4x 0.050 Adjustment shim
K
4x Cleats
L
4x Mounting blocks
M
4x 1/4" Flat washer
N
4x Lock washer
O
4x 1/4-28 x .75 Fastener
P
4x 3/8-16 x 1.5 Fastener
Q
2x Foam pieces (Only for 2016-2023)
R
4x 3/8" Flat washer (Only for
S
2024+ 5' models)
S
TOOLS REQUIRED
•
Isopropyl alcohol
•
T-30 Torx bit
•
3/8" Drive short extension
•
Ratchet
•
7/16" Wrench
RealTruck Retrax
917 S. 46th St., Grand Forks, ND 58201
800-206-4070 © RealTruck Group, Inc., 2024
C
F
E
D
B
E
C-Channel
TOOLS REQUIRED
•
#2 Phillips screwdriver
Retrax
•
Rail 9/16" Wrench
•
C-Channel
Scissors or utility knife
•
Isopropyl alcohol
Rubber Rail Adjustment Spacer
K L
M
N O
P Q
R
Tacoma 16-23 & 24+ 5' Only
RetraxONE/RetraxPRO
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 800-206-4070 Mon - Fri, 8:30 a.m. - 5:00 p.m. CST
or email retrax@retrax.com
H I
G
F G H
Retrax
Rail
Cleat
Rail Spacer Block
6' Model Parts
PARTS INCLUDED IN YOUR KIT
4x 0.050 Adjustment shim
T
4x Cleats
U
4x Mounting blocks
V
4x 1/4" Flat washer
W
4x Lock washer
X
4x 1/4-28 x 1.5 Fastener
Y
4x 3/8-16 x 1.5 Fastener
Z
4x Plastic spacer blocks
AA
NOTE:
Most parts above for 5' and
6' models are the same. Just
lettered differently for install
purposes. Parts (P) and (Y)
are different along with parts
(R) and (AA).
J
I
Retrax
Rail
C-Channel
Rail Mount
Bolt
Cleat
Rail Spacer Block
T
V
W
Y
AA
