NOTE: Please read all instructions before assembling the bed cover.
Keep the boxes and packaging until the installation is complete. Unpack carefully to prevent scratching. DO NOT remove any
protective films from the cover and canister until after the installation is complete. DO NOT USE A LUBRICANT OR THREAD-
LOCKER ADHESIVE ON THE ROLLING COVER. USE OF THESE WILL VOID THE WARRANTY. See the maintenance page
for proper care.
Driver Side
Spiral Canister
ELECTRICAL PARTS
INCLUDED IN YOUR KIT
1x Split wire loom
A
1x Fuse holder
B
2x 10 amp fuses
C
1x Wire harness
D
10x Wire ties
E
1x Electronics
F
1x LED lamp
G
2x Key fobs - transmitters
H
1x Electric cover accessory packet
I
J

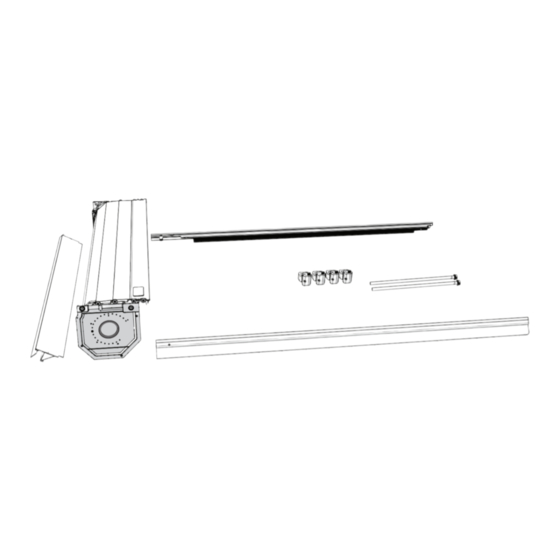

COVER PARTS
INCLUDED IN YOUR KIT
1x Front cover
J
1x Driver side rail
K
1x Passenger side rail
L
(Rail is designated by a green sticker)
1x Spiral canister
M
4x Canister mounting screws (10-32 x 7/16")
N
2x Front cover mounting screws (10-24 x 3/4")
O
4x Clamps (6x for 8' beds)
P
2x Drain tubes
Q
1x 1/8" Allen wrench
R
1x 6mm Allen wrench
S
Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © Retrax is Retrax Holdings, LLC, 2023
G
F
H
L
O
N
M
K
N
O
P
Page 10 Bottom Left
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 800-206-4070 Mon - Fri, 8:30 a.m. - 5:00 p.m. CST
or email retrax@retrax.com
Page 9 Top
I
Electric Cover
Accessory Packet
E
P
S
R
TOOLS REQUIRED
•
#2 Phillips screwdriver
•
9/16" Wrench
•
1/2" Wrench
•
Scissors or utility knife
A
B
C
Page 9 Middle
Q
Q
4000-175 IR-RTP-01 Rev. 10.17.23
D
R
S
Page 10 Botto
O C
