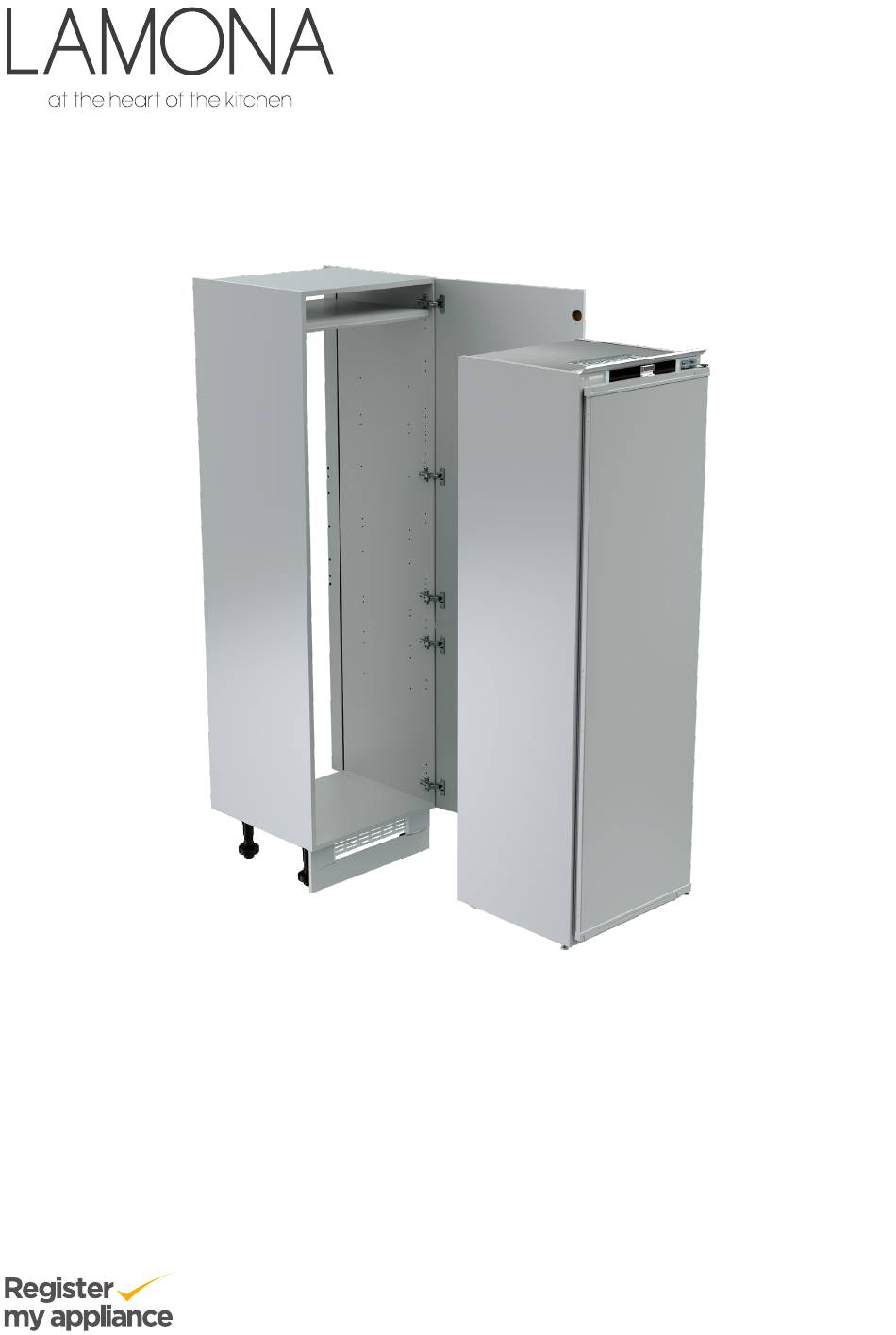

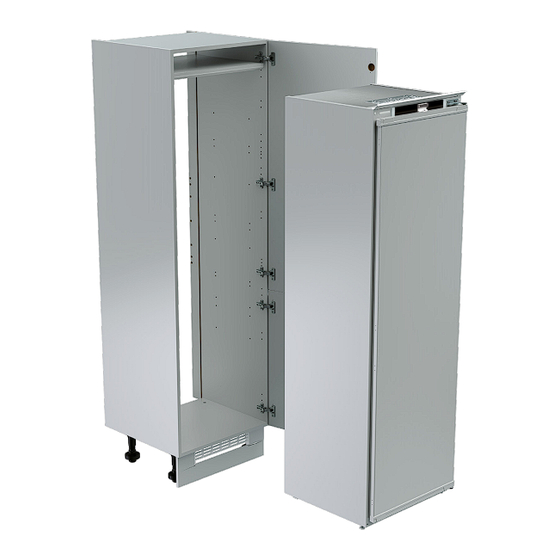

Lamona tall integrated larder fridge
Lamona tall integrated frost free freezer
Generic instructions, (To be used in conjunction with User Instructions).
l Please read this Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
Installation Instructions
www.howdens.com/appliance-registration
LAM6703
LAM6803
ISSUE v1.2 091123
Advertisement
Related Manuals for Lamona LAM6803
Summary of Contents for Lamona LAM6803
- Page 1 Lamona tall integrated larder fridge LAM6703 Lamona tall integrated frost free freezer LAM6803 Generic instructions, (To be used in conjunction with User Instructions). l Please read this Installation Manual to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
-
Page 2: Safety Information
Safety Information Two person lift. Appliance must be Do not install a fixed securely and level. damaged appliance. WARNING! This appliance must be earthed. NOTE: If the electricity Risk of injury: WARNING! The electric socket must be cable is damaged it Beware of metal edges. -
Page 3: Tools Required
Tools required 2mm drill bit TORX25 DO NOT use high speed impact power tools. cross head screw driver Installation Parts supplied - PLEASE RETAIN, DO NOT THROW AWAY! Remove parts bag from appliance drawer. BAG 2 BAG 3 BAG 1 Spacer Top trim x1 Top spacer... - Page 4 Cabinet pre-build and airflow THE CABINET WILL NEED MODIFYING BEFORE INSTALLING YOUR APPLIANCE. 1. Remove rear panels. 2. Attach feet. 3. Fit and align doors. 4. Fit upper shelf. Ensure the cabinet is secure, level and true. 20mm m i n 2 0 0 c m 70:30/50:50 decor door.
- Page 5 Fit side seal trim - Cut side seal to length, 1710mm. - Apply seal 30mm from top edge of the appliance, removing backing tape as you progress. 30mm 30mm Side sealing strip x1 (BAG 1) Fit top trim, - Cut indicated 3mm off each end - Align the top trim to the non of the top trim and chamfer inwards.
- Page 6 Inserting into cabinet - Protect areas with masking tape. 2 - Carefully lift the appliance. 3 - Place rear feet onto cabinet base. 4 - Level and gently slide into position. www.howdens.com...
- Page 7 Remove appliance door and level - Support door 1 , remove inner screw 2 , - Position the appliance c.40mm rotate hinge upward 3 , remove door 4 , back from cabinet front edge. (Careful not to damage door and fittings). WARNING: Support door when...
- Page 8 Securing the appliance (Vertically true and level in cabinet.) - Spacer brackets will set the appliance to the correct depth 42mm. Adjust feet and appliance to achieve correct alignment. 4 2 m m Non hinge side (top and bottom), - Non hinge side spacer brackets, (top and bottom). DO NOT fully tighten. 4 2 m m Spacer 4 2 m m...
- Page 9 Refit appliance door (Take care not to damage the appliance.) - Remove top hinge side spacer bracket. Keep in a safe place. WARNING: Support door when fitting top hinge. - Remove inner screw - Rotate hinge upwards. from the top hinge. - Replace the plastic washer 1 , appliance door 2 .
- Page 10 Door slider fitting, (BAG 4) Door reversal and slider fixing: When reversing the doors go to page 11. - Remove and fix the slider retainers to opposite - Punch or pilot drill the pre-marked holes on the side of the doors. fridge freezer door.
- Page 11 Reverse door opening (if desired) (Handle door with care.) Also see page 10 - Remove plastic - Remove hinge 1 , door 2 - Fit hinge 1 in new position 4 and hinge 3 . and place washer. cover caps and plug. (DO NOT remove magnet from top of door).
- Page 12 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in November 2023. The company has a policy of continuous product development and reserves Howden Joinery Ltd.
