Related Manuals for Lamona LAM6050
Summary of Contents for Lamona LAM6050

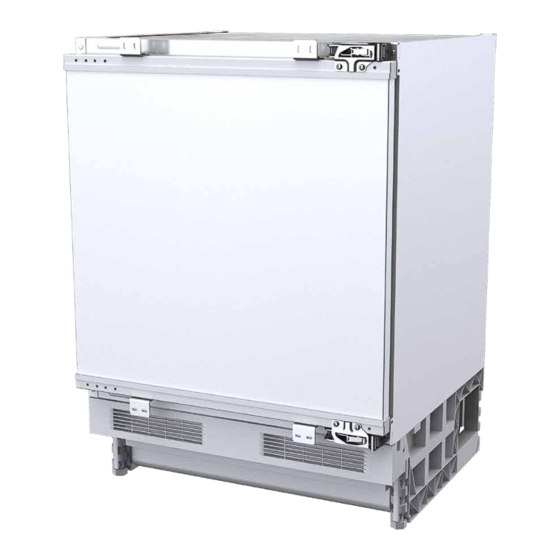

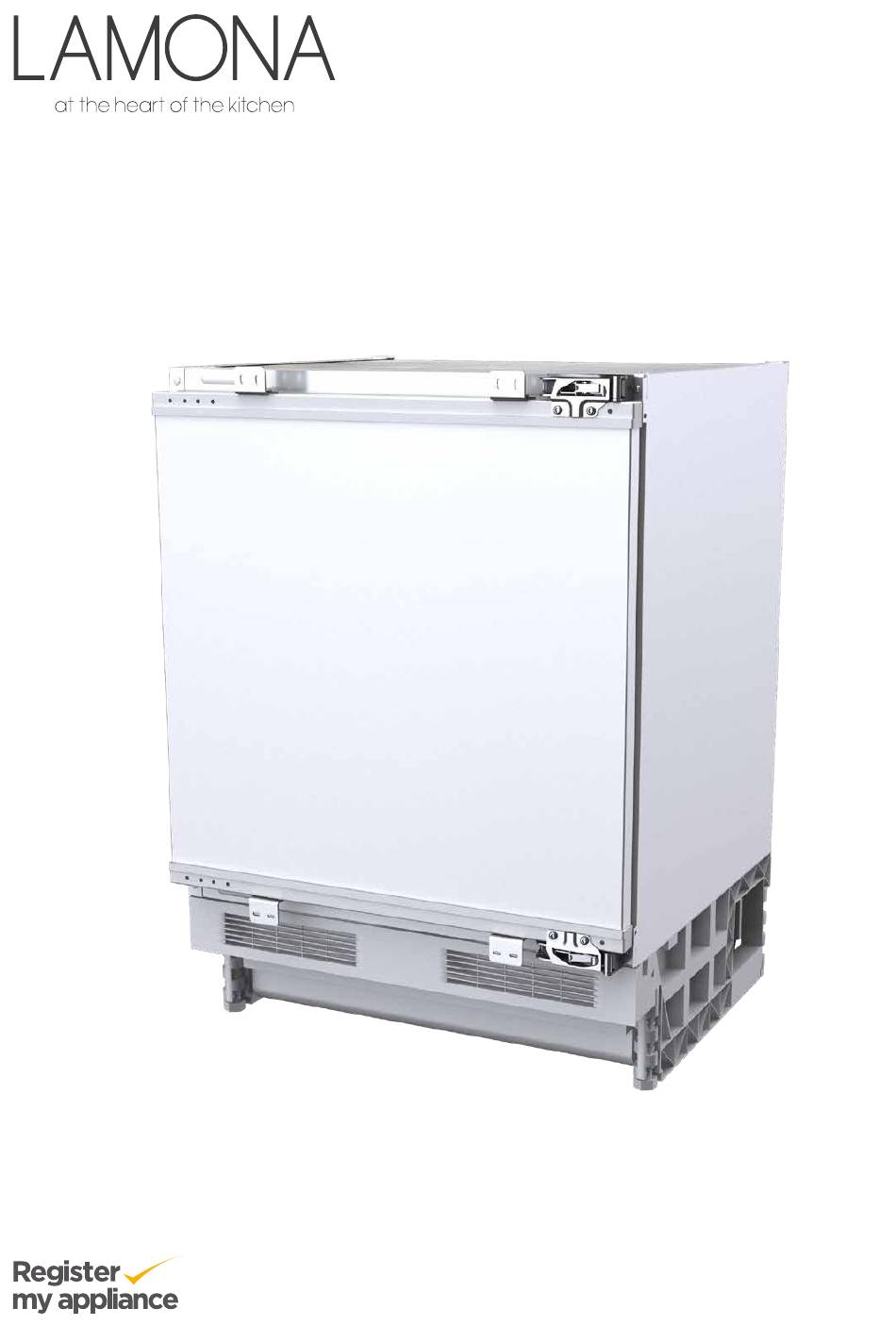

- Page 1 Built-Under Fridge LAM6050 User Instructions www.howdens.com/appliance-registration...
- Page 2 Free 3 year guarantee YEARS Call now Within the UK: 0333 010 0009 Within Republic of Ireland: 01525 5752 Alternatively, visit www.howdens.com/appliance-registration 3 year guarantee available. Register your appliance within 90 days By registering your appliance and creating an account, we will keep you up to date with the latest product information and notify you immediately of any important product updates Lines are open Monday to Friday 9am to 5pm.
-
Page 3: Table Of Contents
Welcome Dear Customer Congratulations on your choice of appliance. Throughout this manual the following symbols are used. • Please read these instructions before use to ensure safe and economical operation of Warning for hazardous the appliance. situations with regard • Please keep these instructions in a safe to life and property. -
Page 4: Fridge Overview
Fridge overview Temperature control Door shelf Interior light Egg tray (in door shelf) Freezer box Glass shelves x2 1/2 and full Defrosted water collection channel Salad crisper Bottle shelf *NOTE: The rear wall of the appliance may be wet or frozen. This is the normal cooling cycle process in operation. -
Page 5: Warning And Safety Information
Warning and Safety information Please read these instructions. The Children and general safety manufacturer is not responsible if an incorrect installation and use causes injuries and/or • This appliance can be used by children damage. Always keep the instructions with the aged from 8 years and above and appliance for future reference. -
Page 6: Energy Efficiency
Warning and Safety information – Keep raw and cooked food well apart WARNING and do not let raw foods drip onto cooked and other foodstuffs. • Keep ventilation openings, in the – Never place hot food into the refrigerator. appliance enclosure or in the built-in Allow to cool to room temperature first. -
Page 7: Electrical Connection
Warning and Safety information Electrical connection Transport instructions • The appliance is supplied with a power • The appliance should be transported only in cable and moulded plug ready for a vertical upright position. connection to a 230v AC 50 Hz supply. •... -
Page 8: Upon Installation
1 - Upon installation (See supplied separate Installation Instructions) Please remember that the manufacturer • Set the temperature control to the desired shall not be held liable if the information temperature. given in this manual is not observed. • On certain models the front edges of the Before operating the appliance appliance may feel warm, this is quite normal. -
Page 9: Door Shelf Removal
2 - Using the fridge (continued) Door shelf removal Only remove the door/bottle shelves when they are empty. • Gently push the door shelf upwards at the outer edges, and remove, • Replace in the reverse order. Ensure that it is securely fixed. -
Page 10: Defrosting Fridge Compartment
2 - Using the fridge (continued) Defrosting fridge compartment The fridge compartment defrosts automatically. The defrost water runs to the collection channel at the back of the fridge, see image. During defrosting water droplets form at the back of the fridge where the concealed evaporator is located. -
Page 11: Cold Zones
2 - Using the fridge (continued) Cold zones; • Due to natural air circulation there are different temperature zones in the refrigerator. • Cold, heavy air falls to the lower sections of the appliance. • The coldest area in the appliance is directly above the fruit and vegetable drawer and at the back of the appliance. - Page 12 3 - Cleaning and care We recommend that you switch off the appliance at the mains socket and remove the plug from the mains socket before any cleaning or maintenance. Do not let any water penetrate any part of the appliance electrics or lighting. Cleaning water must not drain into the defrost drain hole.
-
Page 13: Cleaning And Care
3 - Cleaning and care (continued) Prepare the fridge for cleaning Switch off the appliance at the mains socket and remove the plug. (If the interior light is still on when you open the fridge door the appliance is still connected to the mains electric!) •... -
Page 14: Cleaning Door Seals
3 - Cleaning and care (continued) Cleaning the door seals Do not use any oils or grease on the door seals, as this will cause the seals to deteriorate and become porous. • The door seal should be cleaned regularly using a mild detergent and clean cloth. -
Page 15: Replacing The Interior Light
Before replacing the lamp check that it has not just worked loose. If required fit a suitable E14 screw cap 1w LED type lamp, (available from Lamona spares). Push-in tab Replace lamp: • Switch off the appliance at the mains socket and remove the plug. -
Page 16: Problem Solving
• New plug is wired correctly if you have If the appliance is still not operating after the changed the fitted moulded plug. checks, then call LAMONA Service Line. • Too much ice developing: Please ensure that the checks have been –... -
Page 17: Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within UK 0344 460 0006 Within Republic of Ireland 01525 5703 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the washing machine. -
Page 18: Technical Specifications
For electrical household appliances, (Complying with the Ecodesign for Energy-Related Products and Energy Information Regulations 2021). Brand ................LAMONA Model ................LAM6050 Fridge compartment net volume ......107 Litres (92 + 15) Freezing capacity ............2.5 kg / 24 hrs Temperature rise time ..........8hrs Auto defrost fridge ............Yes... - Page 19 Exclusive to Howdens...
- Page 20 Product serial number (Place sticker here) Howden Joinery Ltd. Thorpe Road, Howden, East Yorkshire. DN14 7PA Imported in EU by: Howdens Cuisines SAS. Z.A. du Bois Rigault Nord, 1 Rue Calmette, 62880 Vendin-le-Vieil, Cedex, France Product information correct at the time of publication in January 2022. ISSUE v1 010122 The company has a policy of continuous product development and reserves the right to change any products and specifications given in this...
