Summary of Contents for Lamona LAM6701

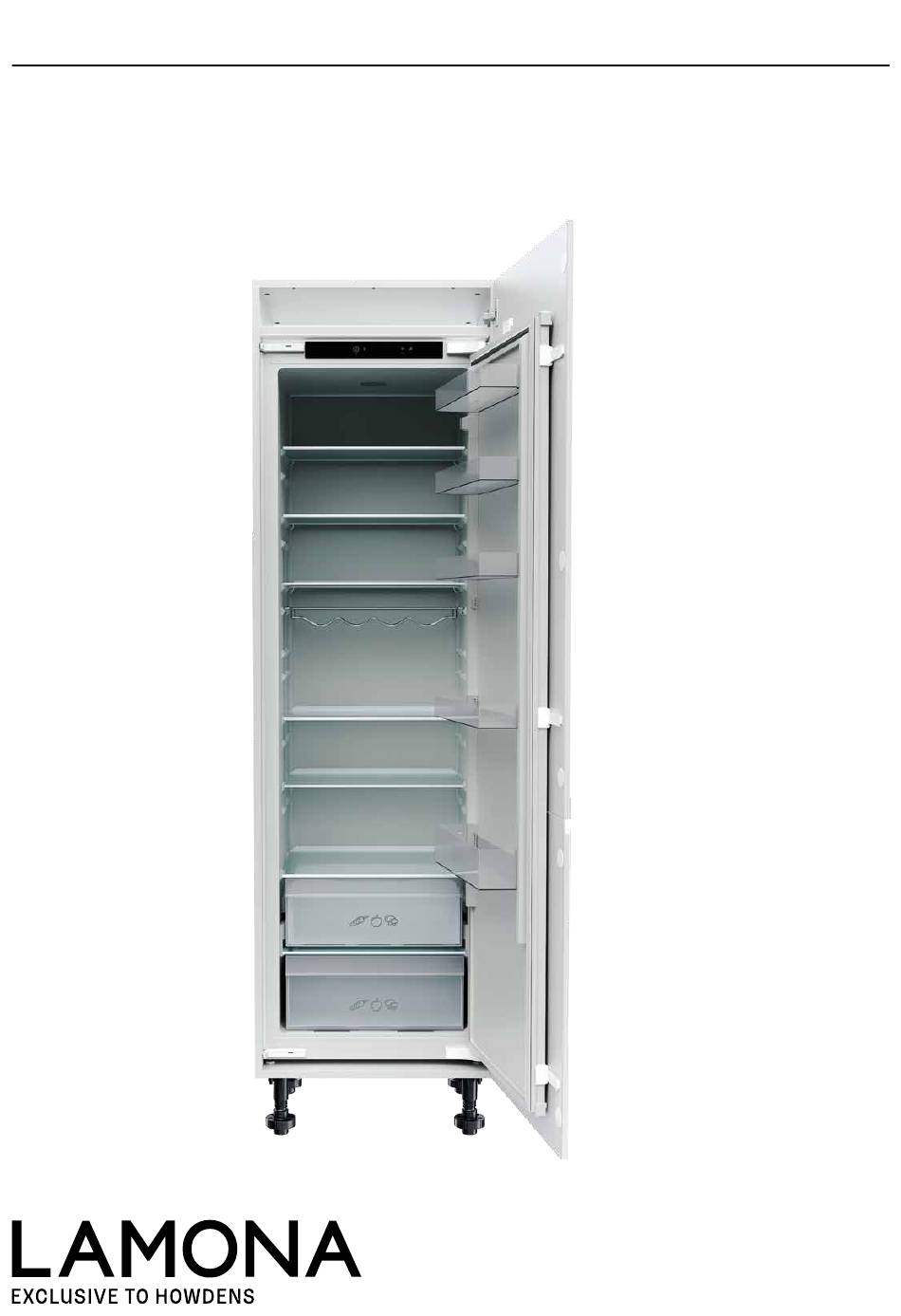

- Page 1 USER MANUAL LAMONA TALL INTEGRATED LARDER FRIDGE LAM6701 WWW.HOWDENS.COM...
- Page 2 Register your Lamona appliance purchased from Howdens Joinery to allow us to easily contact you in the event of important product updates at: www .howdens.com/appliance-registration www.howdens.com...
-
Page 3: Welcome
Welcome Dear Customer Congratulations on your choice of energy efficient larder fridge. • Please read these instructions before use to ensure safe and economical operation of the larder fridge. • Please keep these instructions in a safe place for your future reference. •... -
Page 4: Table Of Contents
Contents Register my appliance Welcome Larder fridge overview Warning and Safety information Correct usage Safety with children Warning - general Compliance with RoHS Directive Cooling circuit Compliance with WEEE Directive and Disposal of the Waste Product Energy saving tips Packaging information Cleaning and care Disposing of the old appliance Electrical connection... -
Page 5: Larder Fridge Overview
Larder fridge overview Temperature control Interior light Door shelf Glass shelf Egg tray (in door shelf) Wine rack Drawer Bottle shelf • The rear wall of the larder fridge may be wet or frozen. This is the normal cooling cycle process in operation. •... -
Page 6: Warning And Safety Information
Whilst the appliance is under warranty, repairs must Correct usage only be made by a LAMONA authorised service technician. Failure to do this will invalidate the Your LAMONA product is designed to be built-in and warranty. for domestic household use only, (see guarantee page for definition) -
Page 7: Cooling Circuit
Cooling circuit Energy saving tips The cooling circuit is factory tested for leaks. • Well ventilated, lower ambient temperatures are This appliance complies with statutory safety ideal conditions for energy saving. In very low requirements and the appropriate EU guidelines. ambient temperatures (Never less than 5°C) the internal temperatures should be checked with a This appliance contains the coolant Isobutane... -
Page 8: Electrical Connection
Wait a couple of hours until the Replacing the interior light correct storage temperature is reached. We recommend that you check the temperature with The LED lamp is not replaceable by the user. an accurate thermometer. If a failure occurs please call LAMONA Service Line. www.howdens.com... -
Page 9: Using The Larder Fridge
Alarm sounds after 1 minute with door open Sensor failure Press alarm to reset (if persistent call LAMONA Service Line) Vacation Press and hold for 3 seconds. No active cooling is performed. Do not store food in the fridge when using this function... -
Page 10: Cold Zones
Cold zones; Loading the fridge • Due to natural air circulation there are different • Allow air to circulate efficiently, do not pack food temperature zones in the fridge. too closely together in the fridge sections. • Cold, heavy air falls to the lower sections of the The normal storage temperature of the fridge should appliance. -
Page 11: Defrosting Larder Fridge
Defrosting larder fridge The larder fridge defrosts automatically. The defrost water runs to the drain tube via the collection channel at the back of the fridge, see image. During defrosting water droplets form at the back of the fridge where the concealed evaporator is located. -
Page 12: Larder Fridge Drawer Removal
Larder fridge drawer removal The drawers can be removed for cleaning. • Open the drawer to it’s maximum, 1 lift upwards and remove, 2 . Door shelf removal/adjustment Only remove the door/bottle shelves when they are empty. • Gently push the door shelf upwards from underneath, 1 and remove, 2 . -
Page 13: Cleaning And Care Safety
3 - Cleaning and care We recommend that you switch off the larder fridge at the mains socket and remove the plug from the mains socket before any cleaning or maintenance. Do not let any water penetrate any part of the appliance electrics or lighting. -
Page 14: Prepare The Larder Fridge For Cleaning
Prepare the larder fridge for cleaning Switch off the larder fridge at the mains socket and remove the plug. If the interior light is still on when you open the larder fridge door the appliance is still connected to the mains electric. -
Page 15: Cleaning The Door Seals
If the appliance is still not operating after the checks, • New plug is wired correctly if you have changed the then call LAMONA Service Line. fitted moulded plug. Please ensure that the checks have been made as a •... -
Page 16: Recommendations
5 - Recommendations Do - Clean the larder fridge regularly, Don’t - Store bananas in the larder fridge see cleaning and care. compartment. Do - Store raw meat and poultry below cooked food Don’t - Store melon in the larder fridge. It can be and dairy products. -
Page 17: Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on 0344 460 0006 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. -
Page 18: Product Specification
7 - Product specification Brand ......................LAMONA Model ......................LAM6701 Total gross volume ..................315 Litres Total net volume ..................309 Litres Auto defrost ....................Yes Climate class ....................SN-T Installation ....................Built in Voltage ......................220 - 240 V Frequency ....................50 Hz Wattage ......................110 W Current ......................0.6 A Fuse rating in plug ...................13 A... - Page 19 Exclusive to Howdens...
- Page 20 Product serial number Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA Product information correct at the time of publication in February 2020. The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual.
Need help?
Do you have a question about the LAM6701 and is the answer not in the manual?
Questions and answers
I have defrosted the fridge as it was frosting up. It’s worse than ever now. Can you tell me what to do the temperature has been set at 4 since we bought it.
If the Lamona LAM6701 fridge is frosting up despite being set at 4 degrees, check if the defrost water is draining properly. If it is not, inspect the drain channel for obstructions. Use the provided plastic plunger to clear the drain tube. If there is ice build-up, lower the temperature control to 1 for a few hours until the ice melts, then return it to the normal setting.
This answer is automatically generated
Lamona 6701we have broken the top drawer of this fridge and need to order a replacement please
