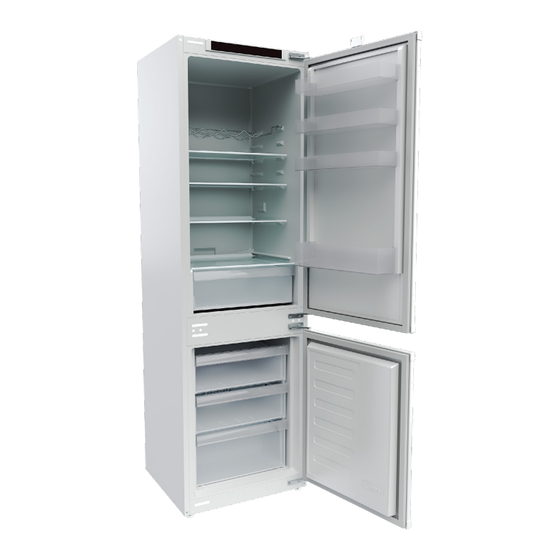

70:30 Integrated Fridge Freezer
LAM6302 / LAM6352
Generic instructions, (To be used in conjunction with User Instructions).
l Please read this Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
Installation Instructions
ISSUE v1.1 091123
www.howdens.com/appliance-registration
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lamona LAM6302
Summary of Contents for Lamona LAM6302

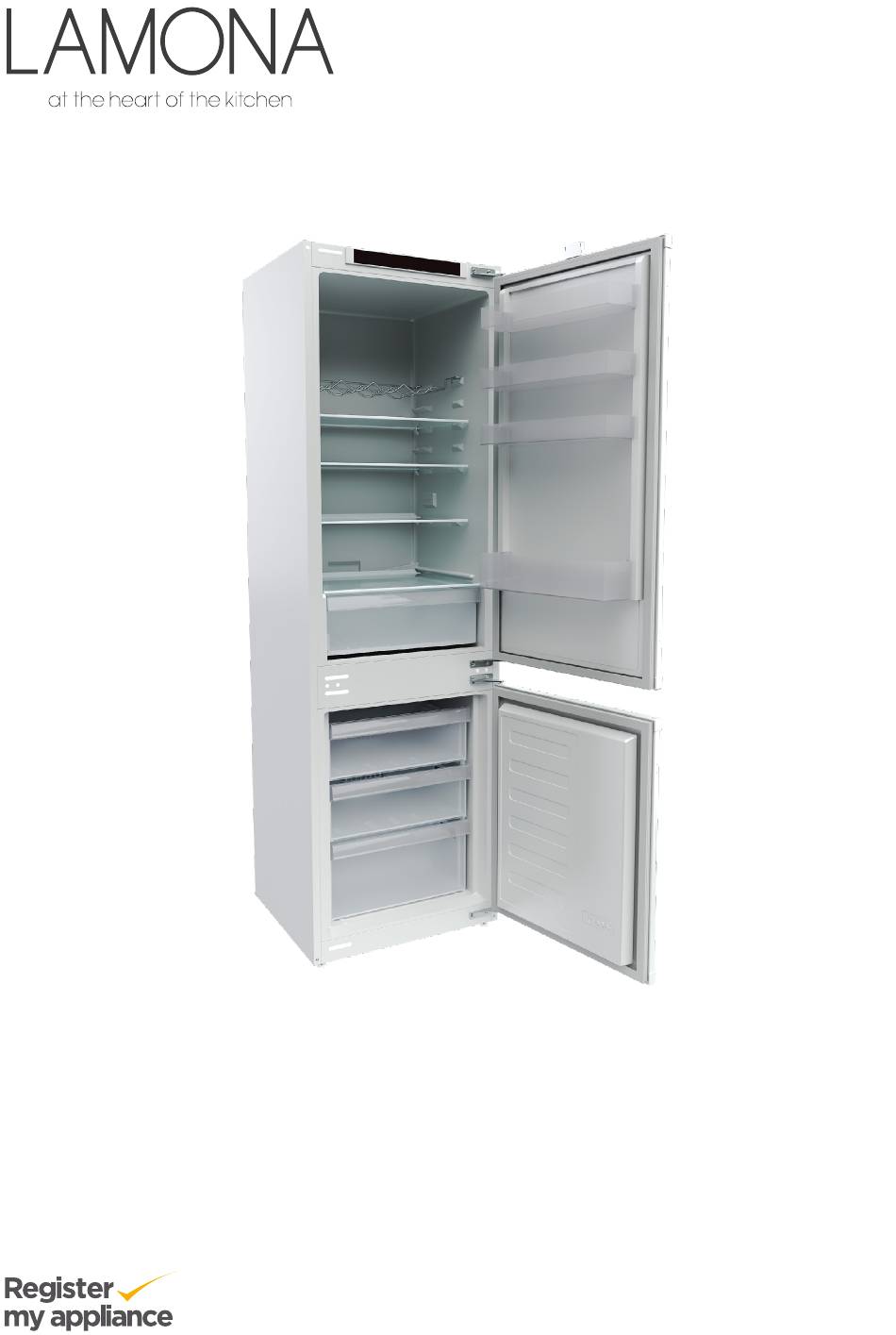

- Page 1 70:30 Integrated Fridge Freezer LAM6302 / LAM6352 Generic instructions, (To be used in conjunction with User Instructions). l Please read this Installation Manual to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
- Page 2 Installation overview guide Establish power socket location, (must be accessible after installation) Prepare cabinet, (remove back panels, fit upper shelf, fit plinth vent) ... . .p.5 Fit and adjust décor doors ........p.5 Reverse fridge freezer doors if necessary .
- Page 3 Safety Information Two person lift. Fridge freezer must Do not install a be fixed securely damaged appliance. and level. WARNING! This appliance must be earthed. The electric socket must be accessible after fitting. NOTE: If the electricity Risk of injury: cable is damaged it Beware of metal WARNING!
- Page 4 Parts supplied - PLEASE RETAIN, DO NOT THROW AWAY! Remove parts bags from salad crisper drawer. BAG 1 BAG 2 Top trim x1 Spacer bracket x3 Adhesive strip (LAM6302 only) (3.5x13) x3 (T25x18) x6 BAG 3 BAG 4 Door slider x5...
- Page 5 Cabinet pre-build and airflow THE CABINET WILL NEED MODIFYING BEFORE IMPORTANT: Good airflow around the fridge INSTALLING YOUR FRIDGE FREEZER. freezer is essential for optimum performance 1. Remove rear panels. 2. Attach feet. and energy saving. Ventilation channels must 3. Fit and align doors. 4.
- Page 6 Fit top trim, (BAG 1) (To reverse door see p.13) - Cut indicated 3mm off each end of the top trim and chamfer inwards. - Apply the self adhesive strip to the underside - Align the top trim to the non hinge side of the of the top trim and cut to length.
- Page 7 Fit side seal trim - Remove the following screw hole covers and - Loosely attach two spacer brackets. plugs and keep in safe place for future use. plug x1 cover x1 plug x1 Remove screw hole cover x1 Remove screw hole plugs x5 plugs plugs...
- Page 8 Inserting into cabinet - Protect areas with masking tape. - Carefully lift the fridge freezer into the cabinet; rear feet onto base, level and gently slide into position. - Upon installation the fridge freezer should be - Open doors, turn adjustable feet so that the leaning slightly forward, this is quite normal.
- Page 9 Securing the fridge freezer (Vertically true and level in cabinet.) Mid spacer - The fridge freezer should be set back 42mm from the front edge of the cabinet, the spacer brackets will set the appliance to the correct depth. bracket fitting, Carefully move appliance and adjust feet to obtain the correct alignment.
- Page 10 Top hinge - Remove screw and retain. (RH hinge side bracket illustrated.) side bracket, (BAG 3) - Fit top hinge side bracket. - Once spacing is correct, attach to the cabinet side. Select the correct hinge side bracket. 4 2 m m RH hinge side bracket x1 LH hinge side...
- Page 11 Door slider fitting, (BAG 4) Door reversal and slider fixing When reversing the doors go to page 13. - Punch or pilot drill the pre-marked holes on the fridge freezer doors. - Remove and fix the slider retainers to the opposite side of the doors.
- Page 12 Fixing bracket trims - Insert cover trims over screw holes, (BAG - Carefully snap off the distance spacing tabs, (if necessary for finish; remove bracket and trim). Clip centre in first then the ends. Cover trims x3 - Insert cover trims over screw holes, (BAG - Present hinge covers at 45°, then rotate to fit over the fridge freezer door hinges,...
- Page 13 Reversing door opening Also see top of page 11 - Remove plastic - Remove hinge 1 , door 2 - Fit hinge 1 in new position and lower hinge 3 . and place washer. cover caps. Remove door fittings, (lift upwards and away).
- Page 14 - Fit door 5 . - Fit hinge 6 in new position. WARNING: Support door when fitting hinge 6 . - Fit door 2 . - Fit hinge 3 in new position. - Replace plastic cover caps. Replace door fittings. WARNING: Support door when fitting...
- Page 15 Exclusive to Howdens...
- Page 16 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in November 2023. The company has a policy of continuous product development and Howden Joinery Ltd.
