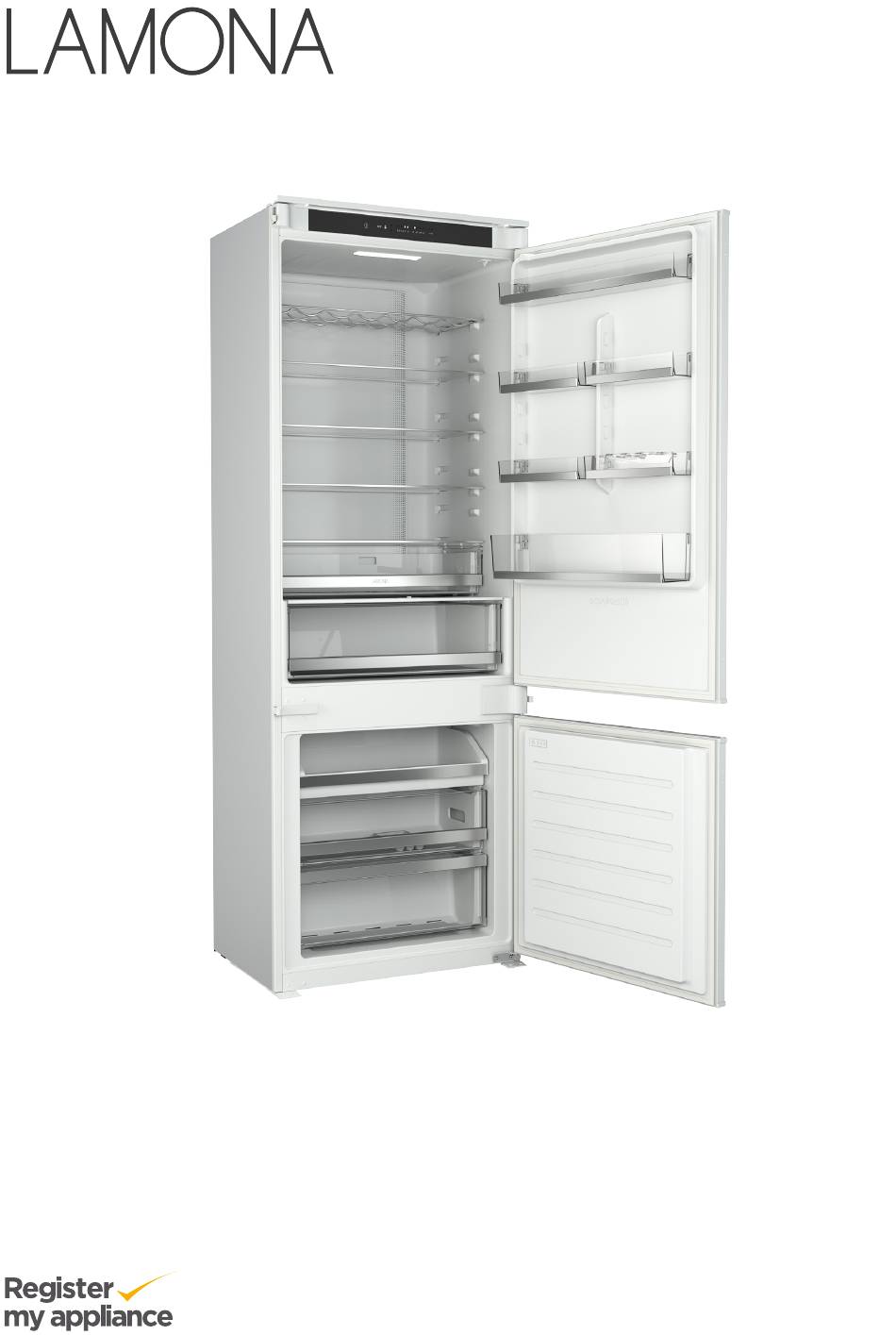

Extra Wide - Tall Integrated Fridge Freezer
LAM6390
Generic instructions, (to be used in conjunction with User Instructions).
l Please read these installation instructions to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
ISSUE v2.1 141124
Installation Instructions
www.howdens.com/appliance-registration
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lamona LAM6390
Summary of Contents for Lamona LAM6390
- Page 1 Extra Wide - Tall Integrated Fridge Freezer LAM6390 Generic instructions, (to be used in conjunction with User Instructions). l Please read these installation instructions to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
- Page 2 Installation overview guide Establish power socket location.This must be accessible after installation. Preparing the cabinet / airflow considerations. (remove back panels)............... . p.5 Fit and adjust décor doors / reverse door direction if required .
-
Page 3: Safety Information
Safety Information Two person lift. Fridge freezer must Do not install a WARNING! be fixed securely damaged appliance. This appliance must be and level. earthed. The electric socket must be accessible after fitting. R600a refrigerant which is flammable is used in this appliance. -
Page 4: Parts Supplied
Installation Parts supplied - DO NOT THROW AWAY! NOTE: Screw heads are Phillips size 1 and 2. Side sealing strip Upper bracket screws Feet screws Wood screw Wood screw 4.2 x 13mm 4.2 x 13mm Upper bracket and fixings Middle bracket and fixings 40.5mm Upper bracket x1 x2 Middle bracket... - Page 5 Cabinet pre-build and airflow ( To reverse door opening see page 14). IMPORTANT: Airflow around the fridge freezer is essential. Ventilation channels must be free of obstruction. Approx 10mm Ensure the cabinet is secure, level and true. Air gap at top is required 119mm Plinth vent...
- Page 6 Fit side seal trim Measure and cut side seal into two pieces to fit between the brackets as shown. 24mm Starting from the bottom edge, apply seal, Lorem ipsum removing backing tape as you progress. Remove screw hole covers. D D D D D D www.howdens.com...
- Page 7 Inserting into cabinet (vertically true and level). Protect base edge with masking tape. Slide brackets inwards to avoid obstructions. Carefully lift appliance into cabinet. Place rear onto onto the base. Then gently slide into position. Open doors, the appliance must Ensure the fridge freezer is 40.5mm back from stand vertically true and the top trim the front edge of the cabinet.
- Page 8 Attach securing brackets (Depth must be 40.5mm). The appliance should be set back 40.5mm from the front edge of the cabinet. The spacer brackets will set the appliance to the correct depth of 40.5mm. 40.5mm Loosely tighten brackets they will require adjustment later - See page 9.
- Page 9 Securing the fridge freezer to the cabinet (vertially true and level). The appliance should be set back 40.5mm from the front edge of the cabinet. The supplied brackets are used to fix the appliance to the cabinet and also to maintain the cabinet width of 714mm Check that the all brackets are loosely fitted to the fridge freezer.
- Page 10 Securing the fridge freezer to the cabinet (continued). The internal cabinet width must be 714mm. Some force may be required to achieve this. Push the cabinet IN from both sides as necessary. 714mm PUSH PUSH When 714mm is acheived, tighten the middle bracket screws (C&D).
- Page 11 Attach door sliders. Punch or pilot drill the pre-marked holes on the appliance doors. Fix slider retainers to the appliance doors NOTE: Screw heads are Phillips size 1. Locate slider into the retainer and Self drilling screw 3.5x9.5mm x8 align with décor door edge Mark, pilot &...
- Page 12 Fit hinge and securing bracket covers Fit hinge cover Fit bracket cover Fit hinge cover Slide on bracket cover Fit screw caps where required. Fit trim cover Fit trim cover www.howdens.com...
-
Page 13: After Installing
Fit plinth vent Fit a plinth vent for necessary airflow around the fridge freezer, see the latest Howdens Kitchen Installation Manual for fitting instructions. Note: A plinth vent must be fitted. Ensure warm air can exit at the top. After installing Please check that the refrigerator doors are closing and sealing correctly. - Page 14 Reversing door opening If required, do this before installing into cabinet. (Remove cover caps, and door balconies). Lift and Remove hinge (A) remove door Remove hinge (B) WARNING: Support door when removing hinge. NOTE: Hex head socket or Phillips driver bit. Fit hinge (A) in new position Remove hinge (C)
- Page 15 WARNING: Fit lower door Support door when fitting hinge. Slide hinge (D) into position and secure D D D Fit upper door D D D D D D Slide hinge (B) into position and secure D D D Ensure door seals expand to seal WARNING: correctly before installing.
- Page 16 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in November 2024. The company has a policy of continuous product development and Howden Joinery Ltd.
