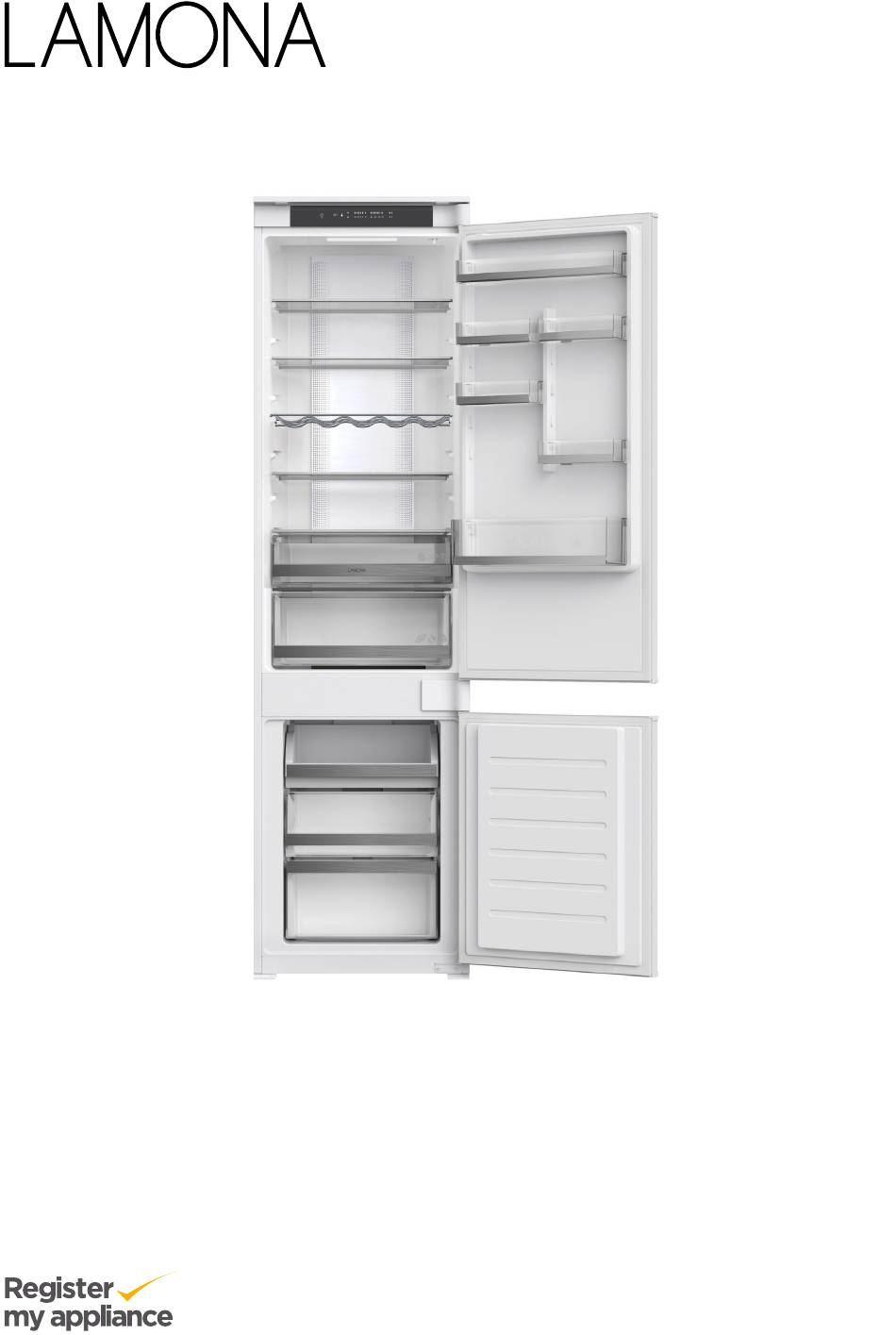

At the heart of the kitchen

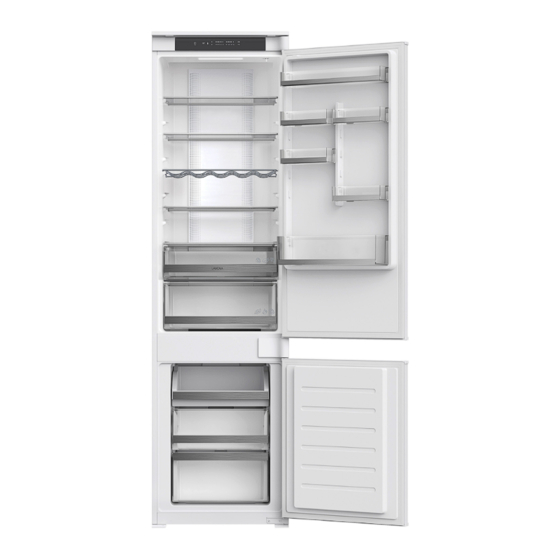

Extra Tall Integrated Fridge Freezer
LAM6380
Generic instructions, (To be used in conjunction with User Instructions).
l Please read this Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
ISSUE v1.4 310723
Installation Instructions
www.howdens.com/appliance-registration
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lamona LAM6380
Summary of Contents for Lamona LAM6380
- Page 1 At the heart of the kitchen Extra Tall Integrated Fridge Freezer LAM6380 Generic instructions, (To be used in conjunction with User Instructions). l Please read this Installation Manual to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
- Page 2 Installation overview guide Establish power socket location, (must be accessible after installation) Prepare cabinet, (remove back panels) ......... .p.5 Fit and adjust décor doors .
-
Page 3: Safety Information
Safety Information Two person lift. Fridge freezer must Do not install a be fixed securely damaged appliance. and level. WARNING! This appliance must be earthed. The electric socket must be accessible after fitting. NOTE: If the electricity Risk of injury: cable is damaged it Beware of metal WARNING! - Page 4 Installation Parts supplied - DO NOT THROW AWAY! NOTE: Screw heads are Phillips size 2. Side sealing strip Upper bracket screws Feet screws Wood screw Wood screw 4.2x13mm 4.2x13mm Upper bracket and fixings Middle bracket and fixings Upper bracket x1 x2 Middle bracket Wood screw 4.2x13mm...
- Page 5 Cabinet pre-build and airflow Ensure rear panel is removed. IMPORTANT: Airflow around the fridge freezer is essential. Ventilation channels must be free of obstruction. Approx 10mm Ensure the cabinet is secure, level and true. Cut to size. 119mm 119mm Fit shelf flush to cabinet edge.
- Page 6 Fit side seal trim Measure and cut side seal to fit Apply seal, removing backing tape as you between bracket zones. progress. Start from the bottom edge. D D D D D D 24mm Loosely attach three spacer brackets. Once fitted, slide them inboard.
- Page 7 Inserting into cabinet Protect base edge with masking tape. Carefully lift appliance into cabinet. Place rear feet onto the base. Level, then gently slide into position. Slide brackets inwards to avoid obstructions. Make sure feet are loose and adjustable. Open doors, adjust feet so the appliance Ensure the fridge freezer is 40.5mm back from stands vertially true and the top trim aligns the front edge of the cabinet.
- Page 8 Securing the fridge freezer (vertically true and level in cabinet). The appliance should be set back 40.5mm from the front edge of the cabinet. The spacer brackets will set the appliance to the correct depth of 40.5mm. Carefully move the appliance and adjust the two feet to obtain the 40.5mm correct alignment (Use air bags to assist).
- Page 9 Attach door sliders Punch or pilot drill the pre-marked holes on the appliance doors. Fix slider retainers to NOTE: Screw heads are Phillips size 2. the appliance doors Locate slider into the retainer and align with decor door edge Self drilling screw 3.5x9.5mm x8 Mark, pilot and fix sliders to decor doors Carefully snap off the distance spacing tabs...
- Page 10 Fit covers Fit hinge cover Fit bracket cover Fit hinge cover Slide on bracket cover Fit screw caps where required. Fit trim cover Fit trim cover www.howdens.com...
- Page 11 Plinth vent Fit a plinth vent for necessary airflow around the fridge freezer, see Kitchen Installation Manual for fitting instructions. Note: Plinth vent must be fitted. Ensure warm air can exit at the top. Exclusive to Howdens...
- Page 12 A. Reversing door opening If required, do this before installing into cabinet. (Remove cover caps, and door balconies). Lift and remove door Remove hinge (A) Remove hinge (B) WARNING: Support door when fiting hinge. NOTE: Hex head socket or Phillips driver bit. Fit hinge (A) in new position Remove hinge (C)
- Page 13 Fit lower door WARNING: Support door when fitting hinge. Slide hinge (D) into position and secure D D D Fit upper door D D D Slide hinge (B) into D D D position and secure D D D WARNING: Support door when fitting hinge.
- Page 14 Notes www.howdens.com...
- Page 15 Notes Exclusive to Howdens...
- Page 16 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in July 2023. The company has a policy of continuous product development and Howden Joinery Ltd.
