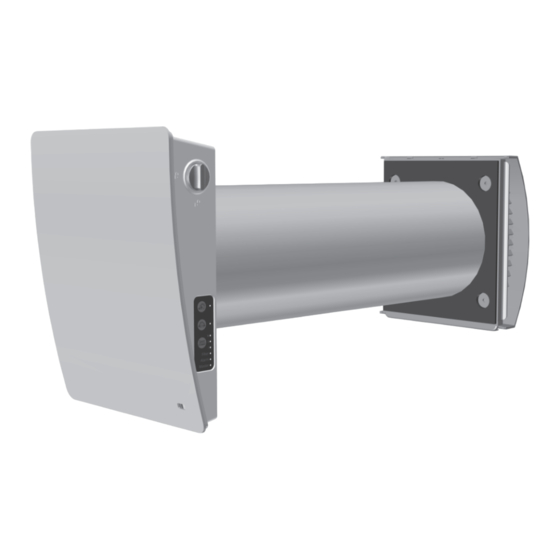

USER‘S MANUAL SIKU SPHERE Comfort 100 SIKU SPHERE WiFi 100 SIKU SPHERE Comfort 160 SIKU SPHERE Comfort 160 Basic SIKU SPHERE WiFi 160 Single-room reversible energy recovery ventilator...
Page 2
SIKU SPHERE WiFi 100/160 / SIKU its products at any time in order to incorporate the SPHERE Comfort 100/160 (Basic) unit and all its modi- latest technological developments.
Page 3
Comfort / WiFi SIKU SPHERE WARNING! Similar to the use of any other household electrical appliances when operating this fan, the following basic rules must be followed: • Never touch the fan with wet or damp hands. • Never touch the fan when barefoot.
Page 4
1 set FOAM WEDGES 1 pcs. INSTALLATION INSTRUCTION 1 pcs. PACKING BOX DESIGNATION KEY SIKU SPHERE Comfort / WiFi Basic Air damper opening / closing method _: automatic/manual Basic: only manual Ventilation system model range Series of reversible ventilation systems...
Page 5
Water: IP24. OVERALL DIMENSIONS OF THE INDOOR UNIT, MM ø 160 mm ø 103 mm TECHNICAL DATA MODELS SIKU SPHERE COMFORT 100 SIKU SPHERE COMFORT 160 VENTILATION LEVEL 100 - 240V ~ 50/60 Hz SUPPLY VOLTAGE (V/HZ) 1,10...
Page 6
TECHNICAL DATA MODELS SIKU SPHERE WIFI 100 SIKU SPHERE WIFI 160 VENTILATION LEVEL 100 - 240V ~ 50/60 Hz SUPPLY VOLTAGE (V/HZ) 1,80 3,00 4,40 2,00 3,50 5,50 POWER CONSUMPTION (W) 0,03 0,04 0,05 0,03 0,03 0,06 CURRENT CONSUMPTION (A) DELIVERY RATE IN VENTILATION MODE (M³/H)
Page 7
SIKU SPHERE Comfort 100 SIKU SPHERE WiFi 100 Decorative Front Panel Fulfils the decorative function.
Page 8
CLOSED. The figure below shows the closed and SIKU SPHERE Comfort / WiFi The indoor unit of the open positions of the damper and the lever. ventilator is equipped with an automatic air damper.
Page 9
The length of the internal elements, the diameter of the required hole and the minimum wall thickness in which the ventilation system can be installed when using different external ventilation hoods are given in the following table. SIKU SPHERE COMFORT/WIFI 160 SIKU SPHERE COMFORT/WIFI 160 Anordnung der Einheiten der Lüftungsanlage in der Wand...
Page 10
SIKU SPHERE COMFORT/WIFI SIKU SPHERE SIKU SPHERE MODEL OF THE VENTILATION HOOD 160 WITH MINIMUM COMFORT/WIFI 100 COMFORT/WIFI 160 WALL THICKNESS LENGTH OF THE CARTRIDGE OR THE FAN AND 165 mm 370 mm 310 mm HEAT EXCHANGER UNIT 120 mm...
Page 11
Comfort / WiFi SIKU SPHERE 4. Stick the delivered cardboard master plate on the building level.Then mark the fastening holes for ins- indoor wall using a mounting tape. The large opening tallation of the supplied dowels and drill the holes in the master plate must be axially aligned with the to a required depth.
Page 12
8. Lay the power cable as shown here. Connect the air handling unit to the power supply in accordance with the external connection scheme (see the “Power connection” section). Fix the power cable with a cable clamp. SIKU SPHERE COMFORT SIKU SPHERE WIFI...
Page 13
Comfort / WiFi SIKU SPHERE 10. Install the cartridge into the air duct as layer must be outside. Insert the sound absorbing figured below and connect the connector to the board. roll into the cartridge against stop. Make a mark at Insert the sound-absorbing layer in the air duct.
Page 14
CONNECTION TO POWER MAINS SIKU SPHERE COMFORT POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
Page 15
Comfort / WiFi SIKU SPHERE CONNECTION TO POWER MAINS SIKU SPHERE WIFI POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
Page 16
ADJUSTING THE TERMINATING RESISTOR DIP SWITCH The DIP switch of the terminating resistor must be on (switched on) if the ventilation system is the first or the last system in an RS-485 network. DIP-Schalter des DIP switch of the Abschlusswiderstands terminating resistor siku.at siku.at...
Page 17
The switch-off delay for the defines the switch-off delay time for the boost mode after one of the sensors has returned to the standard state. ATTENTION! The positions of the WiFi series DIP switches can be found in the SIKU WiFi App operating instructions.
Page 18
• control buttons located on the side of the indoor unit (see the figure below) • „SIKU WIFI“ application from a mobile device (smartphone or tablet) VENTILATOR CONTROL WITH THE BUTTONS ON THE INDOOR UNIT Turning the ventilator on/off...
Page 19
Alarm shutdown of the ventilator. The alarm display indicates the emergency shutdown of the ventilation system. SIKU SPHERE Comfort In the event of a failure, the alarm indicator on the interior element of the ventilation system lights up or flashes.
Page 20
Press any speed setting key to When activating several mutually exclusive operating modes at the same time, the operating mode is selected according to the following priority: 1. Post-operation timer or party operation timer 2. Standby. 3. Boost operation 4. Standard operation siku.at siku.at...
Page 21
Comfort / WiFi SIKU SPHERE TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. To enable access to the main units, follow the procedure described below.
Page 22
The battery type is CR2025. CR2025 Remove the holder with the battery from the lower part of the remote control. Replace the battery and install the holder with a new battery back to the remote control. CR2025 siku.at siku.at...
Page 23
Comfort / WiFi SIKU SPHERE POSSIBLE REASONS AND TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot the connection error. When switching on the ventilator, the Turn the ventilator off. Troubleshoot the motor fan does not start.
Page 24
Failure of the device as a result of force majeure (fire, flood, earthquake, war, military action of any kind, blockages). • The seals are missing if the operating instructions provide for them. • Failure to present the operating instructions with the date of purchase. • Missing receipt with the purchase date, which confirms the purchase. siku.at siku.at...
Page 25
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. CUSTOMER’S SIGNATURE Seller’s Stamp INSTALLATION CERTIFICATE The SIKU Sphere __________ unit is installed pursuant to the requirements stated in the present user‘s manual. COMPANY NAME ADDRESS PHONE NUMBER INSTALLATIONTECHNICIAN’S FULL...
Page 26
Printing errors, mistakes and technical changes reserved. SIKU VertriebsgmbH | Bundesstraße 5 | 2102 Bisamberg | Austria | Tel.: +43 2262 61 521 | www.sikusphere.at | office@siku.at BDA_50671_50675_50672_50674_50676_SIKUSPHERE_EN_2022-01...
