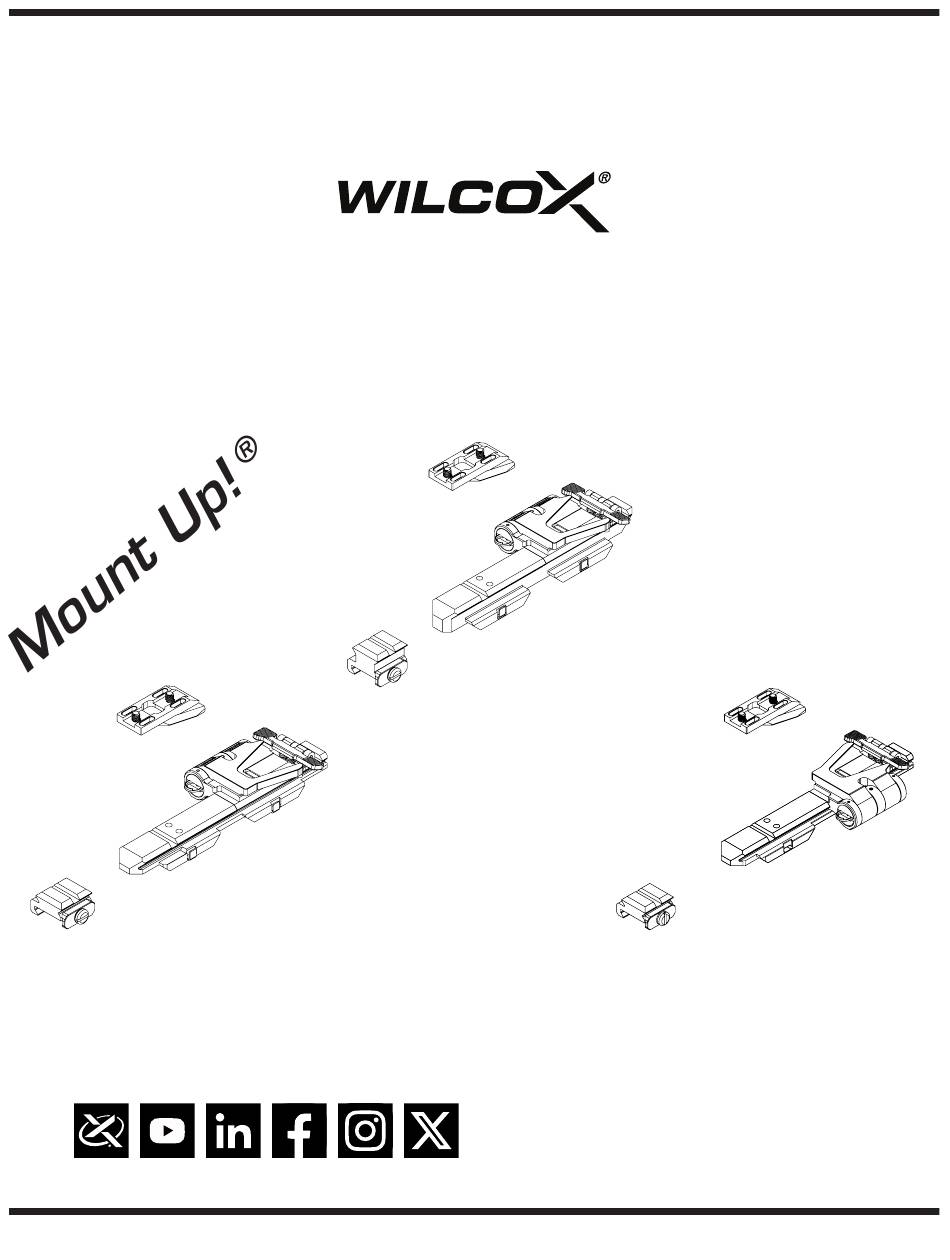

OPERATION AND MAINTENANCE
INSTRUCTIONS FOR THE
G05, G07, and G08
Fixed Flip Mounts
61100G05
EOTECH RIGHT HAND
G23/XPS WITH 5/8" RISER
SET SCREW
61100G07
61100G08
EOTECH RIGHT HAND
EOTECH LEFT HAND
G23/XPS WITH .41" RISER
G23/XPS WITH .41" RISER
SET SCREW
SET SCREW
CAGE: 004F1
EAR99 NLR: No Export License Required.
22 January, 2024
61100M03
Rev. A-4
Advertisement
Table of Contents
Related Manuals for Wilcox G07
Summary of Contents for Wilcox G07
- Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE G05, G07, and G08 Fixed Flip Mounts 61100G05 EOTECH RIGHT HAND G23/XPS WITH 5/8” RISER SET SCREW 61100G07 61100G08 EOTECH RIGHT HAND EOTECH LEFT HAND G23/XPS WITH .41” RISER G23/XPS WITH .41” RISER SET SCREW...
-
Page 2: Installation
INSTALLATION ATTACH RAIL - ATTACH THE SCREW SET SIDE RAILS If permanent installation is desired, apply a drop of Loctite 271 to the threads of the screws and set aside. Make sure the weapon is safe. Slide the Rail (1) onto the top weapon rail from the rear, making sure the Mount’s mounting grooves align with... - Page 3 ATTACH RISER - ATTACH THE FRONT SIGHT RISER Make sure the weapon is safe. Unthread the screw assembly (1) to open the floating rail grabber (2). Attach the Riser by sliding from right to left to make sure the floating rail grabber has engaged the MIL-STD-1913 Rail.
- Page 4 MOUNT SHOE - MOUNT THE WILCOX SHOE TO THE EOTECH MAGNIFIER If permanent installation is desired, apply a drop of Loctite 271 to the threads of the screws and set aside. Attach the bottom of the Wilcox Shoe to the top of...
- Page 5 ATTACH/DETACH MAGNIFIER - ATTACH/DETACH THE MAGNIFIER TO/FROM THE WILCOX FLIP MOUNT ATTACH MAGNIFIER Push the Optic Release Lever (1). Insert the Shoe dovetail (2) into the Flip Mount interface and push in until the Optic Release Lever locks. Gently pull on the Magnifier to make sure it is locked in place.
-
Page 6: Operation
OPERATION PIVOT - STOW AND DEPLOY THE FLIP MOUNT The Flip Mounts for the EOTech G23 feature a force-to-overcome tilt mechanism. To pivot the Flip Mount between the deployed and stowed positions, simply tilt the mount with enough force to overcome the resistance of the mount. - Page 7 PIVOT (CONTINUED) STOWED; FRONT SIGHT MOUNTED TO WILCOX FRONT RAIL (RH FLIP MOUNT DEPICTED) STOWED FOR REFLEX SIGHT VIEW (RH FLIP MOUNT DEPICTED) 22 January, 2024 Rev. A-4...
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE Clean the Mount by flushing away dirt with fresh water and/or wiping down the assemblies with a clean, damp cloth. If used in a saltwater environment, flushing with fresh water and drying after use is recommended. If used extensively in a saltwater environment, lightly lubricate stainless steel parts as needed. - Page 9 One Wilcox Way Newington, NH 03801 USA The Wilcox product must be securely packaged to prevent damage, accompanied by your name, address, daytime phone number to contact you, and a description of the problem or work you wish to be performed.
- Page 10 For troubleshooting service questions, contact Wilcox between 8am and 5pm EST. © 2012-2024 Wilcox Industries Corp. All rights reserved. Printed in USA. US Patent 9,775,395. Wilcox , the Wilcox “X” logo and “Mount Up!” are federally registered trademarks of Wilcox ®...
