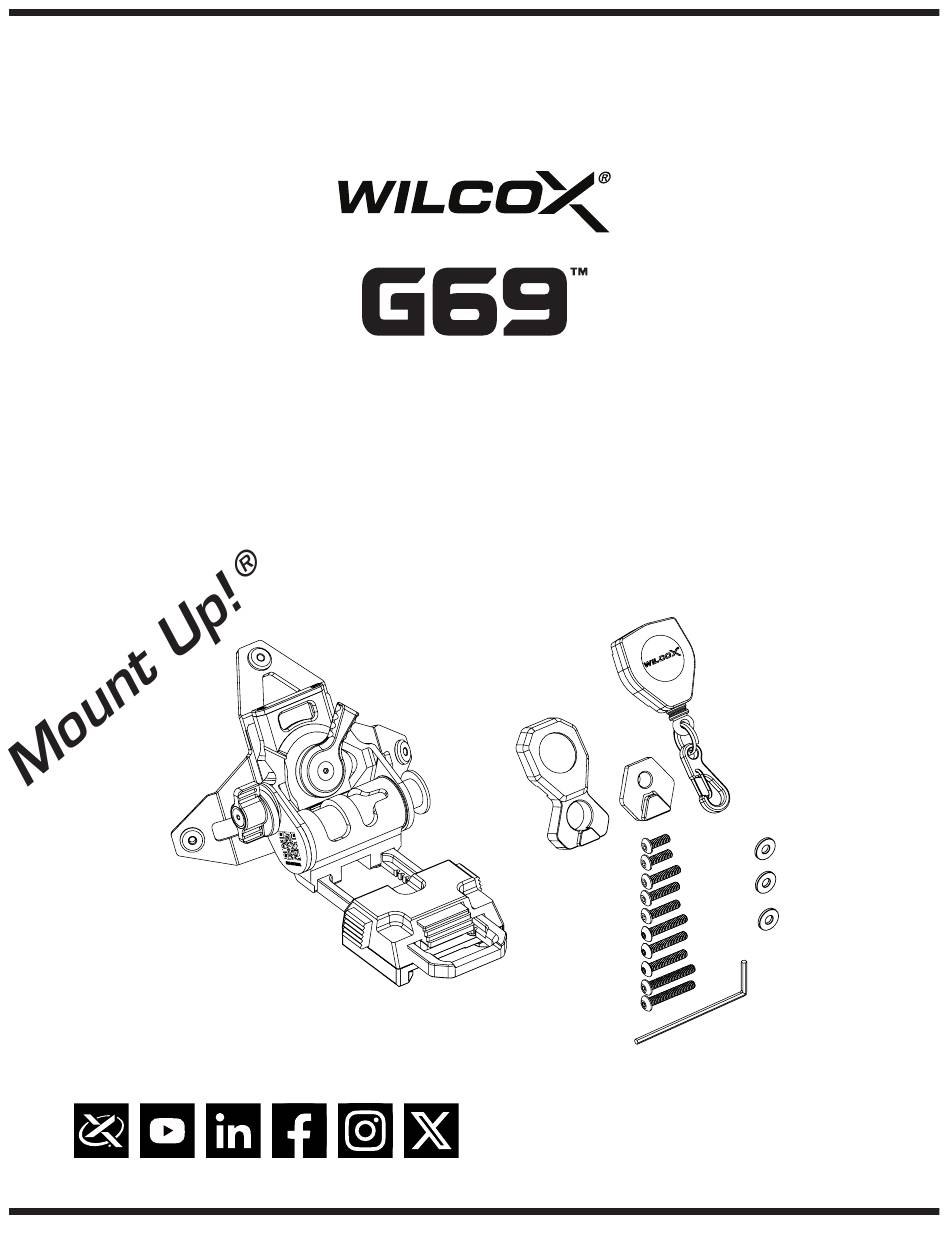

- Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE Extended Light Weight Fixed Mount PN: 28300G69 “The Most Trusted Helmet Mount in the World” CAGE: 004F1 EAR99 NLR: No Export License Required. 12 March, 2024 28300M24 Rev. A-5...
- Page 2 CONFIGURATION ATTACH NVG MOUNT - ATTACH THE G69 MOUNT TO A HELMET ATTACH MOUNT HELMET THICKNESS WILL DETERMINE SCREW LENGTH 1.) Insert a Screw (1) through a Washer (2) and the top mounting hole in the helmet from the inside.
- Page 3 ATTACH NVG MOUNT (CONTINUED) 4.) Insert Screws and Washers into the remaining holes and Mount from the inside. 5.) Thread the remaining Grommets onto the Screws and tighten all three Screws with the provided hex key. 6.) Gently pull on the Mount to make sure it is securely attached to helmet.
- Page 4 ATTACH/DETACH SHOE - ATTACHMENT OF AN NVG ATTACH SHOE Insert the Dovetail Shoe (3) into the Receiver (1) of the G69 Mount and push in until it clicks. Gently pull on the NVG to make sure it is secure. DETACH SHOE...
-
Page 5: Operation
OPERATION PIVOT - STOWING/DEPLOYING THE NVG Push the Flip Release Button (1) and position the Carriage in the stowed or operational position. Release the Button to lock in place. 130° OF ROTATIONAL TRAVEL UP/DOWN - ADJUSTMENT OF THE NVG Turn the Lock Lever (1) CCW ILLUSTRATED LOCKED to unlock. - Page 6 FORE/AFT - ADJUSTMENT OF THE NVG Simultaneously push both Buttons (1) in to move the Carriage forward or backward. Release the Buttons to lock. 1.35 IN. FORE/AFT TRAVEL TILT - ADJUSTMENT OF THE NVG Turn the Tilt Angle Adjustment Knob (1) CW to raise the angle or CCW to lower the angle of the NVG.
-
Page 7: Care And Maintenance
CARE AND MAINTENANCE Clean the Mount by flushing away dirt with fresh water and/or wiping down the assemblies with a clean, damp cloth. If used in a saltwater environment, flushing with fresh water and drying after use is recommended. If used extensively in a saltwater environment, lightly lubricate stainless steel parts as needed. - Page 8 One Wilcox Way Newington, NH 03801 USA The Wilcox product must be securely packaged to prevent damage, accompanied by your name, address, daytime phone number to contact you, and a description of the problem or work you wish to be performed.
- Page 9 WWW.WILCOXIND.COM For troubleshooting service questions, contact Wilcox between 8am and 5pm EST. © 2018-2024 Wilcox Industries Corp. All rights reserved. Printed in USA. US Patent 8,739,313. Wilcox , the Wilcox “X” logo, and “Mount Up! ” are federally registered trademarks of Wilcox ®...
