Wilcox DPAM 62101G02 Operation And Maintenance Instruction

Dual-powered aviation mount (accommodates anvis 6/9, f4949, f5050, and gpnvg goggles)
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATION AND MAINTENANCE
INSTRUCTIONS FOR THE
Dual-Powered Aviation Mount
(Accommodates ANVIS 6/9, F4949,
F5050, and GPNVG Goggles)
PN: 62101G02
"The Most Trusted Helmet Mount in the World"
CAGE: 004F1
EAR Controlled: Commerce license may be required for export or re-export.
30 April, 2024
62100M02
Rev. A-9

Advertisement

loading
Need help?

Need help?

Do you have a question about the DPAM 62101G02 and is the answer not in the manual?

Questions and answers

Related Manuals for Wilcox DPAM 62101G02

Summary of Contents for Wilcox DPAM 62101G02

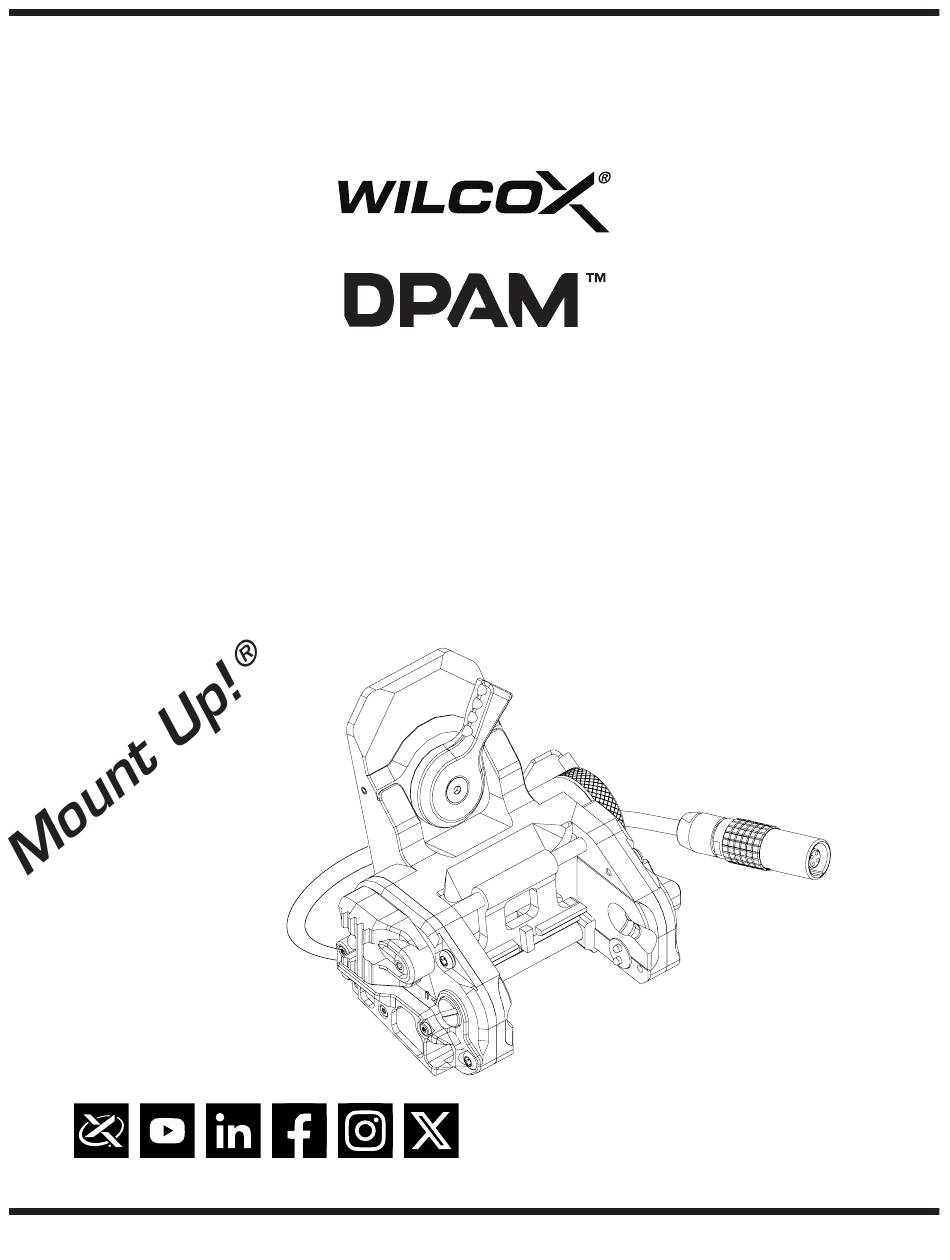

  • Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE Dual-Powered Aviation Mount (Accommodates ANVIS 6/9, F4949, F5050, and GPNVG Goggles) PN: 62101G02 “The Most Trusted Helmet Mount in the World” CAGE: 004F1 EAR Controlled: Commerce license may be required for export or re-export. 30 April, 2024 62100M02 Rev.
  • Page 2 CONFIGURATION ATTACH/DETACH NVG MOUNT - ATTACH/DETACH THE NVG MOUNT ATTACH THE NVG MOUNT Turn the Lock Lever (1) CCW so that the Mounting Pin (2) is straight up and down. Slide the Mounting Pin onto the mounting guide of the interface plate, making sure the Interface Plate Guides (3) align with the Mount channels.
  • Page 3 ATTACH AN NVG - ATTACH AN NVG TO THE MOUNT ATTACH AN NVG Position the NVG to 90°, then insert the Detents (1) into the Mounting Grooves (2). Push in until it clicks. Gently pull to make sure the NVG is secure. DETACH AN NVG Hold the NVG, push the Flip Release Button (3), pivot the...
  • Page 4 REPLACE BATTERY - REPLACE THE GSGM BATTERY Turn Battery Compartment Cover (1) CCW to open and remove the battery. Make sure the Battery Cap O-ring (2) is clean. Wipe free of debris. Insert the new battery positive (+) side first. Put the Battery Compartment Cover back on and turn CW until tight.

  • Page 5: Operation

    OPERATION PIVOT - STOWING/DEPLOYING THE NVG Push the Flip Release Button (1), then pivot the Mount to the stowed or deployed position and release the Button. UP/DOWN - ADJUSTMENT OF THE NVG Turn the Lever (1) CCW to unlock. Adjust the Mount height.
  • Page 6 SELECT POWER - SELECT INTERNAL OR EXTERNAL POWER Move the Guard (1) forward to change the power source. Move the Power Switch (2) up to select the internal battery or down to select external power. Move the Guard back to secure. 30 April, 2024 Rev.

  • Page 7: Care And Maintenance

    CARE AND MAINTENANCE Clean the Mount by flushing away dirt with fresh water and/or wiping down the assemblies with a clean, damp cloth. If used in a saltwater environment, flushing with fresh water and drying after use is recommended. If used extensively in a saltwater environment, lightly lubricate stainless steel parts as needed.
  • Page 8 PREFLIGHT TEST - PERFORM LOW BATTERY INDICATOR TEST The following pre-flight procedure is used to determine if the Low Battery Indicator is properly functioning on the DPAM. A proper test is performed when the Low Battery Sensor in the Battery Pack illuminates the Low Battery Indicator on the DPAM.
  • Page 9 PREFLIGHT TEST (CONTINUED) Step 7.) With the Remote Low Profile Battery Pack still having power from the battery side and low/no voltage in the empty side, check that the LED Indicator Light illuminates. 30 April, 2024 Rev. A-9...
  • Page 10 AFE TEST - RECOMMENDED AFE TEST FOR THE REMOTE LOW PROFILE BATTERY PACK This procedure utilizes Government/FAA Certified Equipment to test the operation of the Remote Low Profile Battery Pack. This process utilizes the Portable Digital NVD Test Kit (ANV-126A) and Inline Volt Test Adapter (ANV-126-047).
  • Page 11 AFE TEST (CONTINUED) Step 6.) Set the ANV-126A to “Battery Test”. Step 7.) Set the adjustment slide on the ANV-126-047 fully to the right. Step 8.) Turn on the ANV-126-047, and slowly move the adjustment slide from right to left. Step 9.) Note the voltage indicated on the ANV-126A when the NVG mount’s Low Battery Indicator activates.

  • Page 12: General Safety Warnings

    GENERAL SAFETY WARNINGS ▲ WARNING ▲ Lithium batteries contain sulfur dioxide gas under pressure and should be handled in the following manner: • If the Battery Compartment becomes hot to touch and you hear a hissing sound (i.e., battery venting) or smell irritating sulfur dioxide gas, IMMEDIATELY turn off the equipment.
  • Page 13 GENERAL SAFETY WARNINGS (CONTINUED) n CAUTION n Failure to follow the NVG Attach/Detach procedures correctly may result in damage to the NVG and Mount. 30 April, 2024 Rev. A-9...
  • Page 14 One Wilcox Way Newington, NH  03801 USA The Wilcox product must be securely packaged to prevent damage, accompanied by your name, address, daytime phone number to contact you, and a description of the problem or work you wish to be performed.
  • Page 15 For troubleshooting service questions, contact Wilcox between 8am and 5pm EST. © 2015-2024 Wilcox Industries Corp. All rights reserved. Printed in USA. Wilcox’s line of NVG Mounting Systems is Patent Pending. Wilcox , the Wilcox “X” logo, and “Mount Up! ”...
