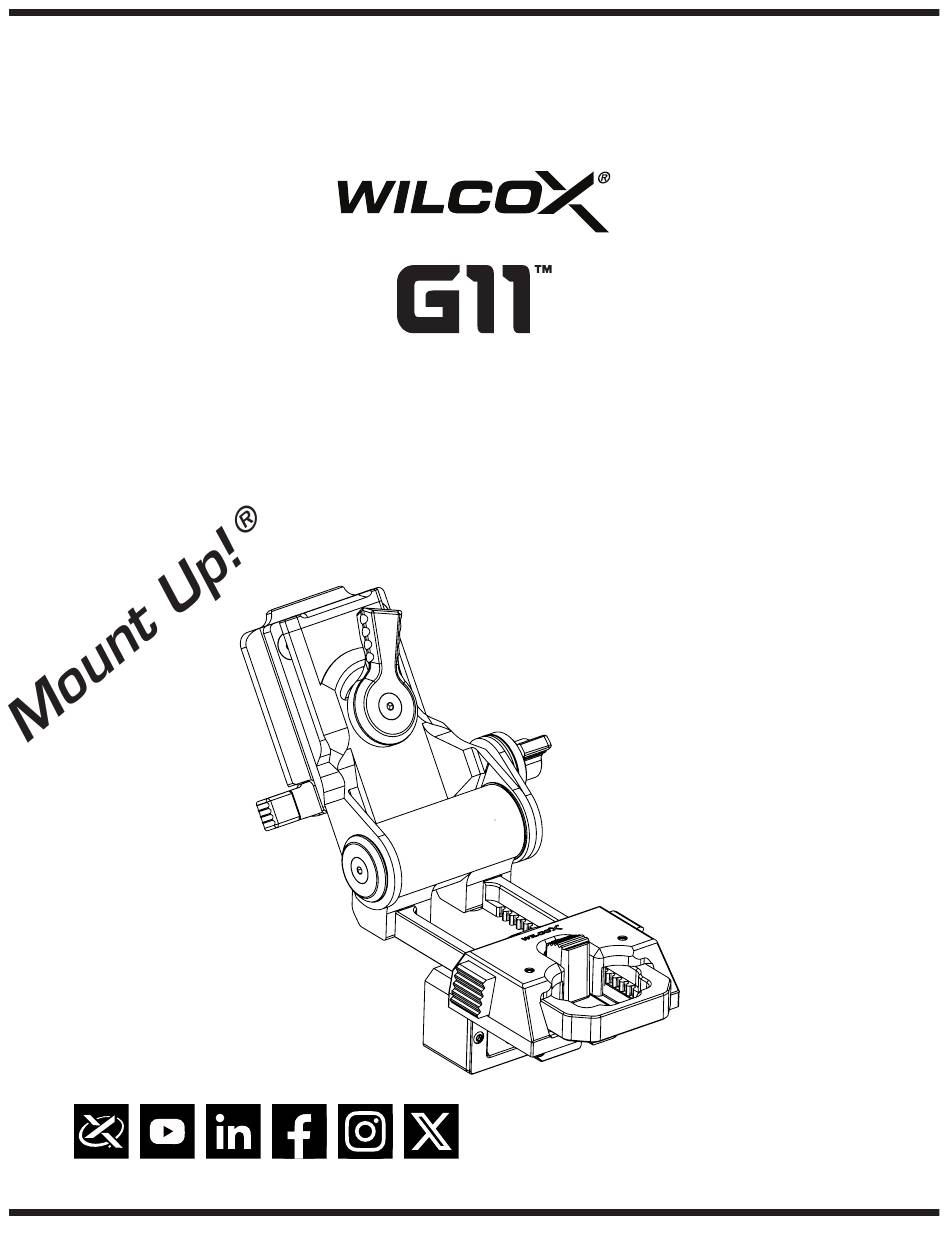

- Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE Non-Breakaway Horn Interface Mount “The Most Trusted Helmet Mount in the World” CAGE: 004F1 EAR99 NLR: No Export License Required. 7 December, 2023 28300M16 Rev. A-3...
- Page 2 CONFIGURATION ATTACH/DETACH - ATTACH/DETACH THE G11 MOUNT TO/FROM THE WILCOX FAMILY OF SHROUDS WILCOX ATTACH MOUNT ONE-HOLE SHROUD DEPICTED To attach the helmet mount, first press (1) to allow the release mechanism to accept the mount into the shroud. Position the mount on an angle to insert the interface lip (2) into the interface receiver (3).
- Page 3 ATTACH/DETACH (CONTINUED) WILCOX THREE-HOLE SHROUD DEPICTED Once the lip is fully engaged into the receiver, rotate the mount into the pocket (4). Once seated, press (5) to lock the helmet mount to the shroud. DETACH MOUNT Follow the attachment instructions in reverse.
- Page 4 ATTACH/DETACH HORN - ATTACHMENT OF AN NVG ATTACH HORN To attach the NVG, insert the Horn Interface (1) into the receiver (2) of the G11 Mount and push inward until you hear a click. Gently pull on the NVG to ensure that it is securely mounted.
-
Page 5: Operation
OPERATION PIVOT - STOWING AND DEPLOYING THE NVG Push upward or pull downward on the Carriage (1) to utilize force-to-overcome stowing and deploying. 110° OF ROTATIONAL TRAVEL UP/DOWN - ADJUSTMENT OF THE NVG Placing the Lock Lever (1) in ILLUSTRATED LOCKED the unlocked position allows for vertical adjustment up and... - Page 6 FORE/AFT - ADJUSTMENT OF THE NVG Simultaneously depress both buttons (1) and slide the Carriage to move forward or aft. Release buttons to lock. < 1.6 IN. FORE/AFT TRAVEL TILT - ADJUSTMENT OF THE NVG Rotate the Tile Angle Adjustment Knob (1) CCW to raise angle or CW to lower the angle.
-
Page 7: Care And Maintenance
Mount, and NVG Shoe to work as one system. Any off-brand shrouds could affect the rigidity, thereby affecting the stability of the goggle. An extensive amount of effort is put into this, and Wilcox cannot honor a warranty claim if an off-brand shroud is used with our mount. - Page 8 One Wilcox Way Newington, NH 03801 USA The Wilcox product must be securely packaged to prevent damage, accompanied by your name, address, daytime phone number to contact you, and a description of the problem or work you wish to be performed.
- Page 9 For troubleshooting service questions, contact Wilcox between 8am and 5pm EST. © 2011-2023 Wilcox Industries Corp. All rights reserved. Printed in USA. US Patent 9,775,395. Wilcox , the Wilcox “X” logo and “Mount Up!” are federally registered trademarks of Wilcox ®...
